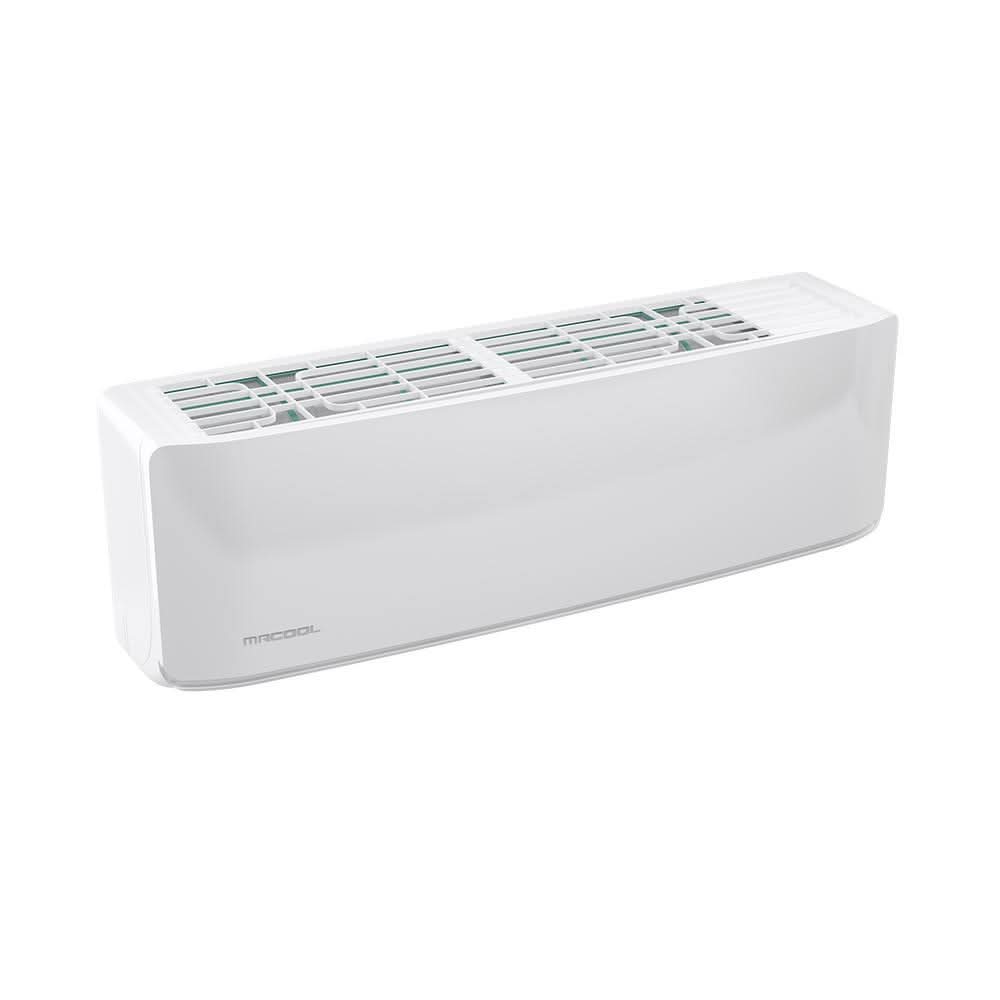

The newly designed 4th generation Advantage Series 36,000 BTU, with improved efficiency ratings of 17.5 SEER, delivers high performance comfort from the moment it's activated. And its great price makes it a consumer favorite that's tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new Smart HVAC wifi control module that features an easier setup process, improved functionality, and works with amazon Alexa and Google assistant. This unit is designed to heat and cool a single 1050-1550 sq ft room. This product is shipped in two boxes.
17.5 SEER2 230V with variable speed DC inverter compressor technology that cuts operating costs for heating and cooling
Designed to heat and cool a single 1050-1550 sq ft room
1-Year compressor and 2-year parts warranty when registered and when installed by a licensed professional
New Smart HVAC wifi app for apple and android smart devices works with amazon Alexa and Google assistant
16 ft install kit includes: copper tubing, 6 ft drain hose, wall sleeve
Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
Low ambient cooling: cooling down to 5F - this feature makes the Mrcool Advantage the ideal system for server rooms, greenhouses, and any other application that requires cooling all year
Equipment should be sized/installed by a qualified professional
SPECIFICATION & DIMENSIONS
General
Warranty
2-Year Limited
Series Name
Advantage
Requires HVAC Professional
YES
Type
Mini split heat Pump and AC
Dimensions
Air Handler Depth (Inches)
11.1
Height (Inches)
31.89
Air Handler Height (Inches)
14.25
Line-set Connection Size
3/8-in x 5/8-in
Air Handler Width (Inches)
49.57
Line-set Length
16-ft
Compressor Depth (Inches)
16.14
Maximum Coverage Area (Sq. Feet)
1550
Compressor Height (Inches)
31.89
Weight (lbs.)
150.13
Compressor Width (Inches)
37.24
Width (Inches)
37.24
Cord Length (Feet)
16.0
Zone Capacity
Single
Depth (Inches)
16.14
WHAT'S INCLUDED
Remote Control
Communication Wire
Wall Sleeve
Line Set
Condenser
Air Handler
OPTIONS & ACCESSORIES
MRCOOL Condenser Wall Bracket for 24K & 36K BTU Ductless Split Systems (MB440A)
$124.00
Disconnect Switch and Electrical Whip with #8 AWG
$98.87
MRCOOL LineGuard 4.5-Inch 16-Piece Complete Line Set Cover Kit for Ductless Mini-Split or Central System (MLG450)
$133.43
Elite Condenser Pad - 18 In. x 38 In. x 3 In. For Outside Ground Placement of the MRCOOL DIY Condenser
