DIY - Line Set Extension Kit

50' Install Kit for 24k/36k with cable for Gen 4 DIY or Easy Pro Systems - 50 Foot Pre-Filled Line Set With Wire and 2 Couplers

50' Install Kit for 24k/36k with cable for Gen 4 DIY or Easy Pro Systems - 50 Foot Pre-Filled Line Set With Wire and 2 Couplers

$989.75 USD
$1,315.88 USD $989.75 USD
Save $326.13 Sold out
Shipping calculated at checkout.

SKUMRCOOL Coupler Kit for DIY Single Zone and Multizone 24K, 36K & 48K

Type50' Install Kit With Couplers & Wire

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

Call Us Chat Now Design Your Own Mini Split Tool

PRODUCT DESCRIPTION

MRCOOL 50' Line Set Extension Kit for DIY Mini Split Systems

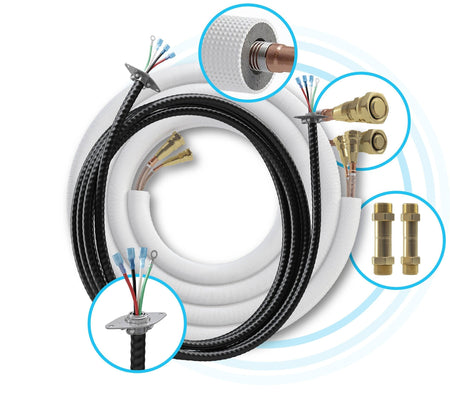

When installing a MRCOOL Mini Split System at a distance greater than the standard 25 feet, this 50' Line Set Extension Kit is exactly what you need for longer installations. This kit allows you to extend your system up to 75 feet, ensuring a secure and efficient setup. It includes a 50-foot pre-charged line set, couplers, and an extended control cable, making it easy to extend the distance between your air handler and condenser.

Key Features:

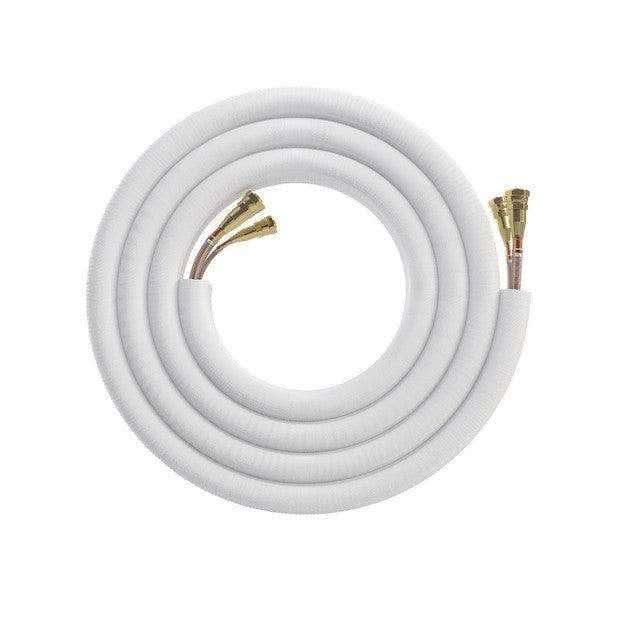

  • 50' Pre-Charged Line Set: Adds an additional 50 feet to your current setup, extending the standard 25-foot line to a total of 75 feet.
  • Couplers Included: Comes with DIYCOUPLER-38 and DIYCOUPLER-58 to connect the new 50-foot line set to the original 25-foot set for a seamless extension.
  • 75' MC5 Pro Cable: Provides a continuous power and control connection between the indoor and outdoor units, replacing the pre-installed 25-foot wire.

Installation Process:

  1. Remove the Pre-Attached Cable: Disconnect the existing 25-foot cable or wire from your indoor unit.
  2. Install the 75' MC5 Pro Cable: Replace the shorter cable with the extended 75-foot cable included in the kit for uninterrupted power and communication.
  3. Connect Line Sets: Use the provided couplers to join the 50-foot line set to the existing 25-foot set, extending the total length to 75 feet.

Important Considerations:

  • Maximum Length: Ensure the total line length from air handler to condenser does not exceed 75 feet per zone for optimal performance.
  • Handling Excess Cable: Coil any excess cable during installation—do not cut it—to maintain the integrity of the system.

Compatibility: This kit is designed for use with 24,000 BTU and 36,000 BTU MRCOOL indoor wall units, making it ideal for installations requiring extended distances between indoor and outdoor units.

Extend your MRCOOL Mini Split System with ease using this 50' Line Set Extension Kit, designed for a hassle-free installation and optimized for longer distance setups.
