MRCOOL®

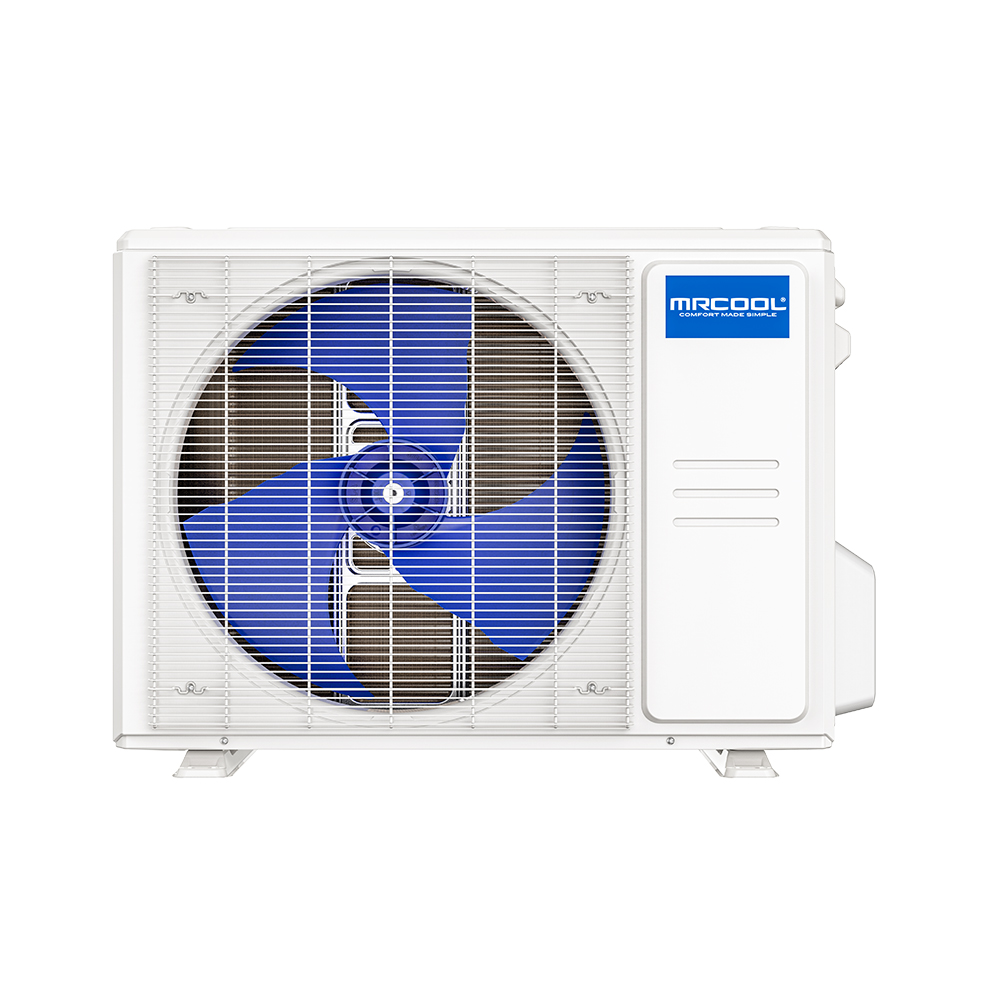

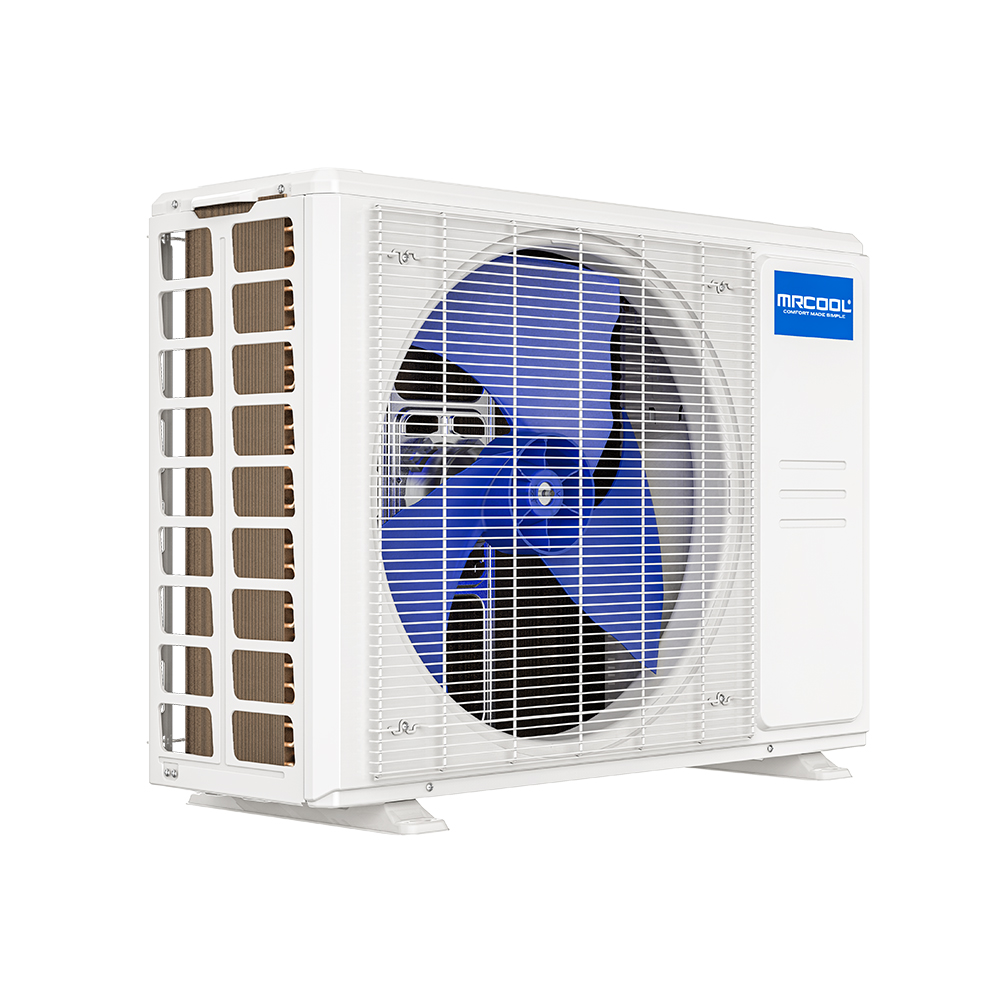

MRCOOL DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen, -22°F Heating, R-454B, 230V QuickConnect

MRCOOL DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen, -22°F Heating, R-454B, 230V QuickConnect

Regular price $1,843.00 USD
Sale price $1,843.00 USD Regular price
Sold out
Shipping calculated at checkout.

SKUDIYHH-12-HP-C-230D25-O

TypeDIY Hyper Heat

Refrigerant Type: R-454B

✅ This item is in stock!

More than 30 available

Estimated Delivery: December 16 – December 18

Based on order date & typical delivery times.
• Orders Typically ship within 2 business days

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

MRCOOL® DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen DIY QuickConnect® (230V)

New for 2025 – 12K Hyper Heat DIY Condenser with Pre-Charged 25 ft Line Set

The MRCOOL® DIYHH-12-HP-C-230D25-O is a next-generation 5th Gen 12,000 BTU Hyper Heat DIY condenser designed to deliver high-efficiency heating and cooling in spaces up to 500 sq. ft.. Built for true cold-weather performance, this Hyper Heat mini split maintains reliable output down to -22°F and uses inverter technology for quiet, steady comfort instead of loud single-stage cycling.

Powered by environmentally friendly R-454B refrigerant, the DIYHH-12 condenser improves thermal efficiency and lowers greenhouse impact compared to older R-410A systems. Installation is simple thanks to the included 25 ft pre-charged QuickConnect® line set, which arrives sealed, factory-vacuumed, and filled — no gauges, pumps, nitrogen, or HVAC licensing required.

Whether you pair it with a MRCOOL DIY wall-mounted air handler or an OuttaSight® ceiling cassette (230V models), this condenser becomes a full smart mini split system with the MRCOOL SmartHVAC™ app, Amazon Alexa, and Google Assistant voice control.

IMPORTANT: This is a 208/230V condenser. It cannot be used with 115V DIY air handlers.


Key Benefits

  • 12,000 BTU Hyper Heat condenser for spaces up to 500 sq. ft.
  • Reliable heating performance down to -22°F
  • 5th Gen inverter technology for smooth, quiet operation
  • Uses R-454B low-GWP refrigerant for improved efficiency and reduced environmental impact
  • 25 ft pre-charged QuickConnect® line set — factory-vacuumed and sealed
  • No vacuum pump, gauges, nitrogen, or EPA license required
  • Compatible with DIY wall mount and OuttaSight® ceiling cassette indoor units (230V)
  • Smart control via MRCOOL SmartHVAC™ app, Alexa, and Google Assistant (with compatible indoor unit)
  • Gold Fin® corrosion-resistant coating for inland and coastal installs

What's Included

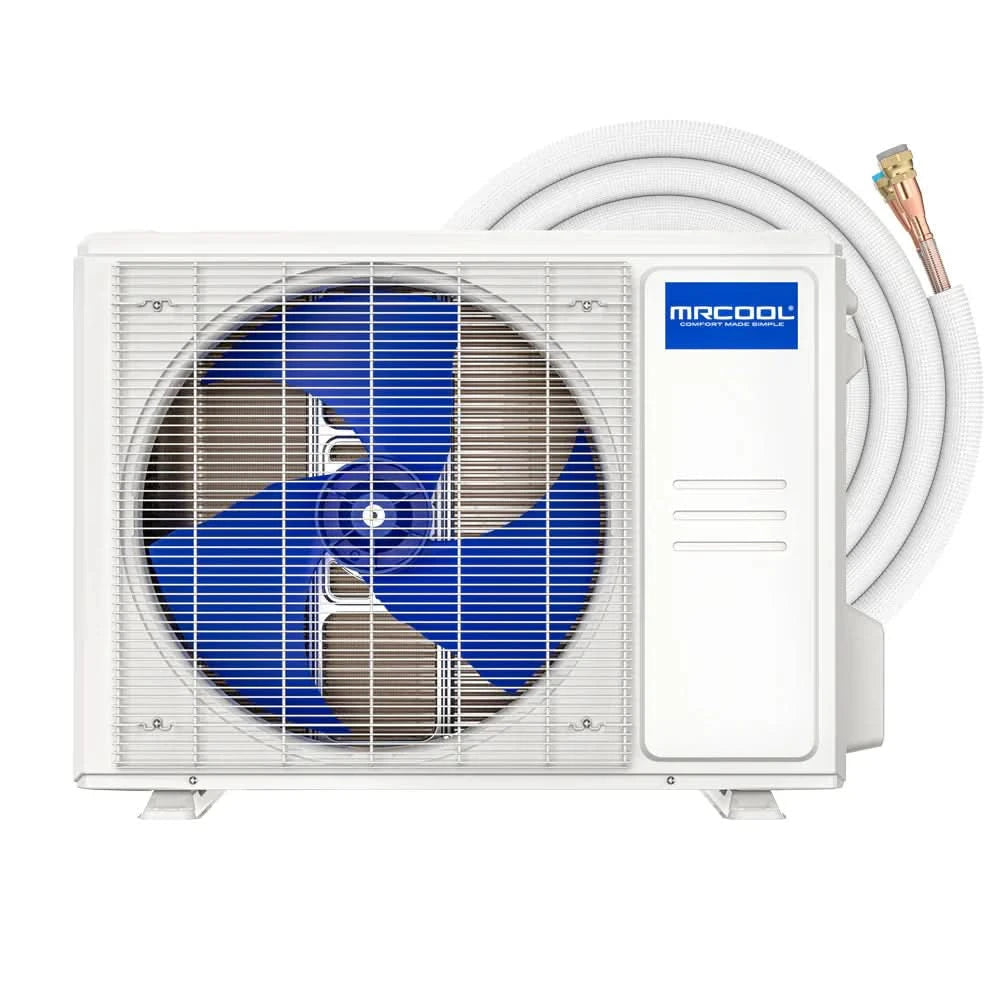

  • DIYHH-12-HP-C-230D25-O — 12K Hyper Heat Outdoor Condenser
  • 25 ft pre-charged R-454B QuickConnect® line set
  • Installation hardware & documentation

No vacuuming or refrigerant tools required.

Compatible Indoor Units (Sold Separately)

  • MRCOOL DIY-12-HP-WMAH-230D25-O Wall Mount Air Handler
  • MRCOOL DIYCASSETTE12HP-230D25-O OuttaSight® Ceiling Cassette

NOTE: This 12K Hyper Heat condenser is 208/230V only and will not work with 115V DIY air handlers.


Feature Highlights

  • Hyper Heat operation down to -22°F
  • Inverter-driven rotary compressor for high efficiency and low noise
  • R-454B next-generation refrigerant
  • Factory-sealed QuickConnect® line set — no field charging
  • DIY-friendly installation with basic tools
  • Gold Fin® condenser coil for long-term corrosion resistance
  • Energy-efficient performance for year-round heating and cooling

Specifications

Performance
BTU Capacity 12,000 BTU
Coverage Area Up to approximately 500 sq. ft.
Operating Range Heats down to -22°F (Hyper Heat)
Compressor Type Inverter Rotary


Electrical
Voltage 208/230V
Phase / Frequency 1 Phase, 60 Hz
Minimum Circuit Ampacity (MCA) 15 A
Max Fuse / Breaker 15 A (double pole)


Refrigeration & Piping
Refrigerant R-454B
Line Set Included 25 ft QuickConnect® pre-charged line set
Liquid Line Size 1/4"
Suction Line Size 3/8"


Dimensions & Weight
Unit Width 31.69 in
Unit Height 21.81 in
Unit Depth 12.99 in
Unit Weight Approx. 72.31 lbs

Smart Controls (with Compatible Indoor Unit)

  • MRCOOL SmartHVAC™ App (iOS & Android)
  • Amazon Alexa & Google Assistant integration
  • Scheduling, remote access, and smart comfort modes
