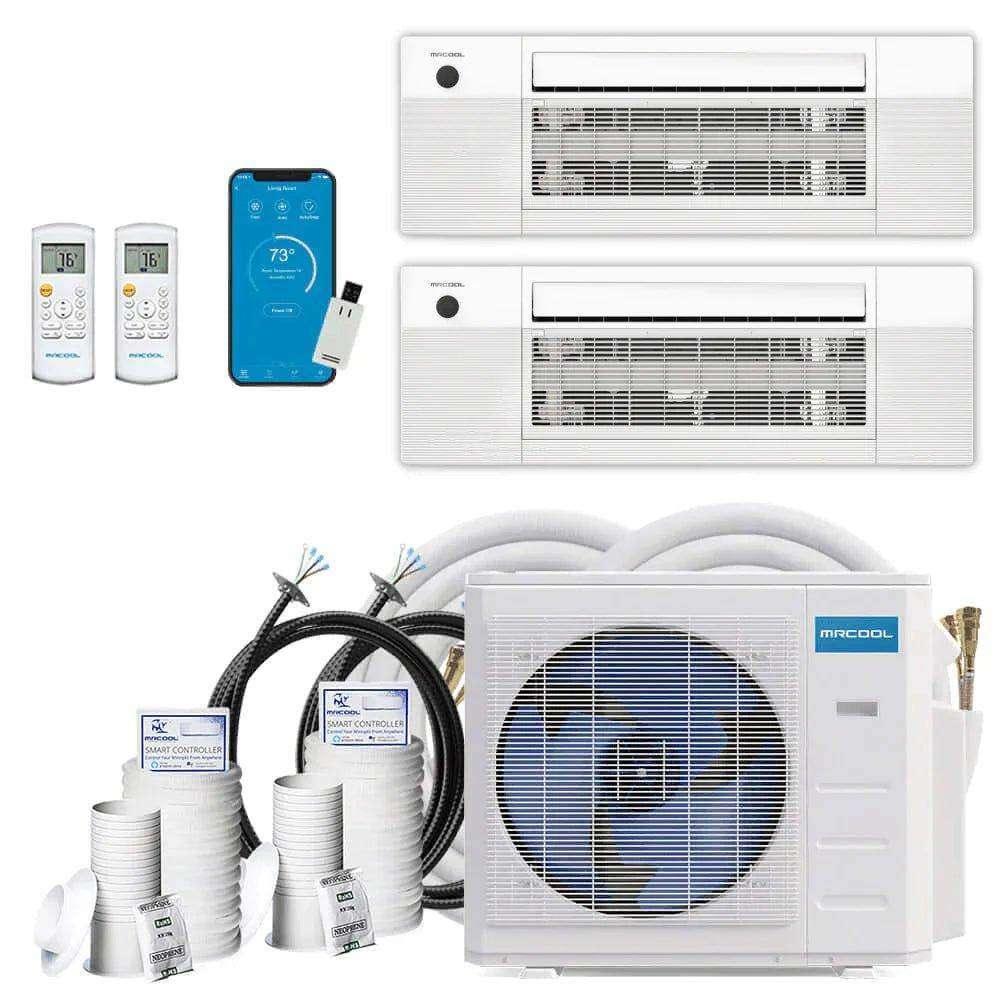

MRCOOL DIY Multi-Zone 4th Gen 27,000 BTU Dual Zone Ductless Mini Split with Ceiling Cassettes (9K + 12K)
The MRCOOL DIY 4th Gen 27K BTU Dual Zone Mini Split System offers efficient heating and cooling with a discreet ceiling cassette design. Featuring two ceiling cassette air handlers (9K and 12K BTU), this system provides customized comfort for two rooms, making it a versatile choice for homes, offices, or remodels. With DIY installation and no need for specialized tools, this system ensures quick, affordable, and reliable climate control.
Key Features
1. Energy-Efficient Performance
-
Up to 22 SEER Efficiency Rating: Reduces energy costs without compromising comfort.
-
Gold Fin® Technology: Corrosion-resistant condenser ensures durability, even in coastal areas.
-
Eco-Friendly R-410A Refrigerant: Contributes to environmentally responsible operation.
2. Discreet Ceiling Cassette Design
-
Low-Profile Installation: Installs seamlessly between standard 16" joists, including pre-manufactured I-joists.
-
Out of Sight: Provides discreet heating and cooling without occupying wall or floor space.
3. Advanced Climate Control
-
Multiple Modes: Includes COOL, HEAT, AUTO, DRY, and SLEEP for customizable comfort.
-
Directional Airflow: Ensures even air distribution throughout each room.
-
Smart Control Compatibility: Operate via the MRCOOL Smart Controller app, Amazon Alexa, or Google Home.
4. DIY Installation
-
Pre-Charged Quick Connect® Line Sets: Simplifies setup without requiring HVAC technicians.
-
No-Vac® Coupler: Extends line sets for flexible installation.
5. Reliable Operation
-
All-Season Performance: Operates efficiently in extreme temperatures, from -13°F for heating to 122°F for cooling.
-
Silent Operation: Quiet design ensures a peaceful indoor environment.
6. Long-Term Protection
-
Lifetime Compressor Warranty: Register with the MRCOOL Care Program for additional peace of mind.
-
Standard Warranty: Includes a 7-year compressor warranty and 5-year parts warranty.
Specifications

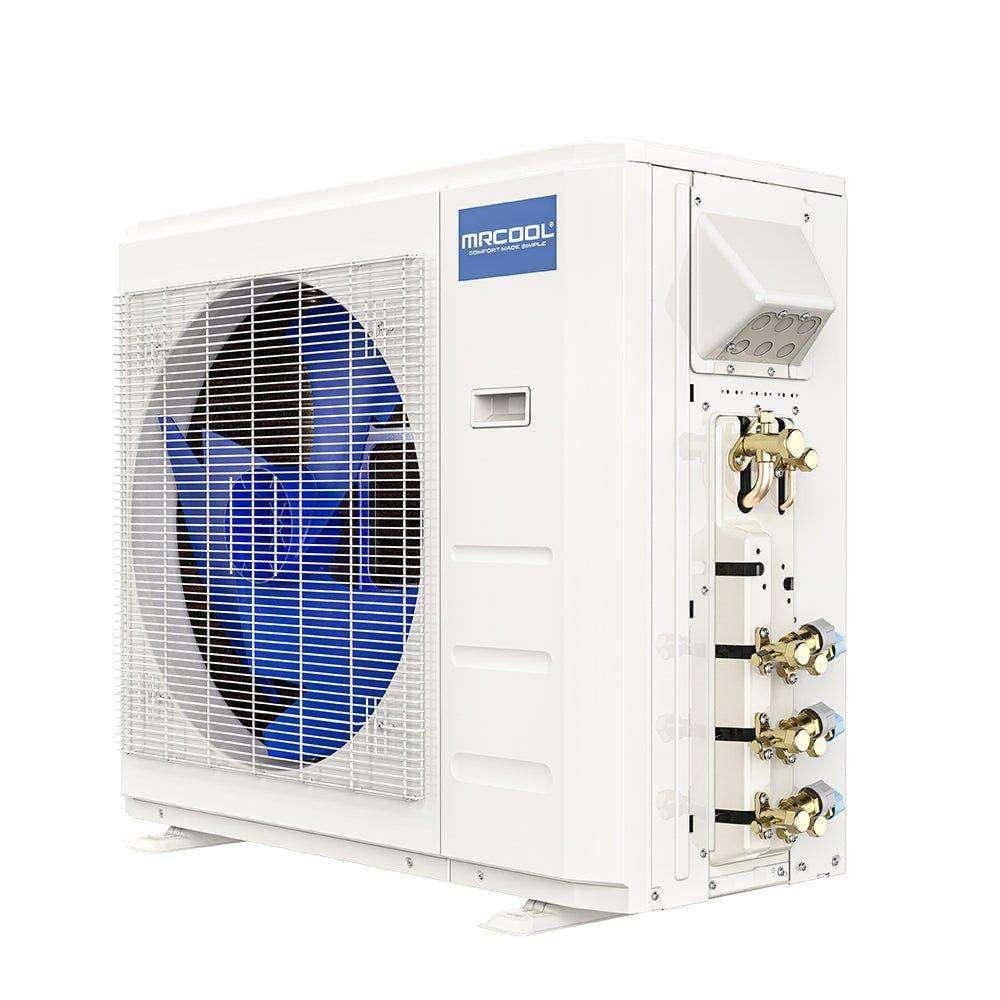

Condenser
-
Cooling/Heating Capacity: 27,000 BTU
-
Efficiency Ratings: SEER: 22 | EER: 12.5 | HSPF: 10.6/8.6
-
Operating Temperature Range:
- Cooling: 5°F ~ 122°F
- Heating: -13°F ~ 75.2°F
-
Voltage Requirements: 208V-230V/60HZ/18-25A
-
Dimensions: 35.04"W x 13.46"D x 26.50"H
-
Noise Level: 59 dBA
-
Maximum Line Set Length: 98.42 ft.
-
Warranty: Limited Lifetime Compressor (with registration), 7-year compressor, 5-year parts

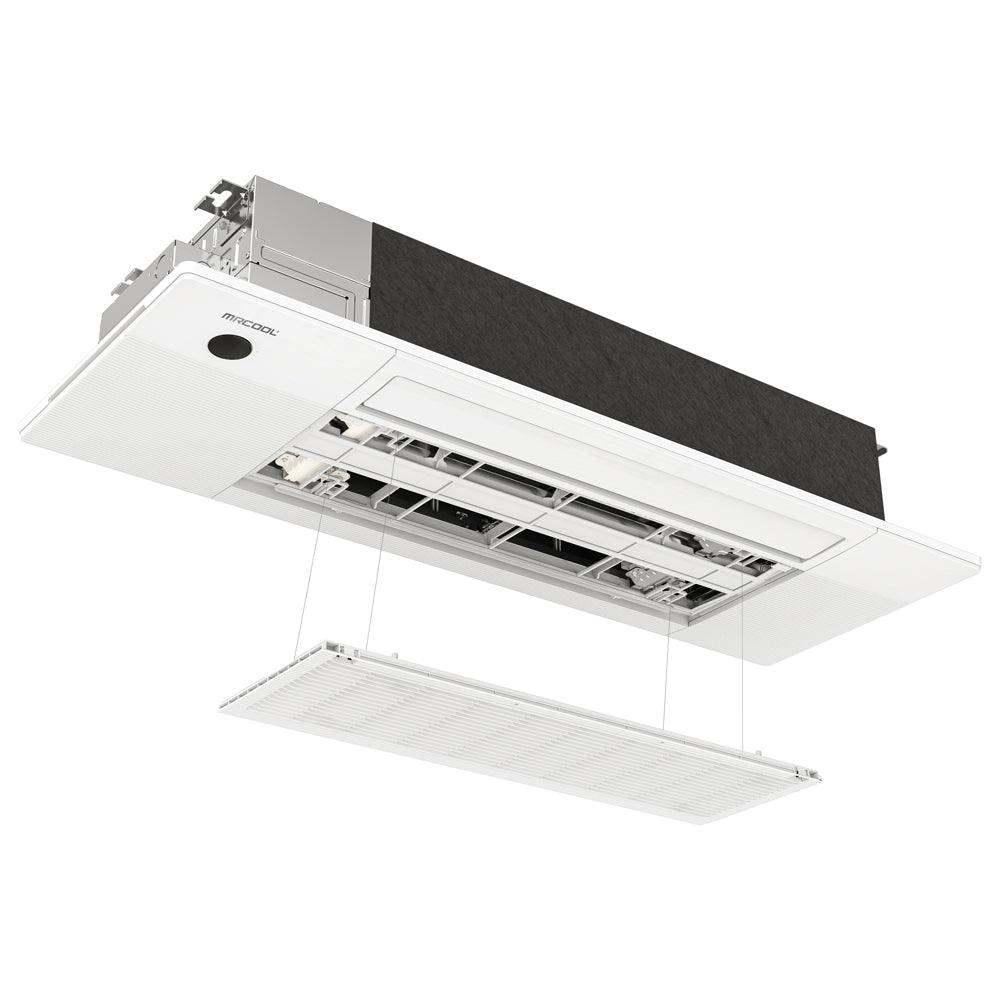

Ceiling Cassette Air Handlers
-
9K BTU Air Handler:
-
Coverage Area: Up to 375 sq. ft.
-
Modes: COOL, HEAT, AUTO, DRY, FAN-ONLY, SLEEP
-
Dimensions: 31.57"W x 7.44"D x 11.69"H
-
Warranty: 5-year parts
-
12K BTU Air Handler:
-
Coverage Area: Up to 500 sq. ft.
-
Modes: COOL, HEAT, AUTO, DRY, FAN-ONLY, SLEEP
-
Dimensions: 31.57"W x 7.44"D x 11.69"H
-
Warranty: 5-year parts

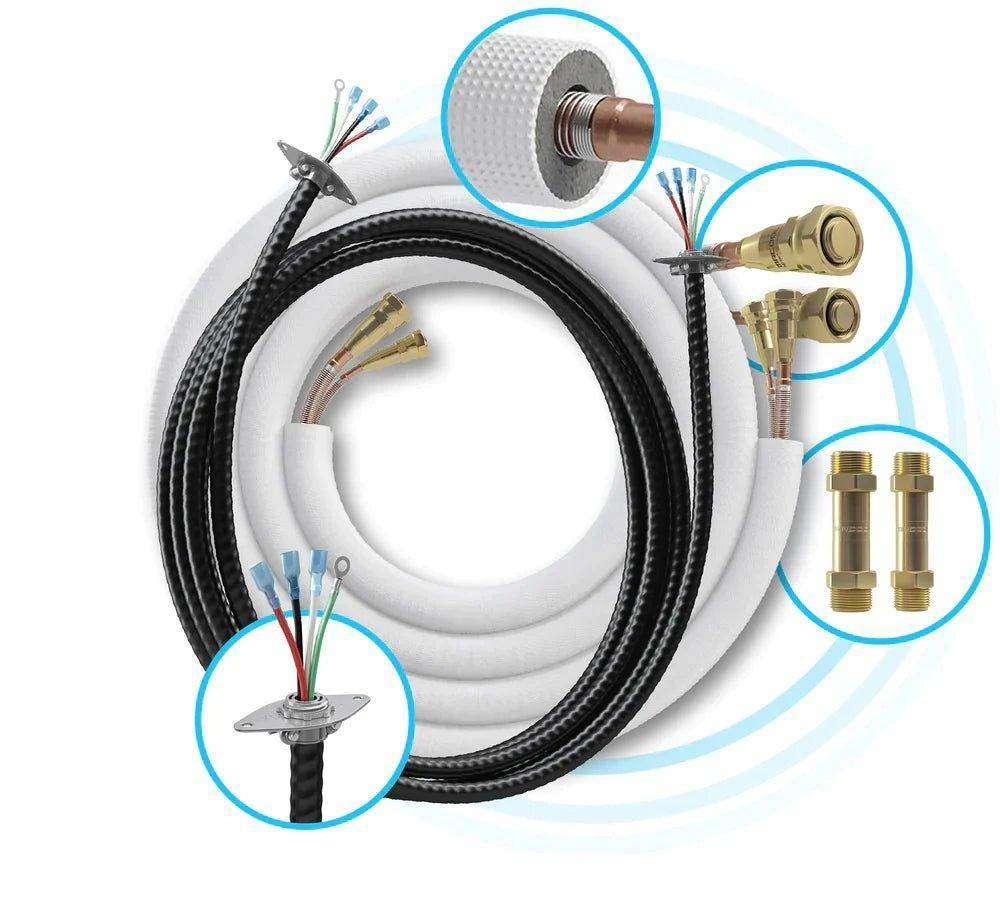

Pre-Charged Line Sets
-
Length Options: 16 ft., 25 ft., 35 ft., or 50 ft.
-
Refrigerant: Pre-charged with R-410A for DIY installation.
Why Choose the MRCOOL DIY 27K BTU 2-Zone System?
-
Customized Comfort: Tailor the temperature for two separate zones, ideal for bedrooms, offices, or living spaces.
-
Discreet and Stylish: Ceiling cassettes blend seamlessly into any room for an unobtrusive appearance.
-
Cost Savings: Save on professional installation with pre-charged line sets and DIY-friendly components.
-
Energy Efficiency: Reduce energy bills while maintaining consistent, year-round comfort.
-
Smart Technology: Monitor and control the system remotely using the MRCOOL Smart Controller app or voice-activated devices.
Perfect Applications
-
Homes: Ideal for managing the climate in multiple rooms or open-plan spaces.
-
Offices: Create customized comfort for conference rooms or work areas.
-
Renovations and New Builds: Flexible for retrofits or integrating HVAC into new construction projects.
Order Now
The MRCOOL DIY Multi-Zone 4th Gen 27K BTU Mini Split System combines efficiency, style, and DIY convenience to deliver premium climate control. Transform your living or work environment with this user-friendly, energy-efficient system.
Order today from MRCOOL DIY Direct and enjoy reliable, year-round comfort!
