PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The MRCOOL DIY Multi-Zone 27K BTU Ductless Mini Split System is an excellent solution for efficient and convenient home heating and cooling. This 4th Generation system is designed to be user-friendly, enabling DIY installation without professional help. With three ceiling cassette air handlers (9K + 9K + 12K BTU), this system covers multiple zones in your home, making it ideal for heating or cooling three separate rooms.
Key Features:
-
Ceiling Cassettes: The included 9K and 12K BTU cassettes are installed discreetly in the ceiling and provide quiet and efficient heating and cooling. With an easy-to-install design, the cassettes can fit between joists on a 16-inch center, making them compatible with various home construction types, from new builds to retrofits.
-

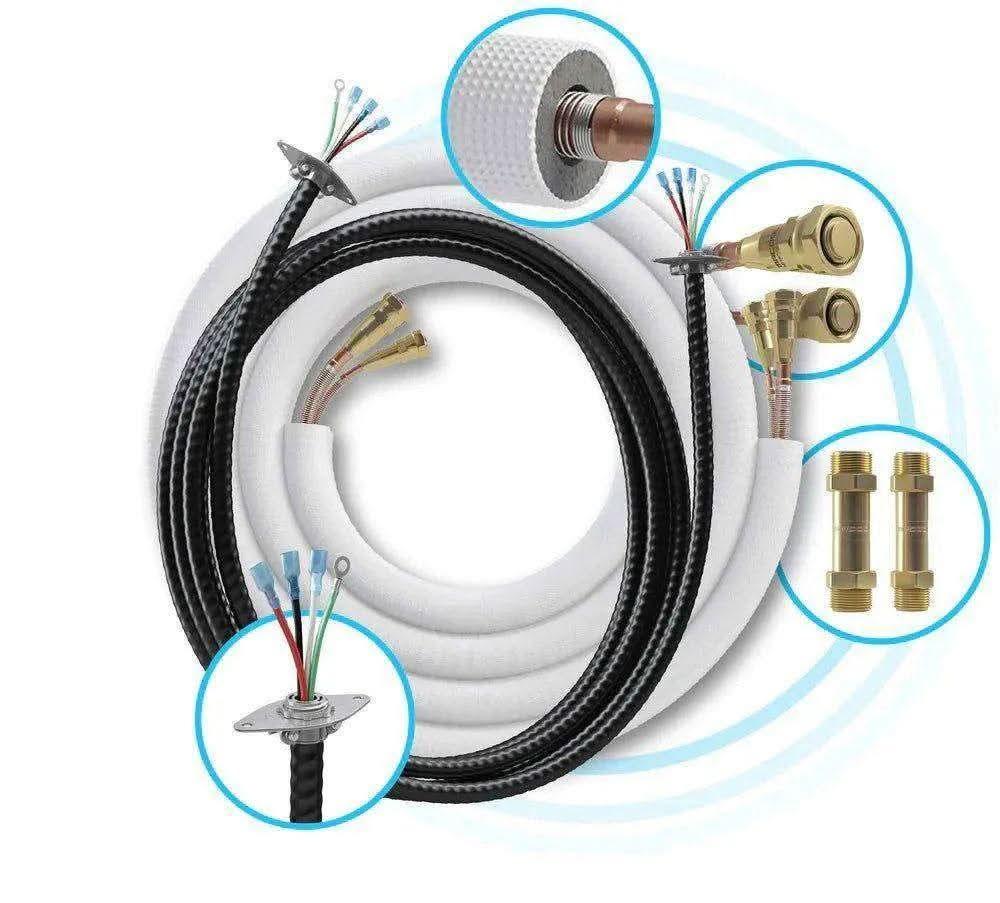

No-Vac® Quick Connect®: The system comes with pre-charged Quick Connect® line sets, eliminating the need for vacuuming or specialized tools, making installation even easier for DIY enthusiasts.
-
Efficient Performance: With a 27,000 BTU capacity and a SEER rating of 22, this system is highly energy efficient. The multi-zone design enables independent control of each air handler, ensuring precise temperature regulation for each space.
-
Heating and Cooling: This system doesn't just cool in the summer. The heat pump design allows for effective heating, even when outdoor temperatures drop to as low as 5°F.
-
Smart Home Integration: The MRCOOL DIY Multi-Zone system is compatible with Amazon Alexa and Google Home, giving you full control through voice commands. It also integrates with the MRCOOL Smart Controller mobile app, allowing you to manage the system from your smartphone.
-
Maintenance-Friendly: The system features a filter panel elevation function that lowers the filter for easy maintenance. Additionally, alerts for refrigerant leaks and air filter cleaning keep you on top of maintenance without hassle.
-
Warranty: Purchases are protected by a 7-year compressor warranty and 5-year parts warranty. With proper registration in the MRCOOL Care Program, you can extend the compressor warranty to a lifetime warranty.
Why Choose This System?
This MRCOOL DIY Multi-Zone 27K BTU system is perfect for those who want to save on installation costs by doing it themselves. Its flexibility in setup—mixing ceiling cassettes with wall-mounted units—makes it an excellent choice for a variety of home layouts. The advanced smart home features and multiple operating modes ensure that you get a modern and convenient heating and cooling system.
MRCOOL DIY Direct ensures that customers have access to authentic MRCOOL systems with guaranteed support and warranties, making it the USA’s most trusted MRCOOL dealer.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-410A Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Low Ambient Cooling
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY Multi-Zone 4th Gen
|
| MODEL |
DIY-MULTI2-27HP230C
|
| GTIN | |
| UPC | |
| UNIT TYPE | Mini Split |
| SHORT DESCRIPTION |
MrCool DIY 4th Gen Multi-Zone 2-Zone Condenser
|
| LONG DESCRIPTION |
The 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 22 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.
|
| BULLET 1 |
Up to 22 SEER
|
| BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
|
| BULLET 3 |
Energy Efficient DC Inverter
|
| BULLET 4 |
R-410A environmentally friendly refrigerant
|
| BULLET 5 |
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
|
| SEER | 22 |
| EER | 12.5 |
| HSPF |
hspf4/hspf5 : 10.6/8.6
|
| CFM | 1764.71 |
| COOLING CAPACITY | 27000 BTU |
| HEATING CAPACITY | 27000 BTU |
| VOLTAGE | 208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 25 A |
| MIN CIRCUIT AMPACITY | 18 A |
| COLOR | White |
| COLOR FAMILY | White |
| ZONE CAPACITY | 2 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME | 65.26 oz |
| DECIBEL RATING | 59 dBA |
| INVERTER | Yes |
| MIN AMBIENT COOL | 5F ~ 122F |
| MIN AMBIENT HEAT | -13F ~ 75.2F |
| MAX LINESET LENGTH |
98.42 ft TOTAL
|
| LIQUID LINE SIZE | 1/4in |
| SUCTION LINE SIZE | 3/8in |
| COMPRESSOR MOTOR TYPE | Twin - Rotary |
| CONDENSER FAN MOTOR RPM | 750/600/500 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REGISTERED WARRANTY |
Limited Lifetime Compressor
|
| BASE WARRANTY |
5-year Parts/7-year Compressor
|
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor
|
| BASE COMPRESSOR WARRANTY |
7-year Compressor
|
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH | 13.46 in |
| NET HEIGHT | 26.50 in |
| NET WIDTH | 35.04 in |
| NET WEIGHT | 100.53 lbs |
| GROSS DEPTH | 17.64 in |
| GROSS HEIGHT | 29.33 in |
| GROSS WIDTH | 40.94 in |
| GROSS WEIGHT | 111.11 lbs |
