6 Zone Bundle (New for 2025)

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 9K + 12K + 12K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 9K + 12K + 12K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

Regular price $7,714.00 USD
Regular price $9,487.99 USD Sale price $7,714.00 USD
Save $1,773.99 Sold out
Shipping calculated at checkout.

SKUDIYM655090909121218

Type55K

Refrigerant Type: R-454B

✅ This item is in stock!

More than 30 available

Estimated Delivery: November 25 – November 27

Based on order date & typical delivery times.
• Orders Typically ship within 2 business days

Don't forget your pre-charged line sets.
Each zone/air handler will need its own length — click here to select.
16'25'35'41'50'60'66'75'

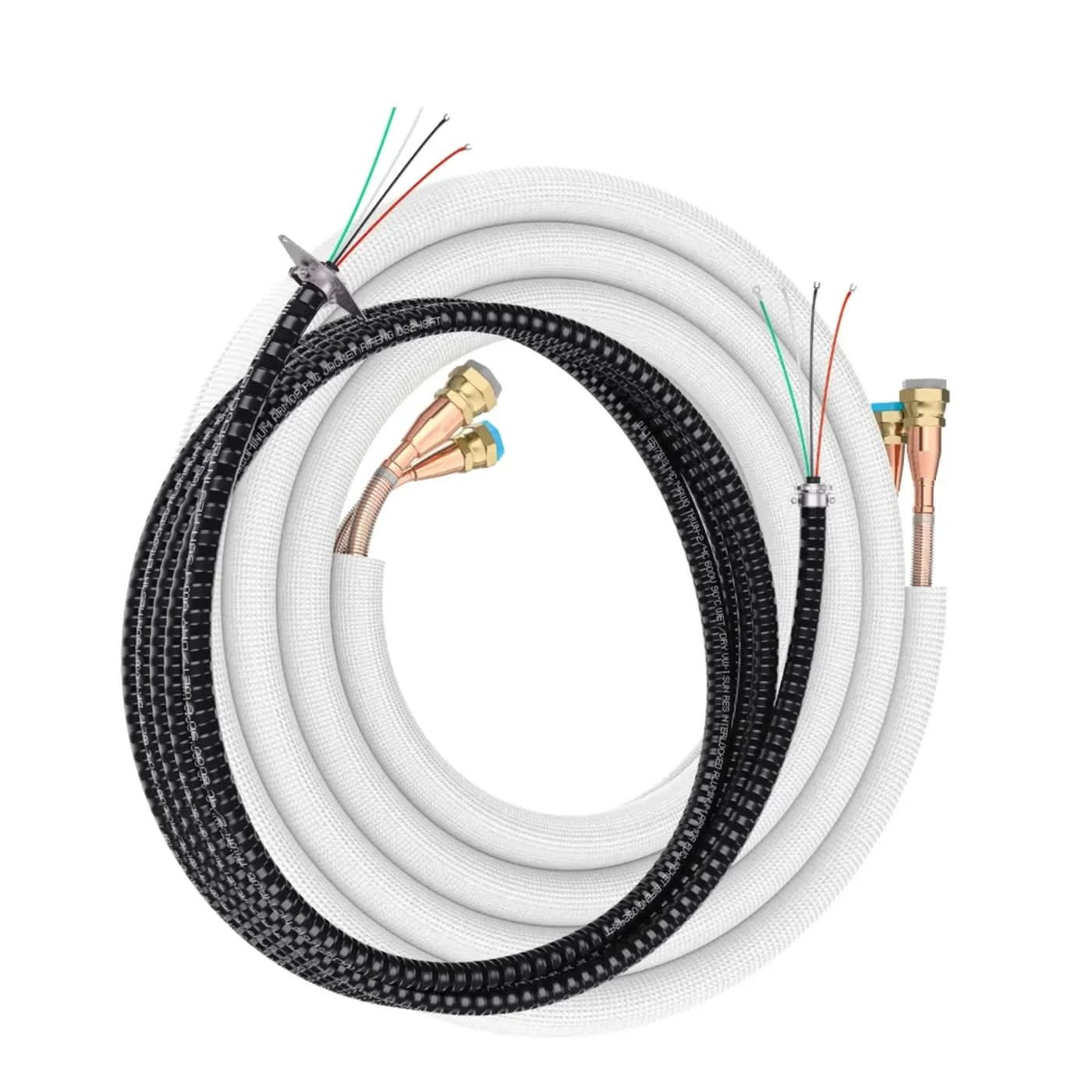

MRCOOL Pre-Charged Line Set
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

Upgrade your home’s climate control with the MRCOOL DIY 5th Gen 55K BTU 6-Zone Ductless Mini-Split System, expertly configured with three 9K, two 12K, and one 18K wall-mounted air handler. This powerful combo is ideal for homes with a mix of small and larger rooms—providing precision temperature control across six zones without sacrificing efficiency or ease of use.

The system features MRCOOL’s DIY Quick Connect® technology, pre-charged lines, and smart-home integration, making it the go-to solution for confident homeowners who want professional-grade HVAC performance without professional installation. Built for flexibility, durability, and energy savings, this 5th Gen model is SEER2 rated up to 20.5 and comes loaded with features like Gold Fin® corrosion resistance, Wi-Fi controls, and low ambient heating/cooling.

Key Features:

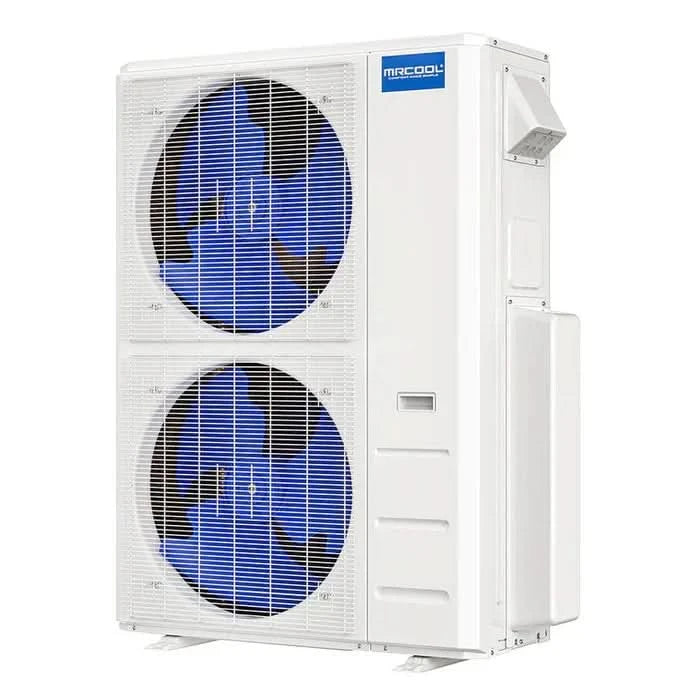

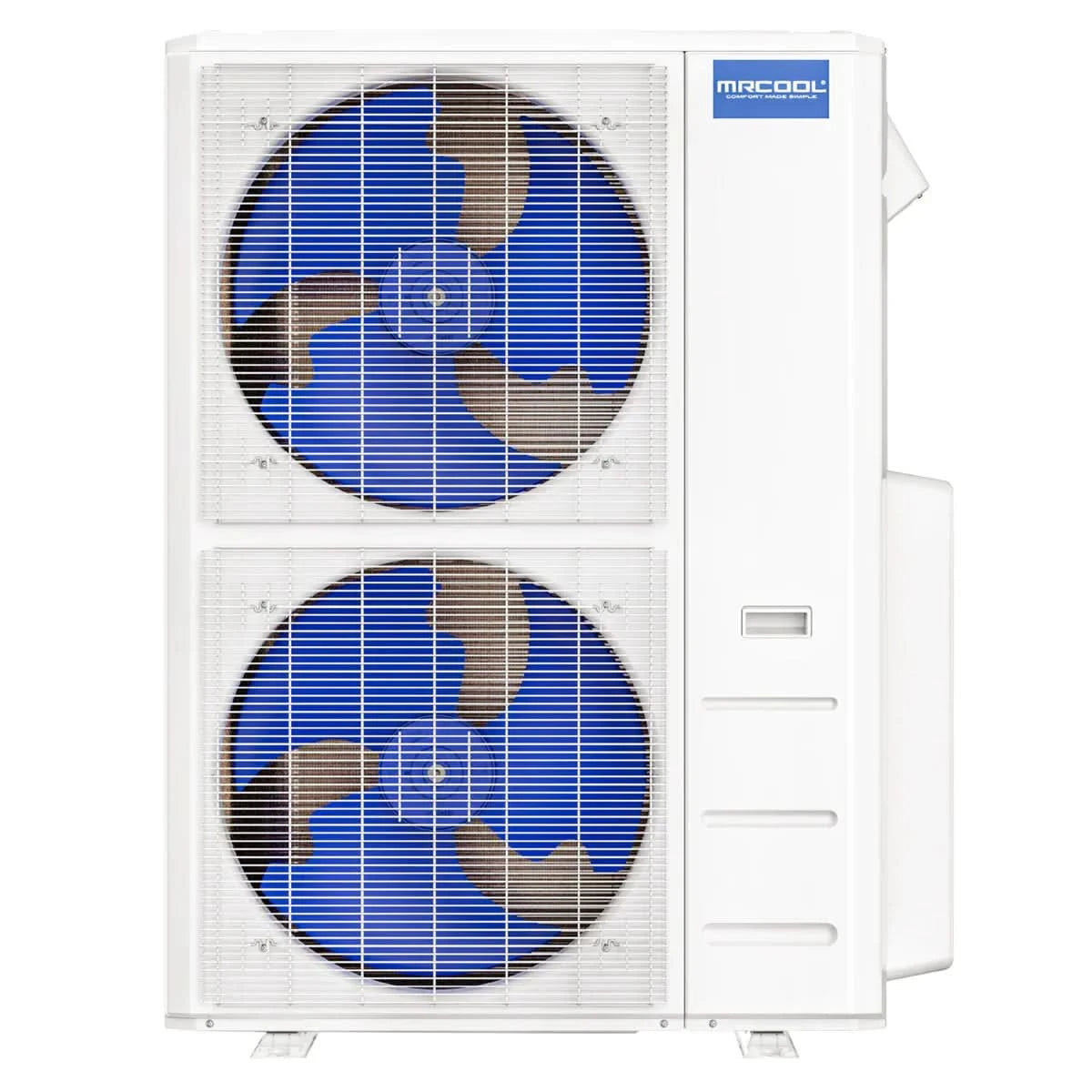

  • (1) 55,000 BTU 5th Gen DIY Multi-Zone Condenser (supports up to 6 zones)

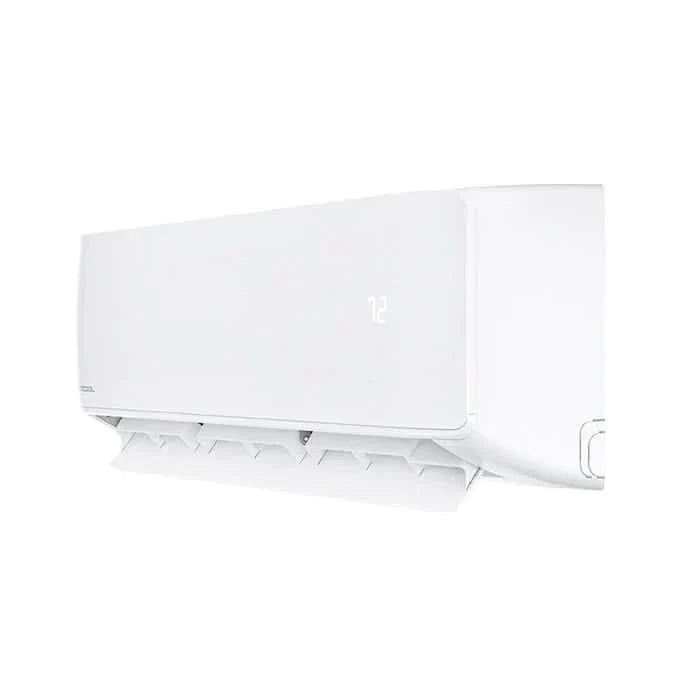

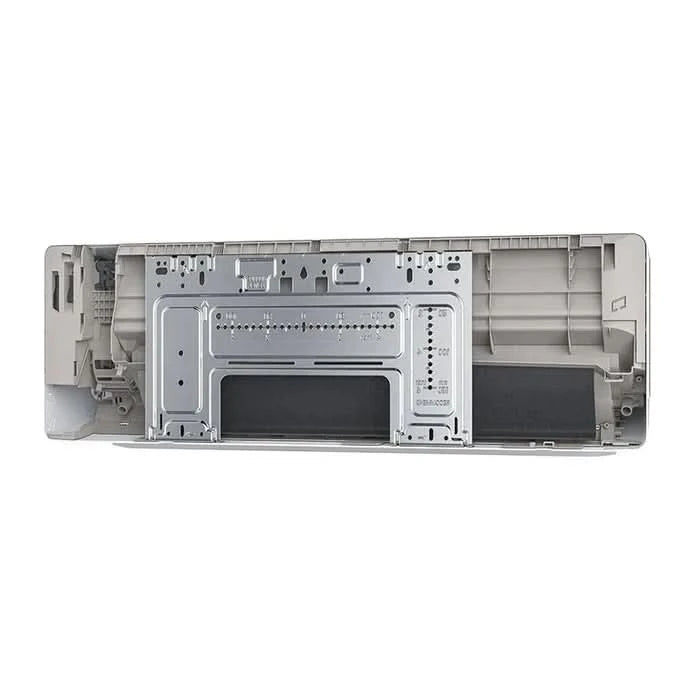

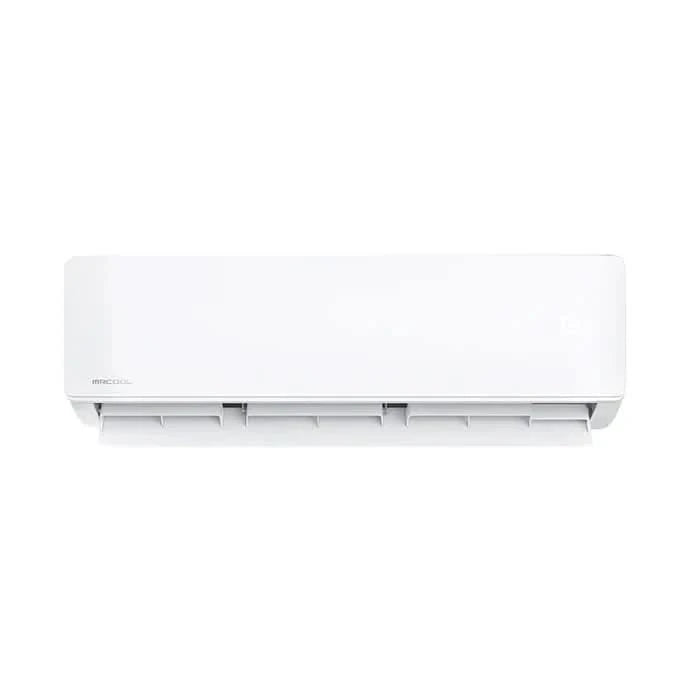

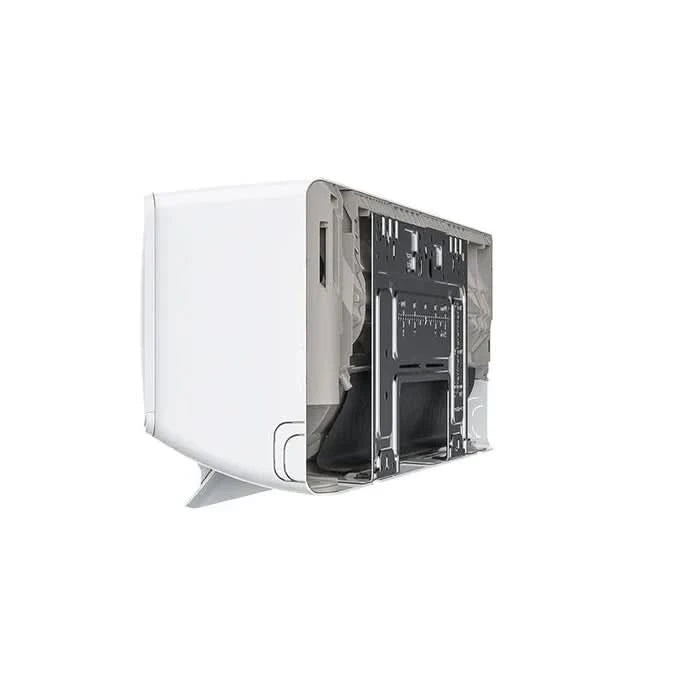

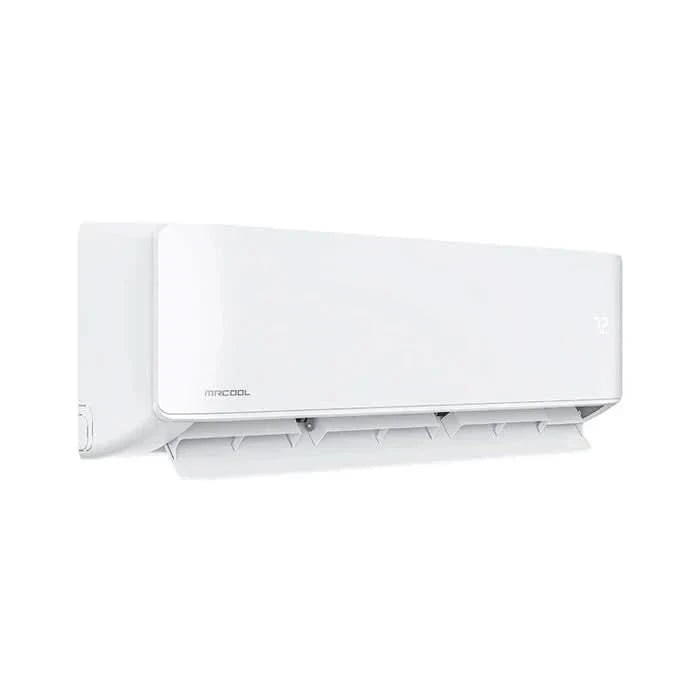

  • (3) 9,000 BTU, (2) 12,000 BTU, and (1) 18,000 BTU DIY Wall Mount Air Handlers

  • SEER2 Rating: Up to 20.5

  • Smart HVAC Control – Compatible with MRCOOL app, Alexa & Google Assistant

  • DIY Installation – Pre-charged lines, no vacuuming or special tools needed

  • Gold Fin® Coating – Rust-resistant, ideal for coastal or humid areas

  • Advanced features: Auto Restart, Leak Detection, Sleep Mode, Follow Me®

  • UL Listed & AHRI Certified

  • Backed by 5-Year Parts and 7-Year Compressor Warranty



Includes:

  • (1) MRCOOL 55K BTU 5-Zone DIY Condenser (Model: DIY-MULTI5-55HP-WM00C)

  • (3) 9K, (2) 12K, and (1) 18K DIY Wall Mounted Air Handlers

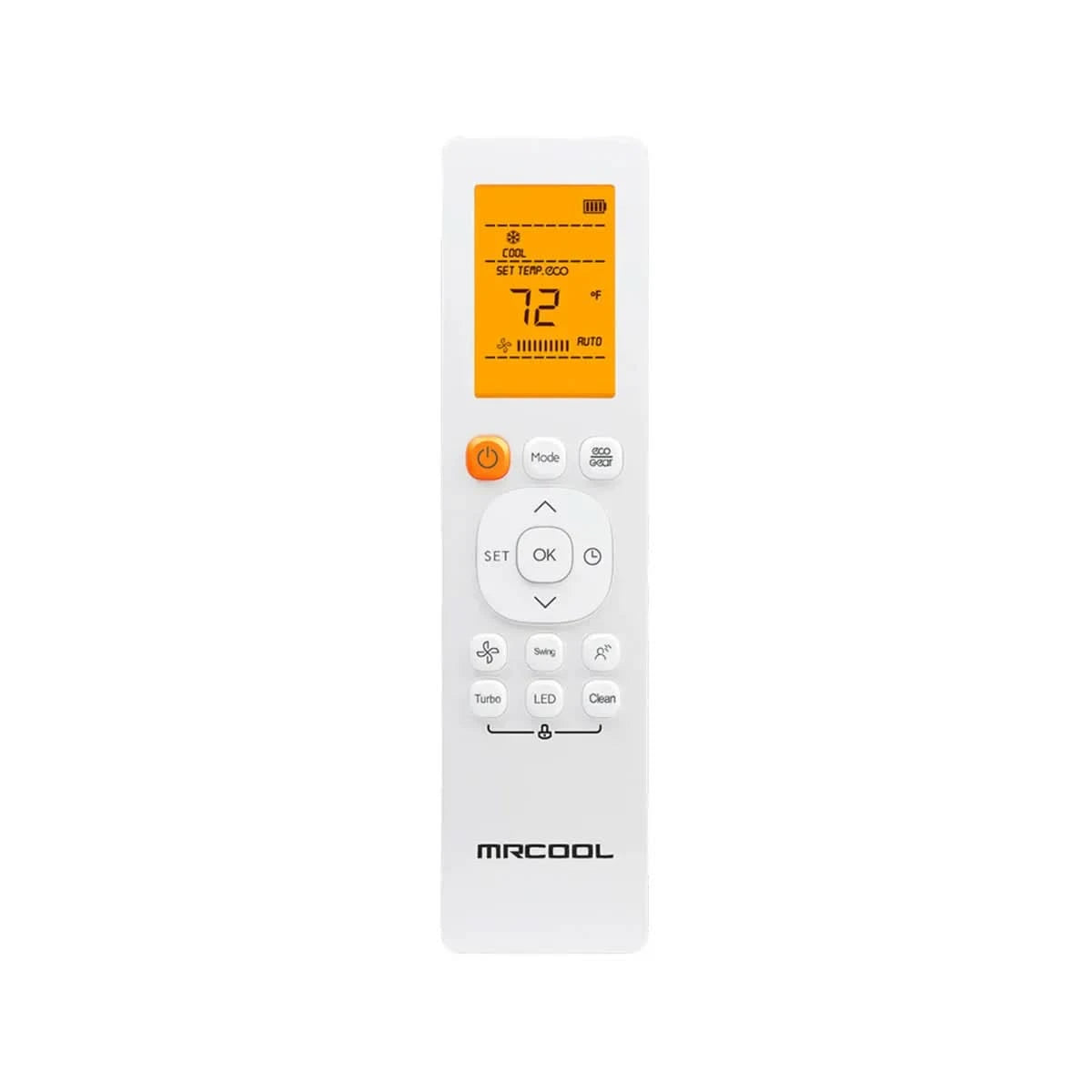

  • (6) Remotes

  • Installation Manuals



Specifications:

BRAND NAME MRCOOL
SERIES DIY 5th gen Multi-Zone Mini-splits
MODEL DIY-MULTI6-55HP230D-O
GTIN 840255587488
UPC 840255587488
SHORT DESCRIPTION
MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
SEER2 22
EER2 12
HSPF2-4 10.6
HSPF2-5 8.5
TONNAGE 4.6
COOLING CAPACITY (BTU) 47000
HEATING CAPACITY (BTU) 55000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 45
MIN CIRCUIT AMPACITY (A) 43
COLOR White
ZONE CAPACITY 6
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 151.68
DECIBEL RATING (DBA) 64
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE (3/8 X4) (1/2 X2)
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.34
NET HEIGHT (IN) 52.48
NET WIDTH (IN) 37.48
NET WEIGHT (LBS) 245.81
GROSS DEPTH (IN) 19.49
GROSS HEIGHT (IN) 58.27
GROSS WIDTH (IN) 43.11
GROSS WEIGHT (LBS) 267.46
