MRCOOL

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 9K + 9K + 9K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 9K + 9K + 9K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

Regular price $7,400.00 USD
Regular price $8,953.99 USD Sale price $7,400.00 USD
Save $1,553.99 Sold out
Shipping calculated at checkout.

Choose your Pre-Charged line set Length:

Total Price: $7,400.00

SKUDIYM655090909090918

Type55K

  • Official MRCOOL store logo – used to represent brand-authorized sellers and verified HVAC product listings.Authorized MRCOOL Dealer
  • Customer service award graphic – MRCOOL’s 5-star HVAC support rating for Easy Pro, DIY, and multi-zone systems.5-Star Customer Service
  • Fast shipping badge for MRCOOL mini splits – official delivery services offering nationwide coverage and tracking.Fast & Secure Shipping
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

Upgrade your home’s climate control with the MRCOOL DIY 5th Gen 55K BTU 6-Zone Ductless Mini-Split System, expertly configured with five 9K and one 18K wall-mounted air handler. This powerful combo is ideal for homes with a mix of small and larger rooms—providing precision temperature control across six zones without sacrificing efficiency or ease of use.

The system features MRCOOL’s DIY Quick Connect® technology, pre-charged lines, and smart-home integration, making it the go-to solution for confident homeowners who want professional-grade HVAC performance without professional installation. Built for flexibility, durability, and energy savings, this 5th Gen model is SEER2 rated up to 20.5 and comes loaded with features like Gold Fin® corrosion resistance, Wi-Fi controls, and low ambient heating/cooling.

Key Features:

  • (1) 55,000 BTU 5th Gen DIY Multi-Zone Condenser (supports up to 6 zones)

  • (5) 9,000 BTU and (1) 18,000 BTU DIY Wall Mount Air Handlers

  • SEER2 Rating: Up to 20.5

  • Smart HVAC Control – Compatible with MRCOOL app, Alexa & Google Assistant

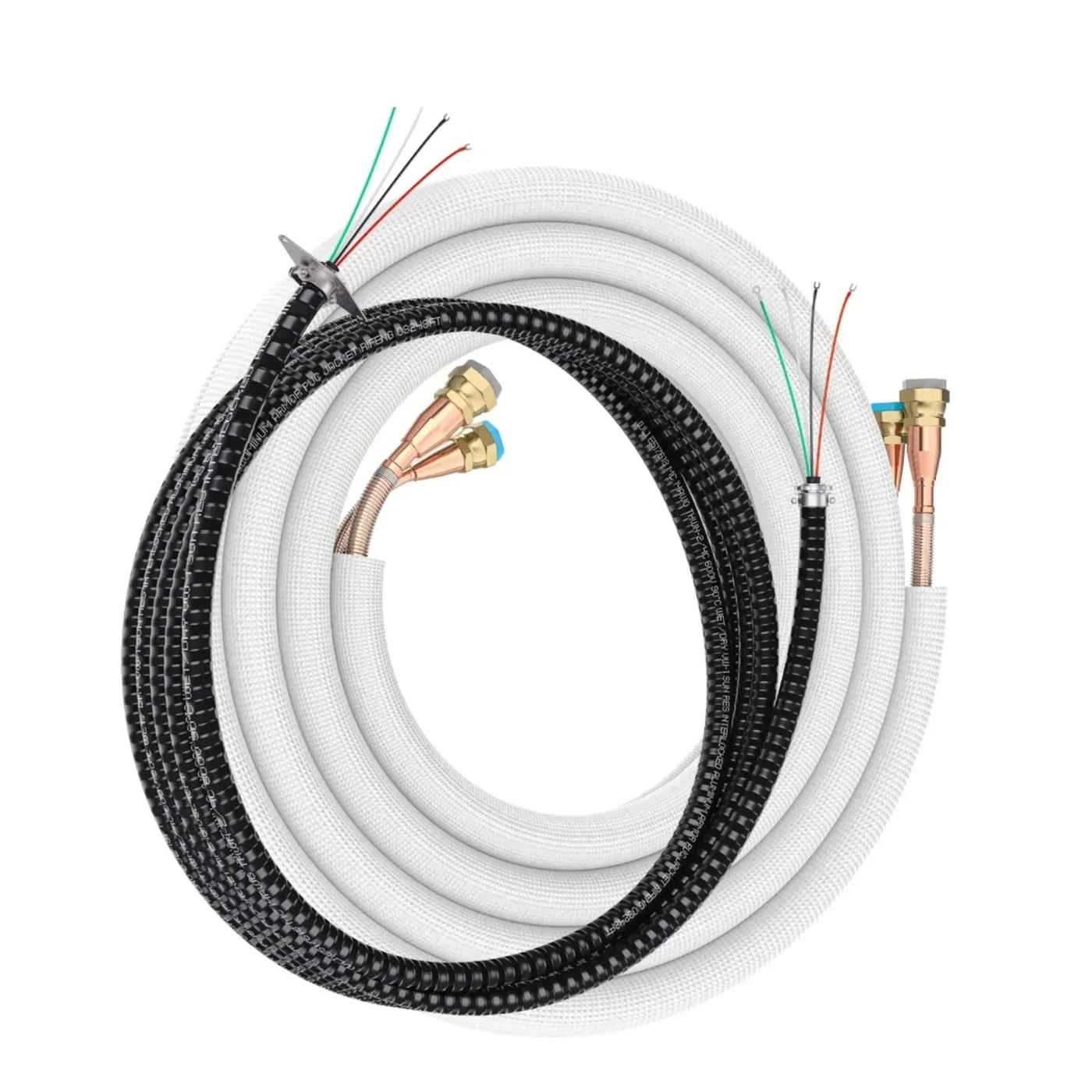

  • DIY Installation – Pre-charged lines, no vacuuming or special tools needed

  • Gold Fin® Coating – Rust-resistant, ideal for coastal or humid areas

  • Advanced features: Auto Restart, Leak Detection, Sleep Mode, Follow Me®

  • UL Listed & AHRI Certified

  • Backed by 5-Year Parts and 7-Year Compressor Warranty

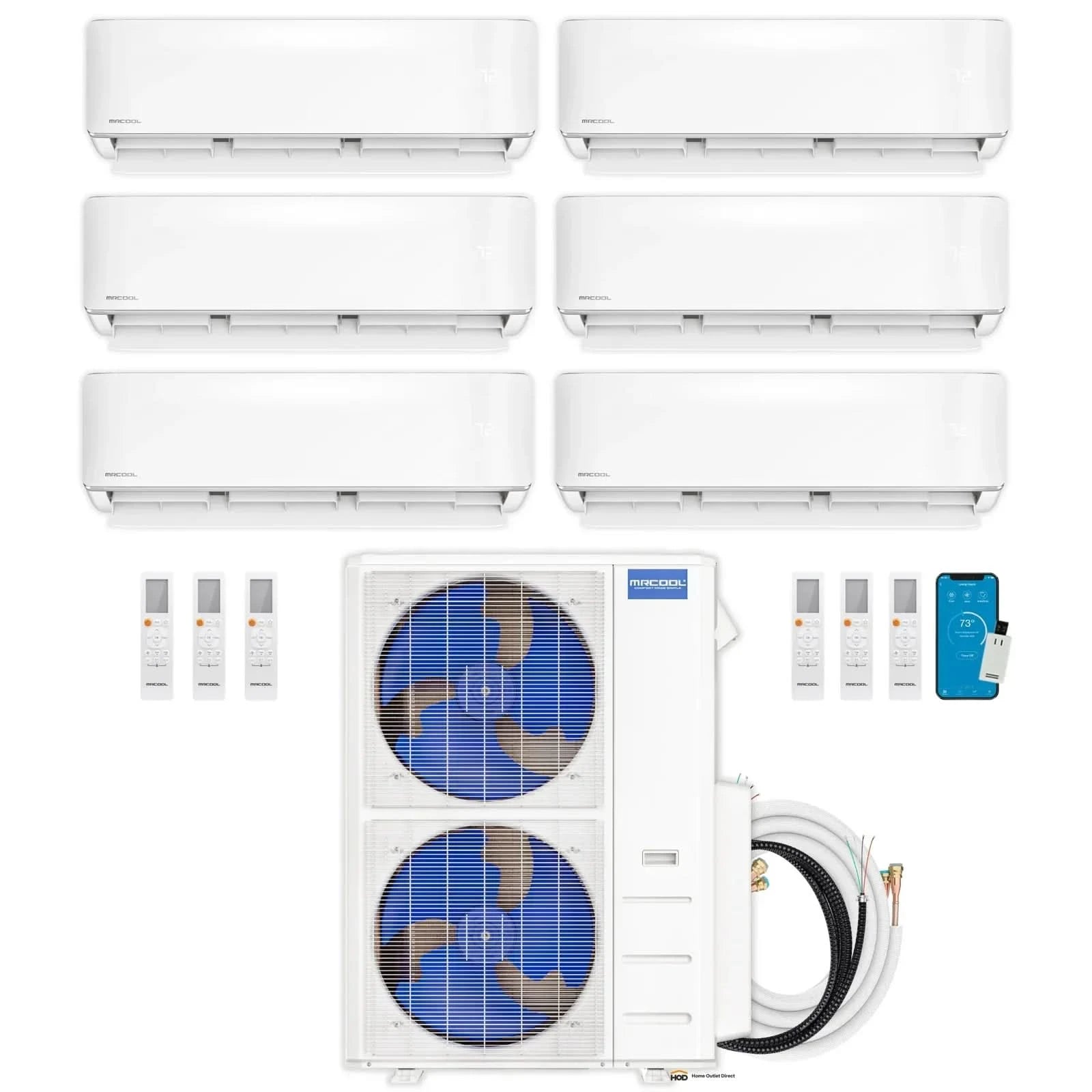

Includes:

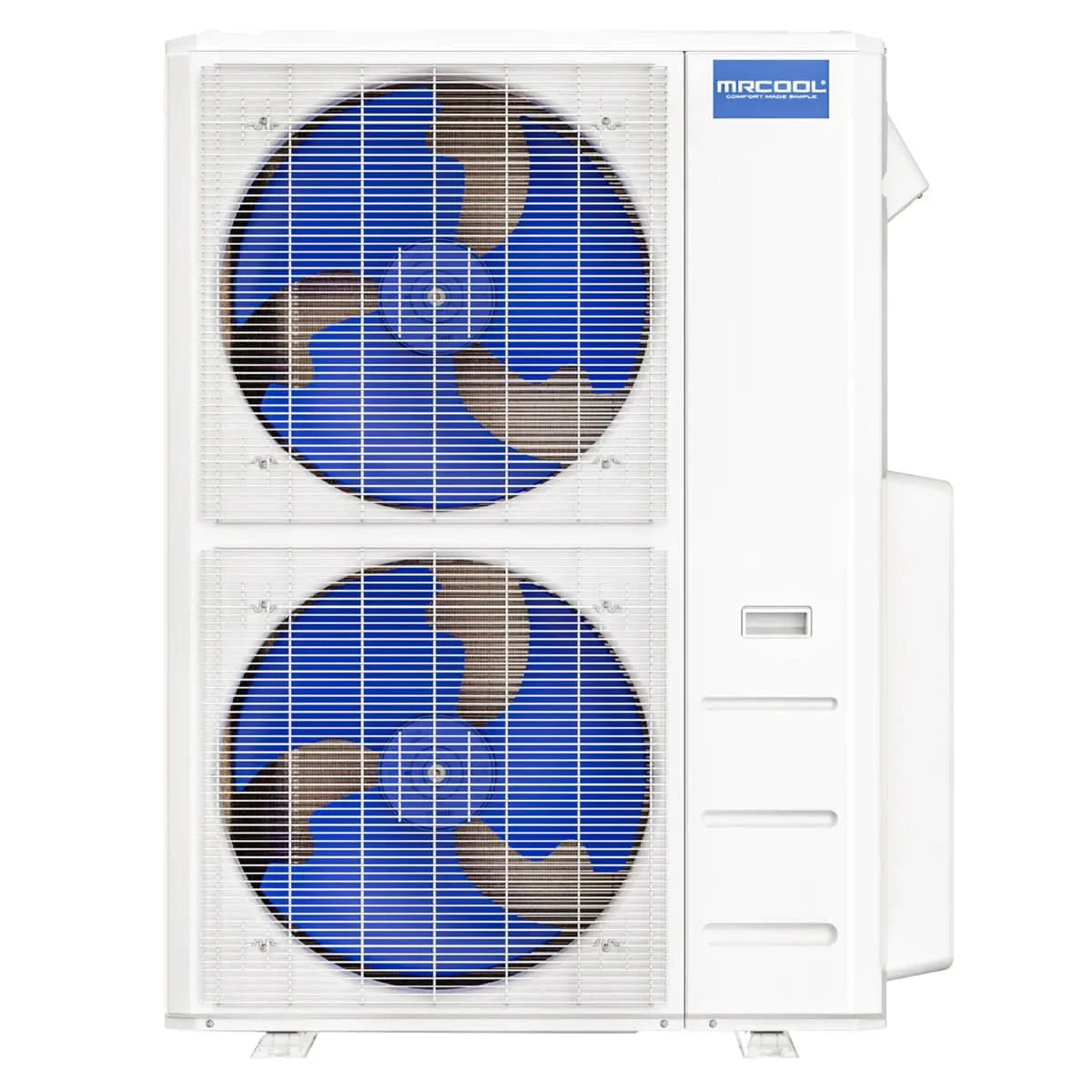

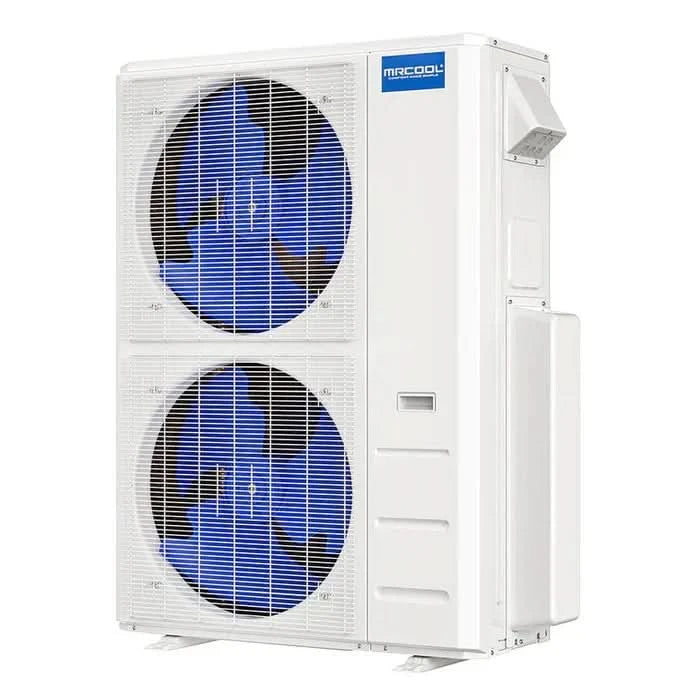

  • (1) MRCOOL 55K BTU 5-Zone DIY Condenser (Model: DIY-MULTI5-55HP-WM00C)

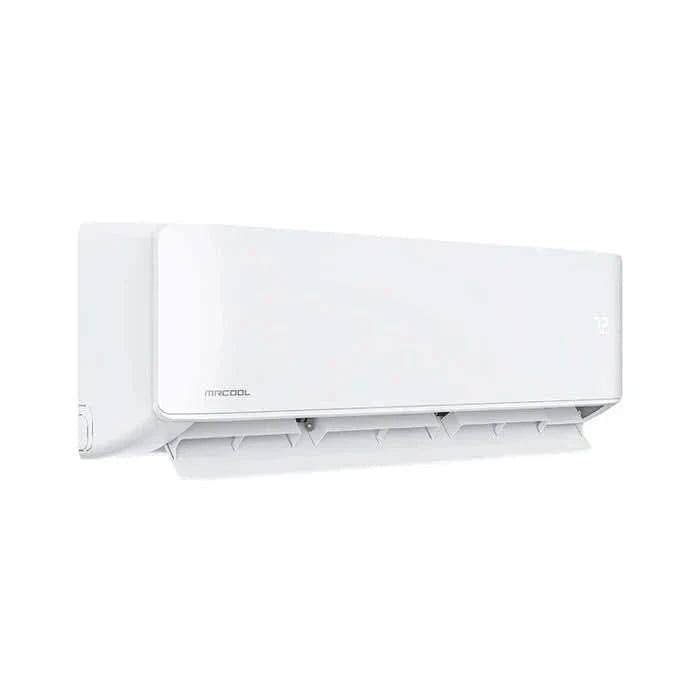

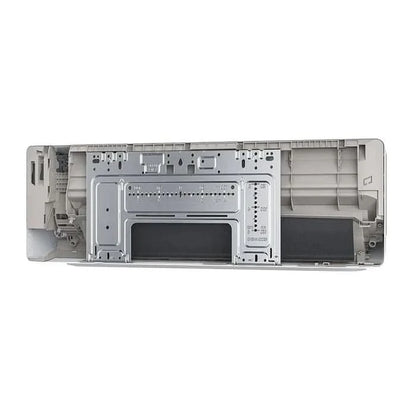

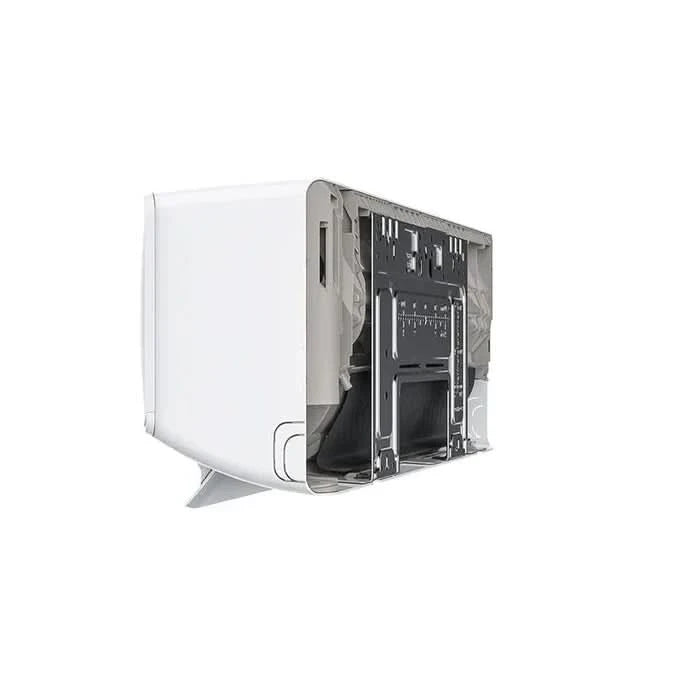

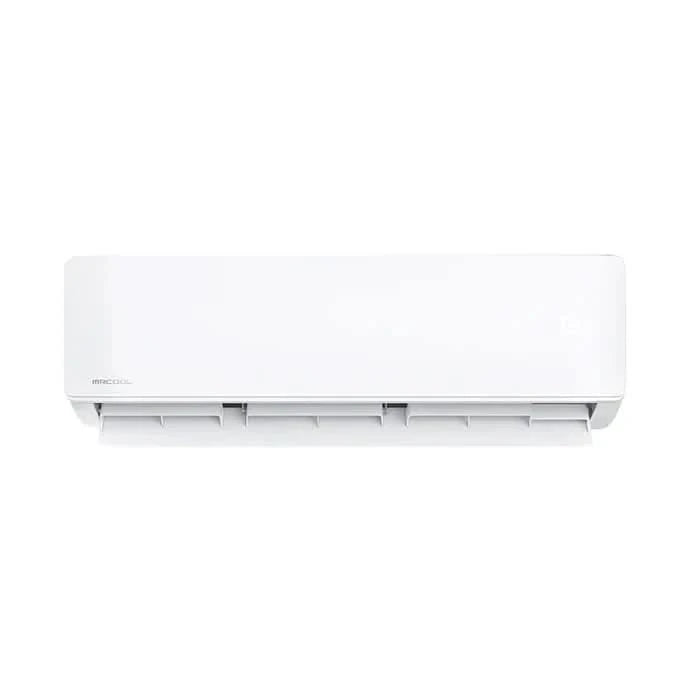

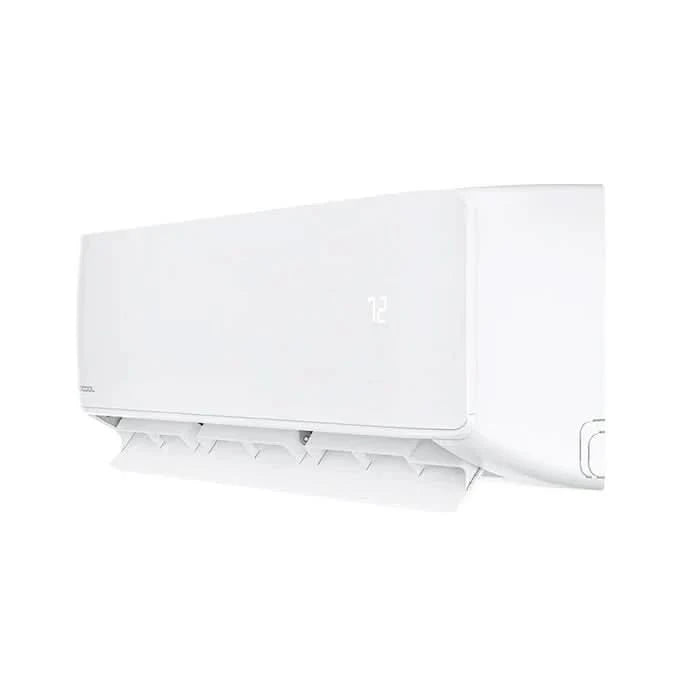

  • (5) 9K and (1) 18K DIY Wall Mounted Air Handlers

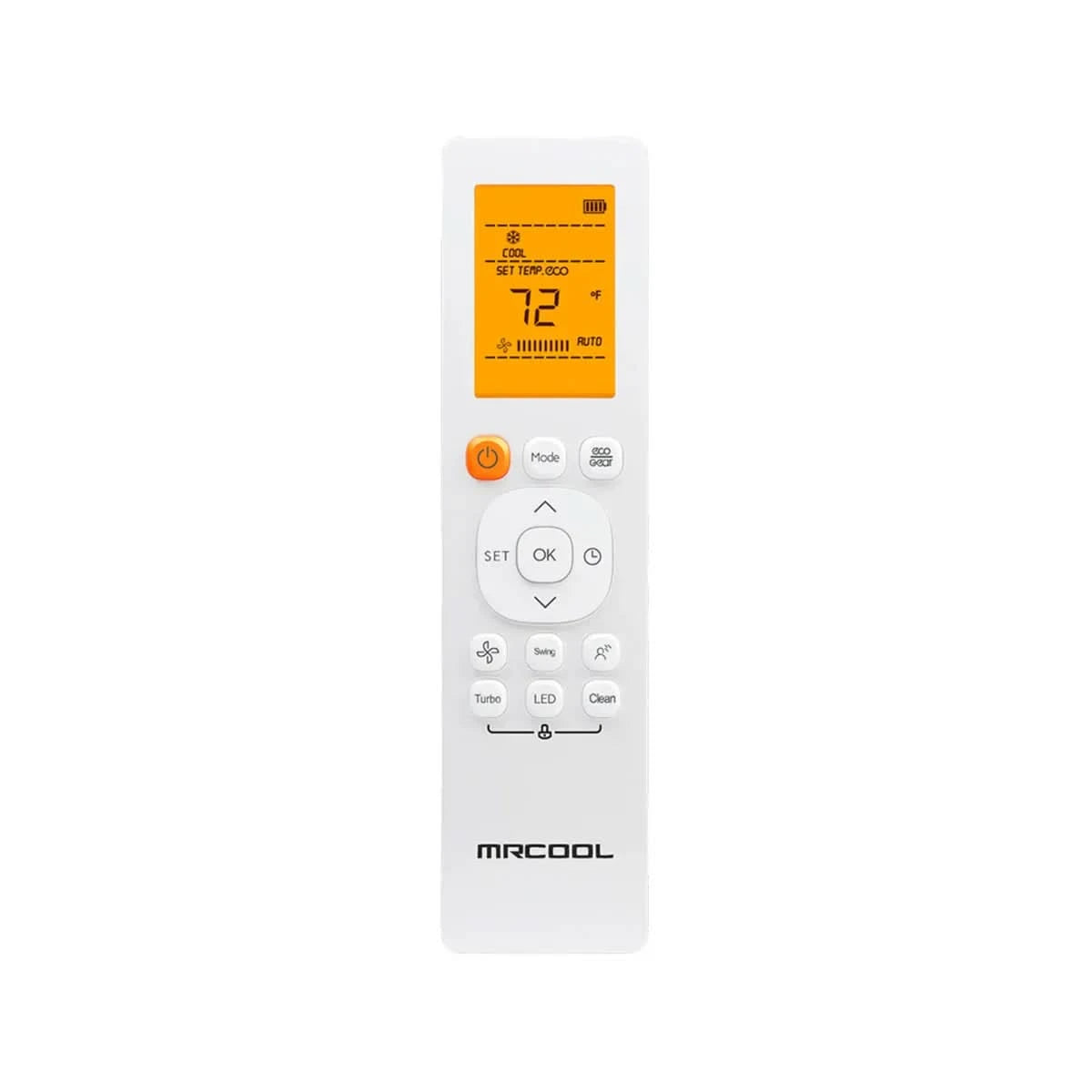

  • (6) Remotes

  • Installation Manuals

BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI6-55HP230D-O
GTIN 840255587488
UPC 840255587488
SHORT DESCRIPTION
MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
LONG DESCRIPTION
Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system. The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. These line sets are sold separately. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort. One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
FEATURE LIST
Intertek listed 5031495
Easy DIY installation

Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
SEER2 22
EER2 12
HSPF2-4 10.6
HSPF2-5 8.5
TONNAGE 4.6
COOLING CAPACITY (BTU) 47000
HEATING CAPACITY (BTU) 55000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 45
MIN CIRCUIT AMPACITY (A) 43
COLOR White
ZONE CAPACITY 6
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 151.68
DECIBEL RATING (DBA) 64
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE
(3/8 X4) (1/2 X2)
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.34
NET HEIGHT (IN) 52.48
NET WIDTH (IN) 37.48
NET WEIGHT (LBS) 245.81
GROSS DEPTH (IN) 19.49
GROSS HEIGHT (IN) 58.27
GROSS WIDTH (IN) 43.11
GROSS WEIGHT (LBS) 267.46
