![A MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with two interior units, a large exterior condenser, remote controls, and installation accessories including copper tubing and insulating pipes.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-436069.webp?v=1708579227&width=1445)
![Split-type air conditioner with two interior units, remote controls, and a smartphone app for temperature control, alongside an external compressor unit - MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump from MRCOOL DIY Direct.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-109839.webp?v=1707942173&width=1445)
![A modern white MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump outdoor unit with a large circular fan visible behind a protective grille, branded MRCOOL DIY Direct, offers ac heating and cooling near me.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-357945.webp?v=1707942176&width=1445)
![Modern MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump outdoor unit isolated on white background.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-898994.webp?v=1707942178&width=1445)
![Modern MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump standing against a white background, designed to filter out pollutants for cleaner indoor air, integrating HVAC technology.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-938450.webp?v=1707942181&width=1445)
![Modern white wall-mounted MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump unit by MRCOOL DIY Direct.](http://mrcooldiydirect.com/cdn/shop/products/mrcool-diy-mini-split-18000-btu-2-zone-ductless-air-conditioner-and-heat-pump-diy-b-218hp0909-181701.webp?v=1702672879&width=1445)
![](http://mrcooldiydirect.com/cdn/shop/files/female-customer-support-operator-headset-600nw-102124561.webp?v=1710218479)
Have questions or need help selecting the perfect Mini Split system?
Talk with our expert HVAC team members now for assistance!!
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

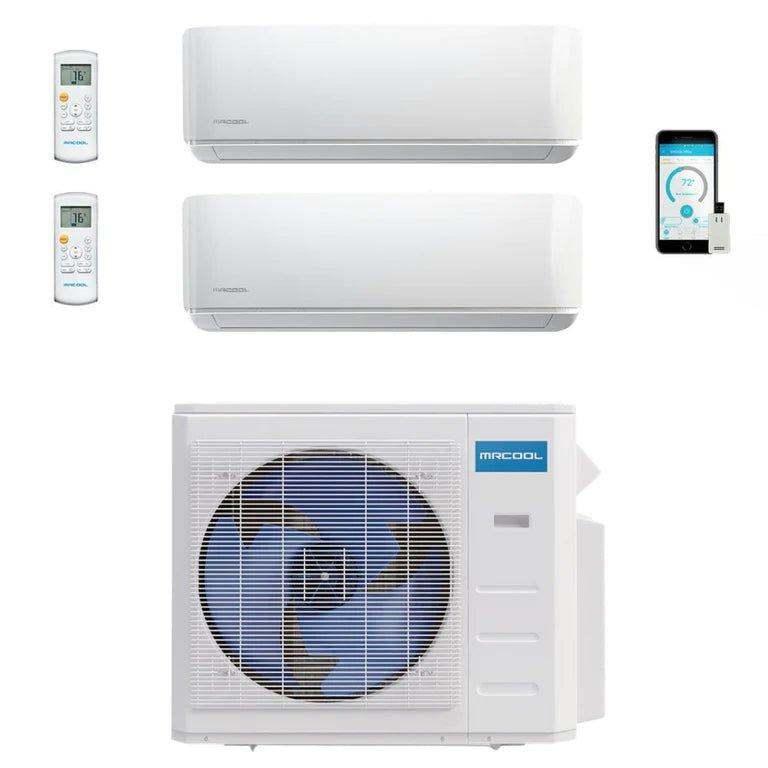

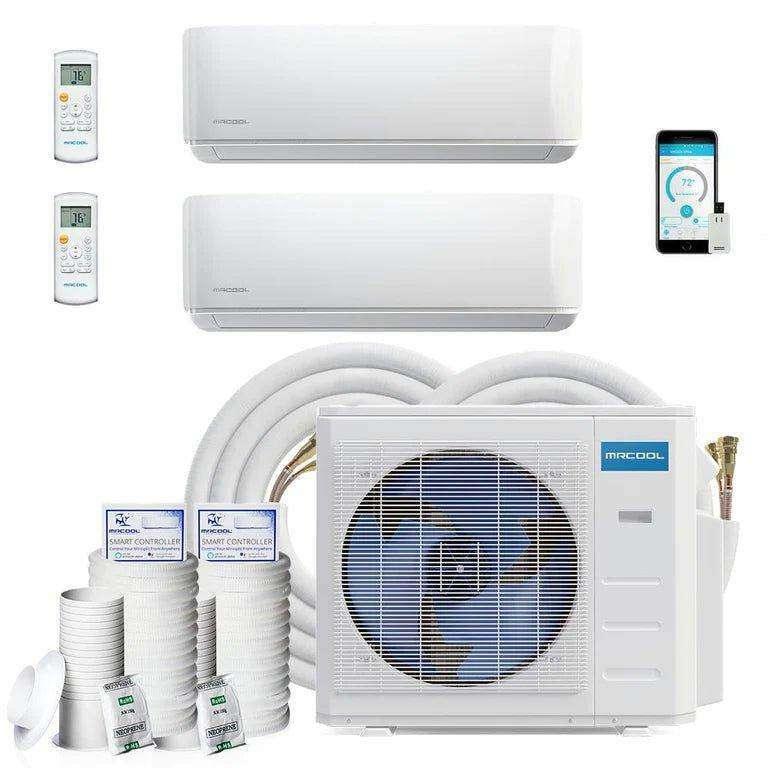

This 4th Generation MRCOOL Mini Split includes a DIY 18,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler and two Remotes. The best part about all of this is that you can install it yourself!
If you need longer line sets, extra cost will apply, please make the selection above.

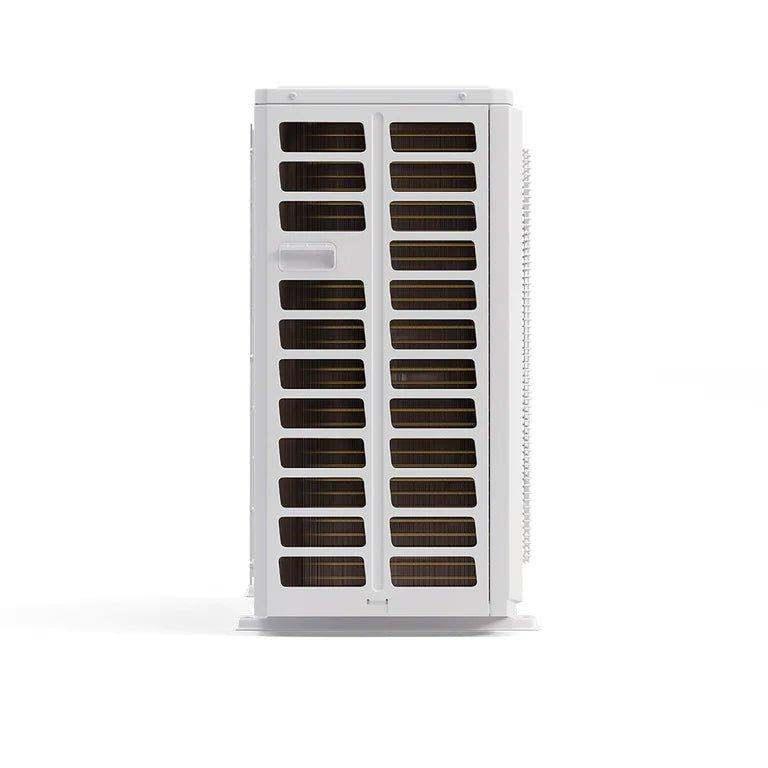

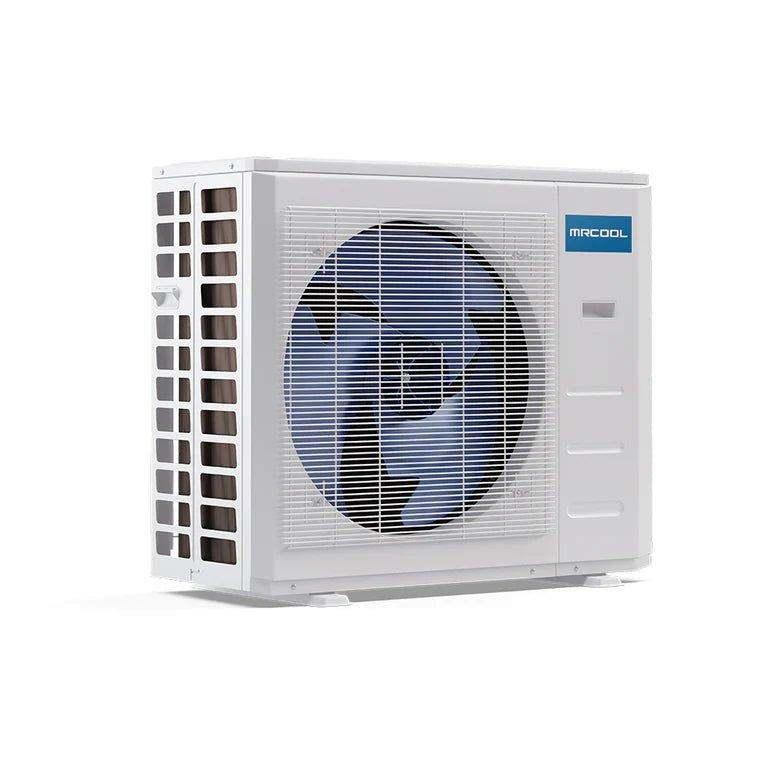

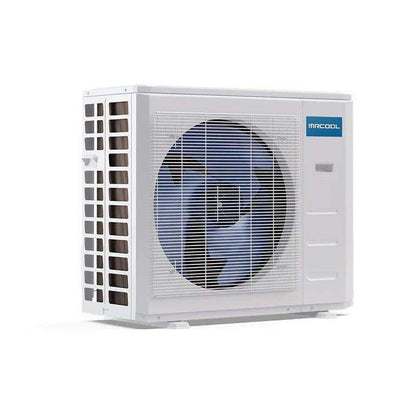

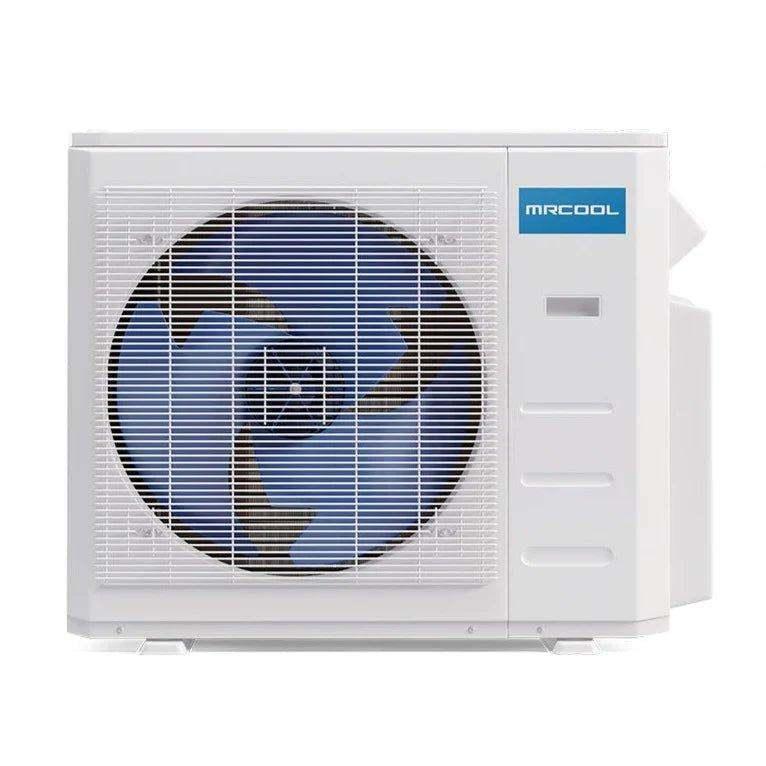

Condenser
- Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

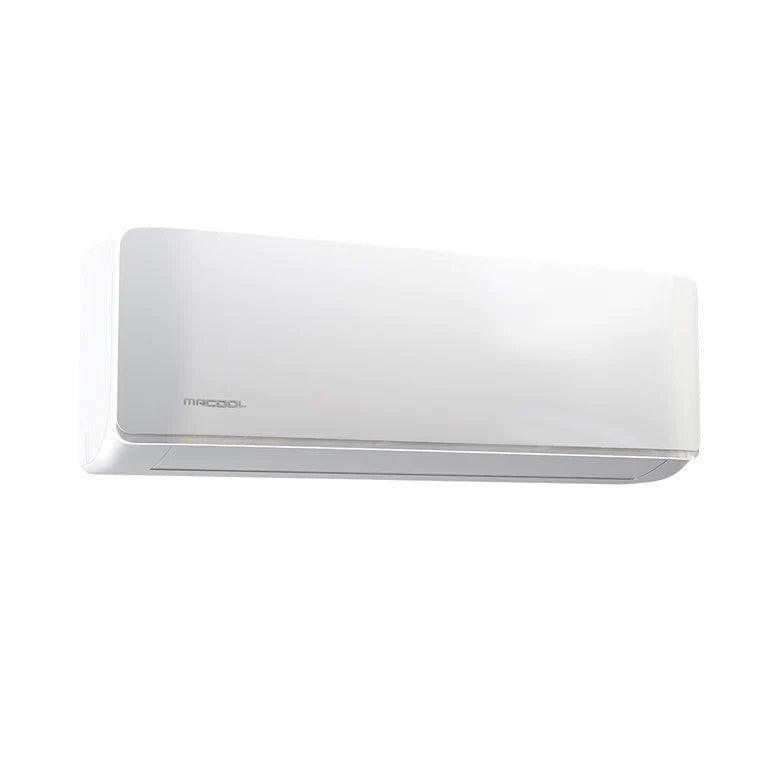

Air Handler, 9K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Condenser
Product Dimensions | 35.04"W x 13.46"D x 26.50"H |
Cooling Capacity | 18,000 BTU |
Heating Capacity | 19,000 BTU |
Zone Capacity | 2 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
SEER | 21 |
EER | 12.5 |
Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 9,000 BTU |
Heating Capacity |
9,000 BTU |
Registered Warranty |
5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
