PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
- MRCOOL DIY Multi-Zone 2-Zone Condenser, 4th Gen Series, DIY-MULTI2-18HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x2)
Condenser
- Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

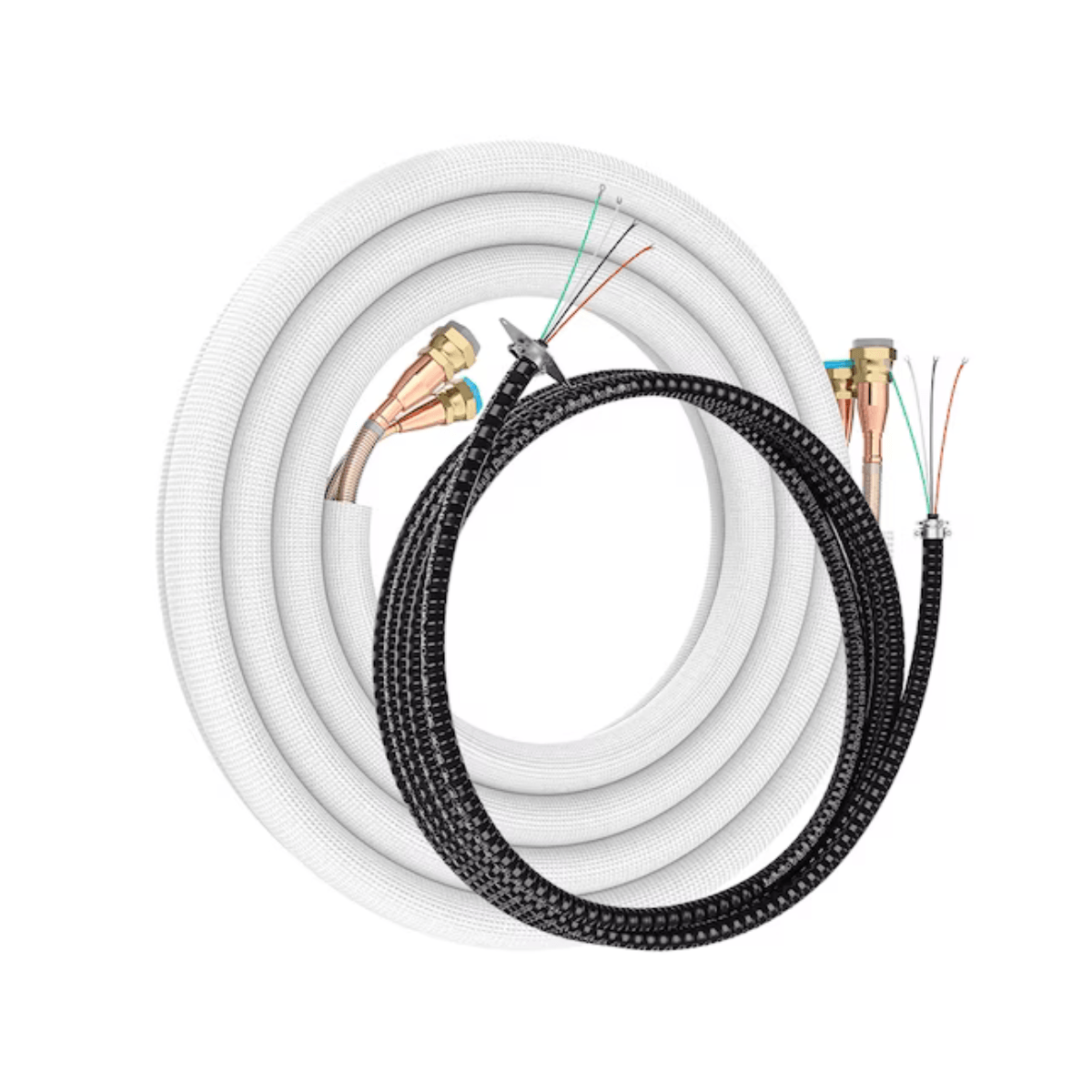

Line Set 25 ft., Quantity 2
- This 35 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Additional Line Sets & Coupler
If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.
What does this package include?
This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional),
Line-Set Adapter Set (Included with 4-zone & 5-zone systems only),
Batteries,
Air Freshening Filter,
Seal (for cooling & heating models),
Allen Wrench,
Installation & Owner’s Manual,
Remote Control Manual,
Smart Controller Kit,
Plastic Wall Sleeve,
Sound Deadening Pads,
Drain Pipe,
Cardboard Mounting Plate Template,
Quick Connect® Line Set (refrigerant pipe)*,
Insulation Material,
Non-Adhesive U.V. Tape,
Drain joint,
Neoprene.
PRODUCT SPECIFICATIONS:
Condenser Specifications
Product Dimensions | 35.04'W x 13.46'D x 26.50'H |
Cooling Capacity | 18,000 BTU |
Heating Capacity | 19,000 BTU |
Zone Capacity | 2 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Min Ambient Heat | -13F ~ 75.2F |
SEER | 21 |
EER | 12.5 |
Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
Product Dimensions | 31.57'W x 7.44'D x 11.69'H |
Mount Type | Wall |
Cooling Capacity | 9,000 BTU |
Heating Capacity | 9,000 BTU |
Registered Warranty | 5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
Length | 35 Feet |
Liquid Line Size | 1/4' |
Suction Line Size | 1/2' |
