PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

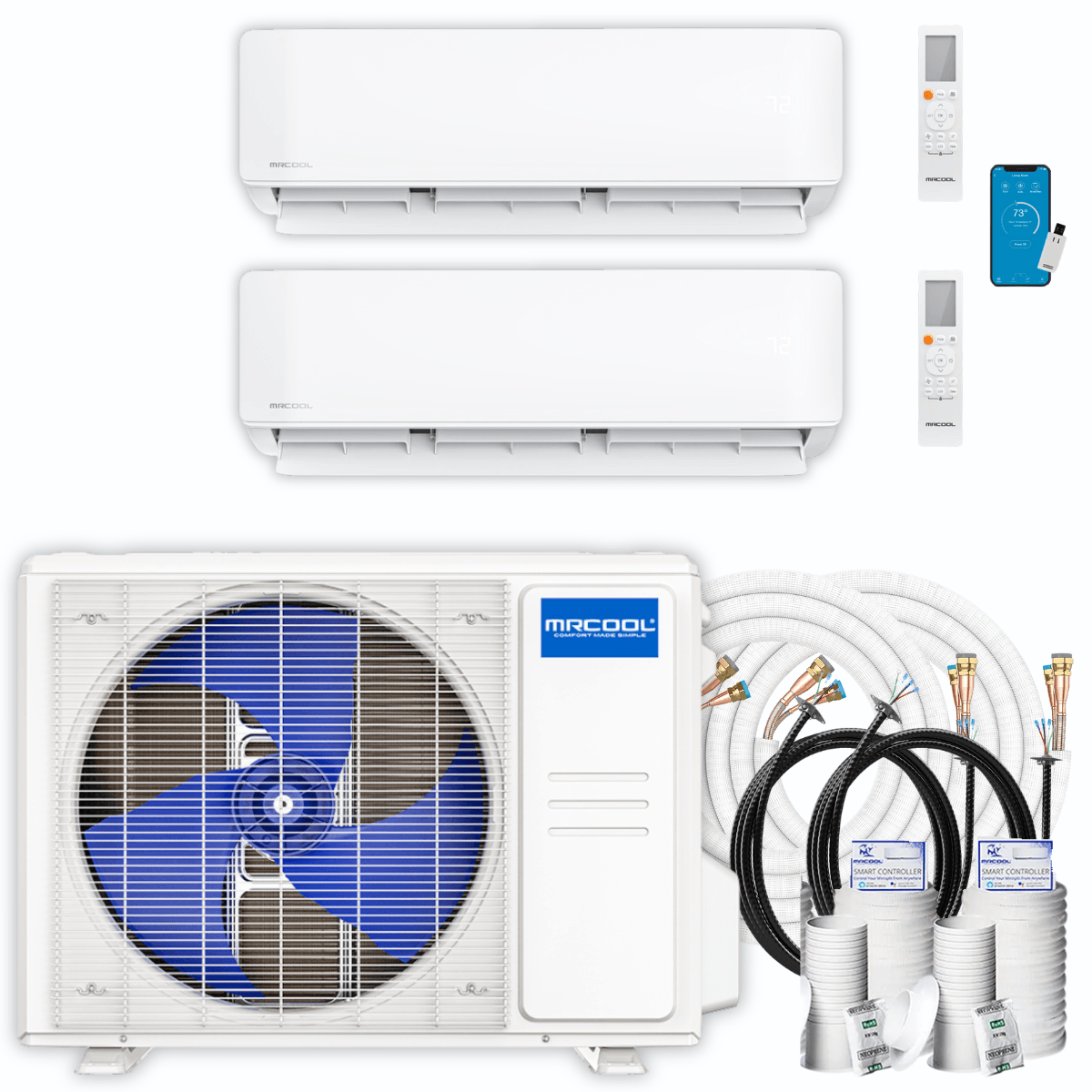

- MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
- MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25 (x2)
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x2)

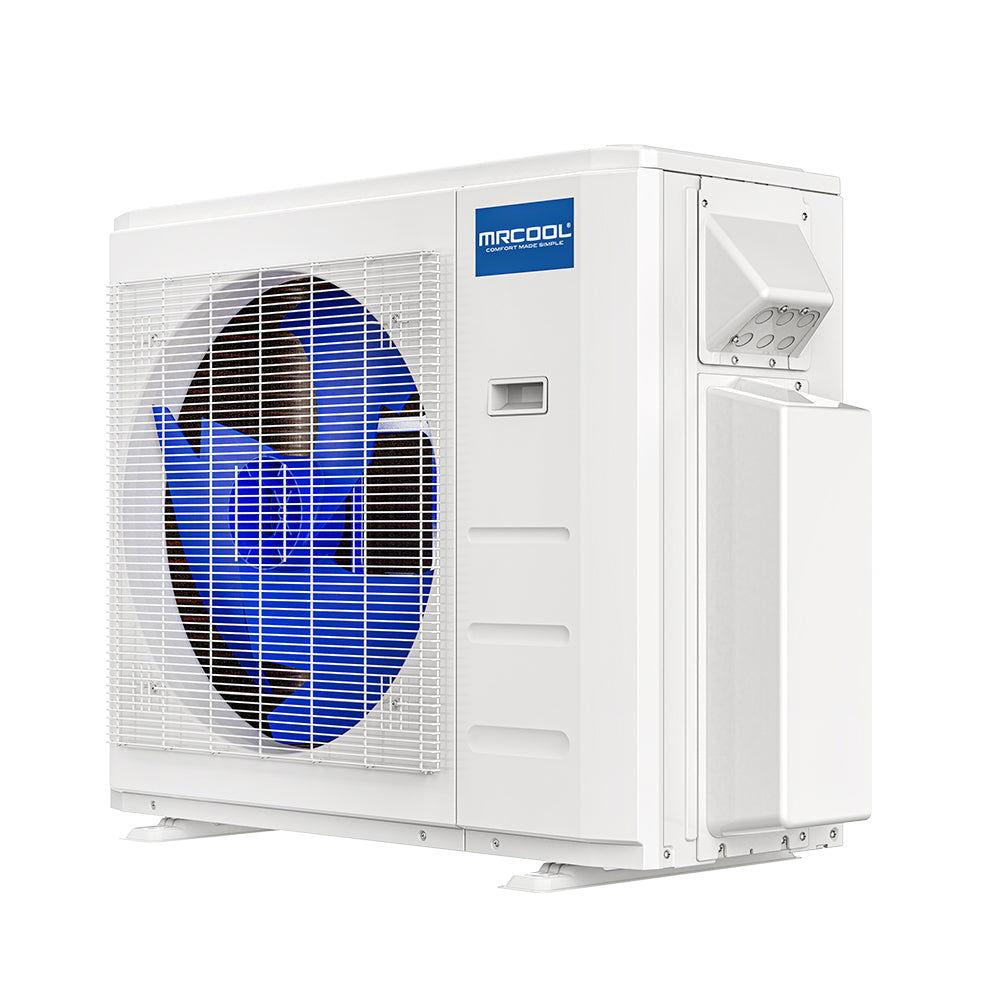

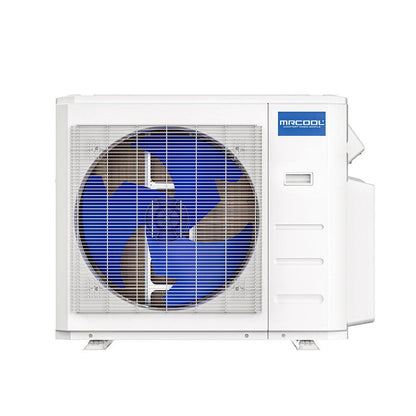

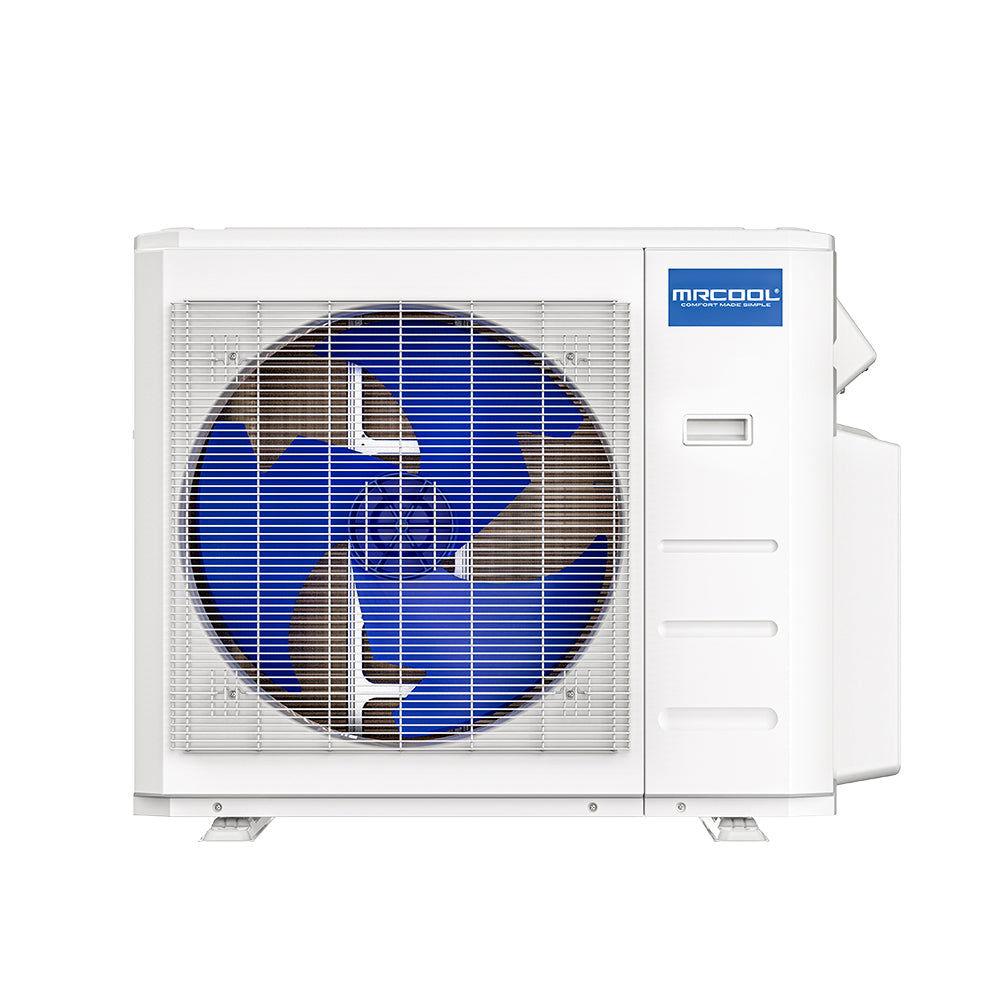

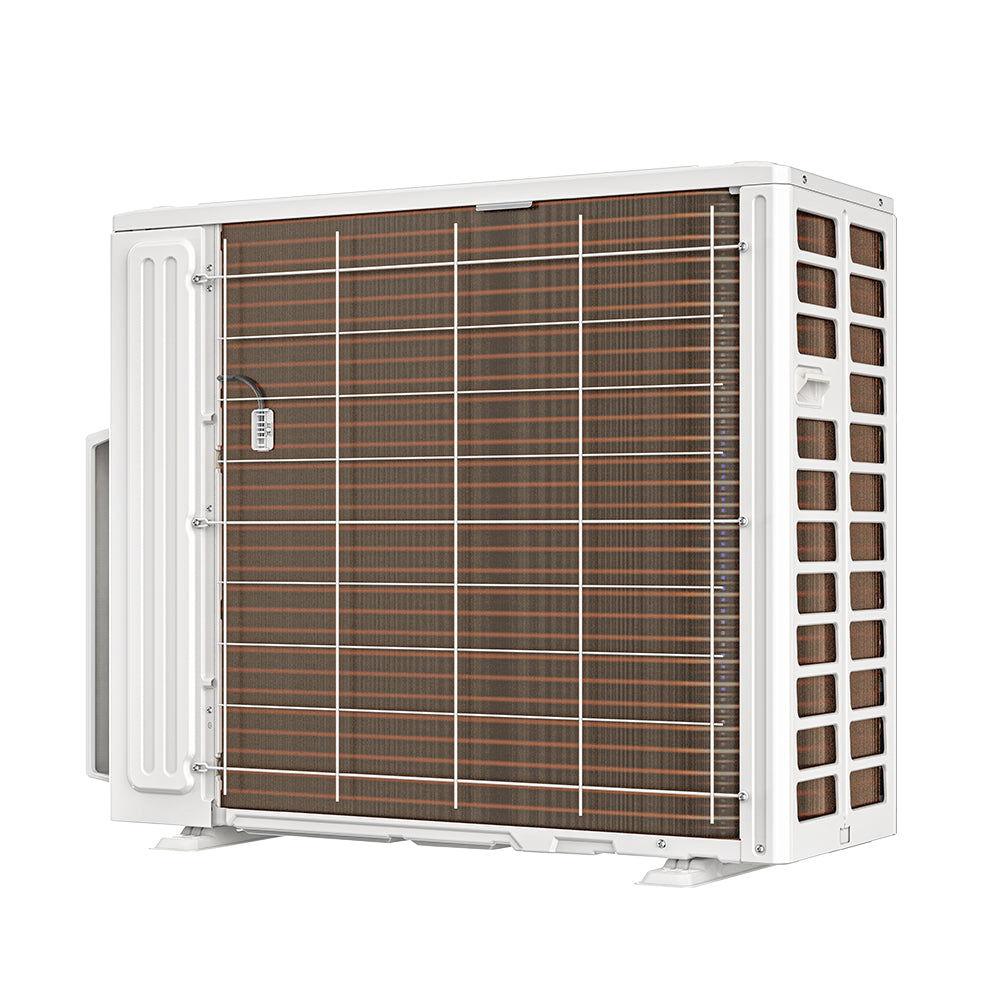

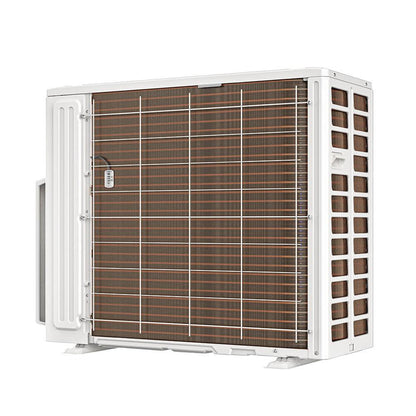

Condenser
- Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
- 21.5 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

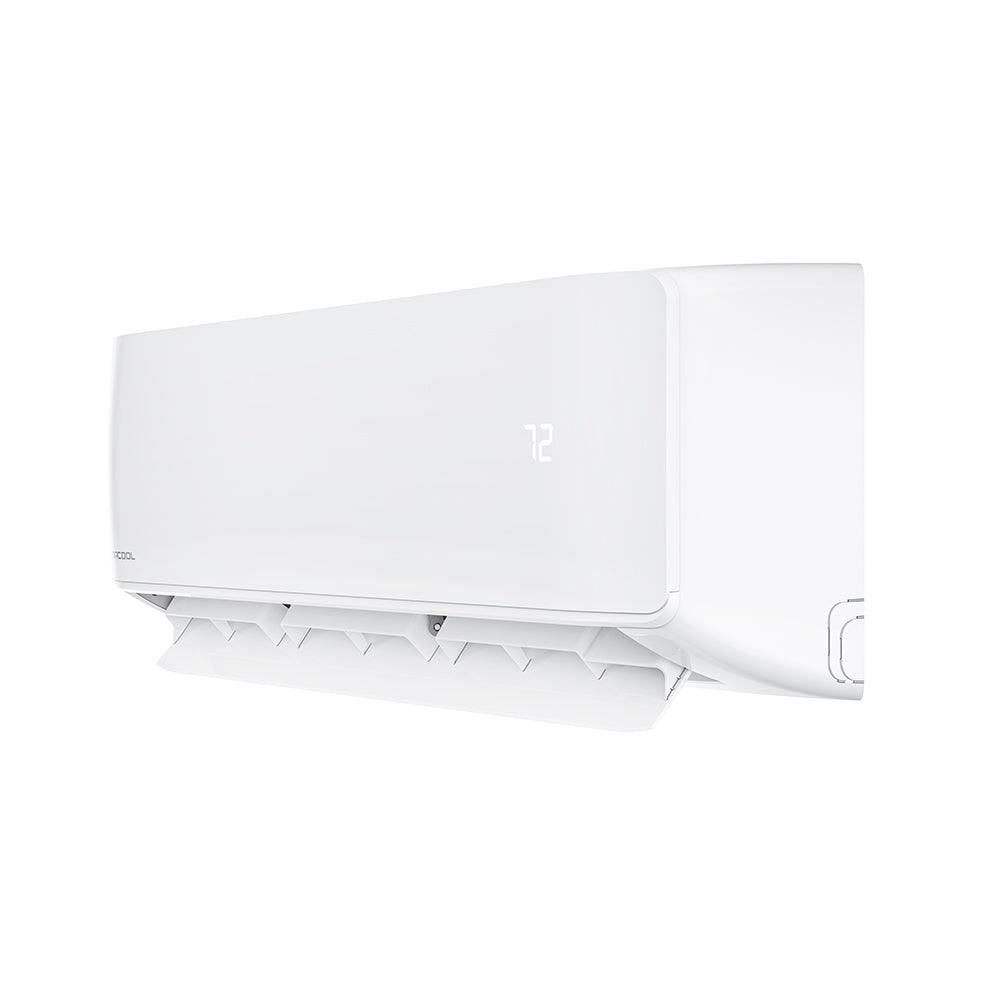

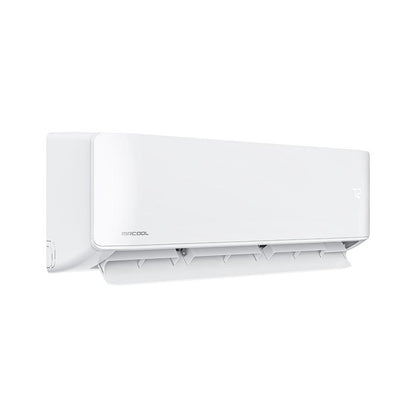

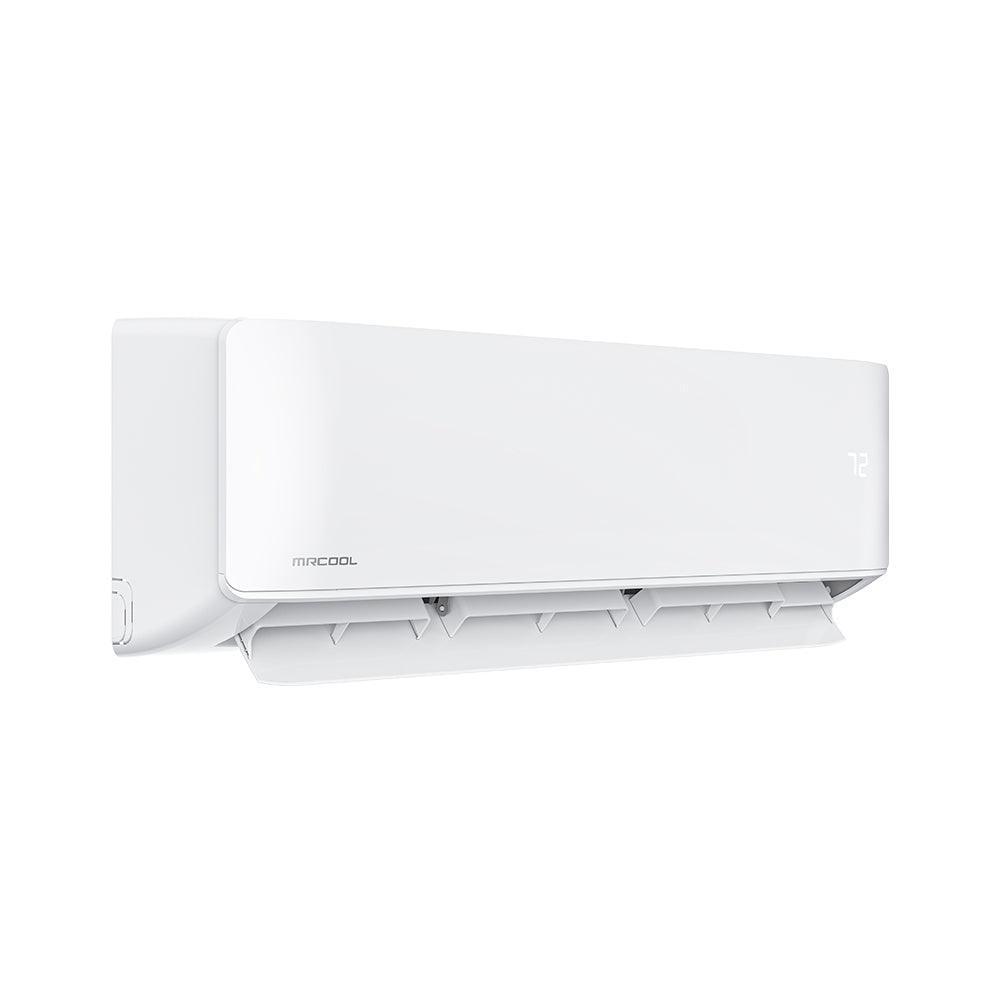

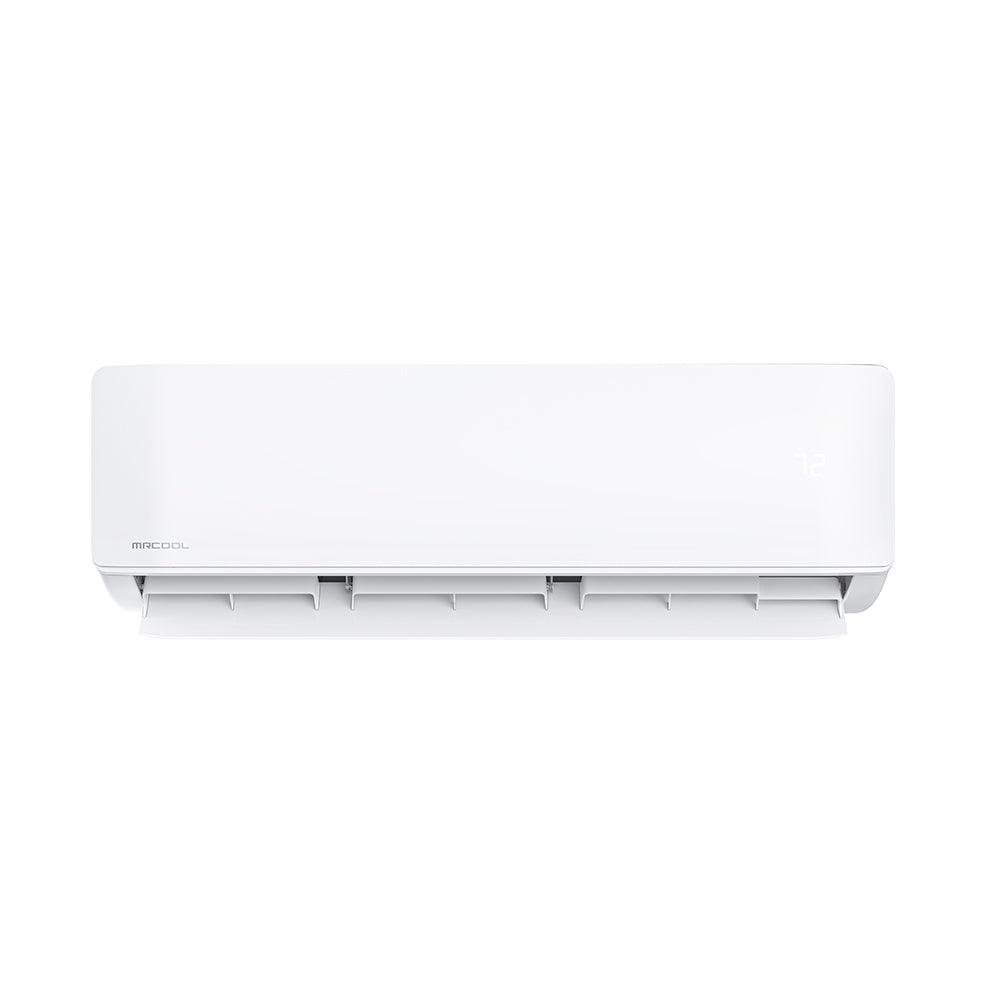

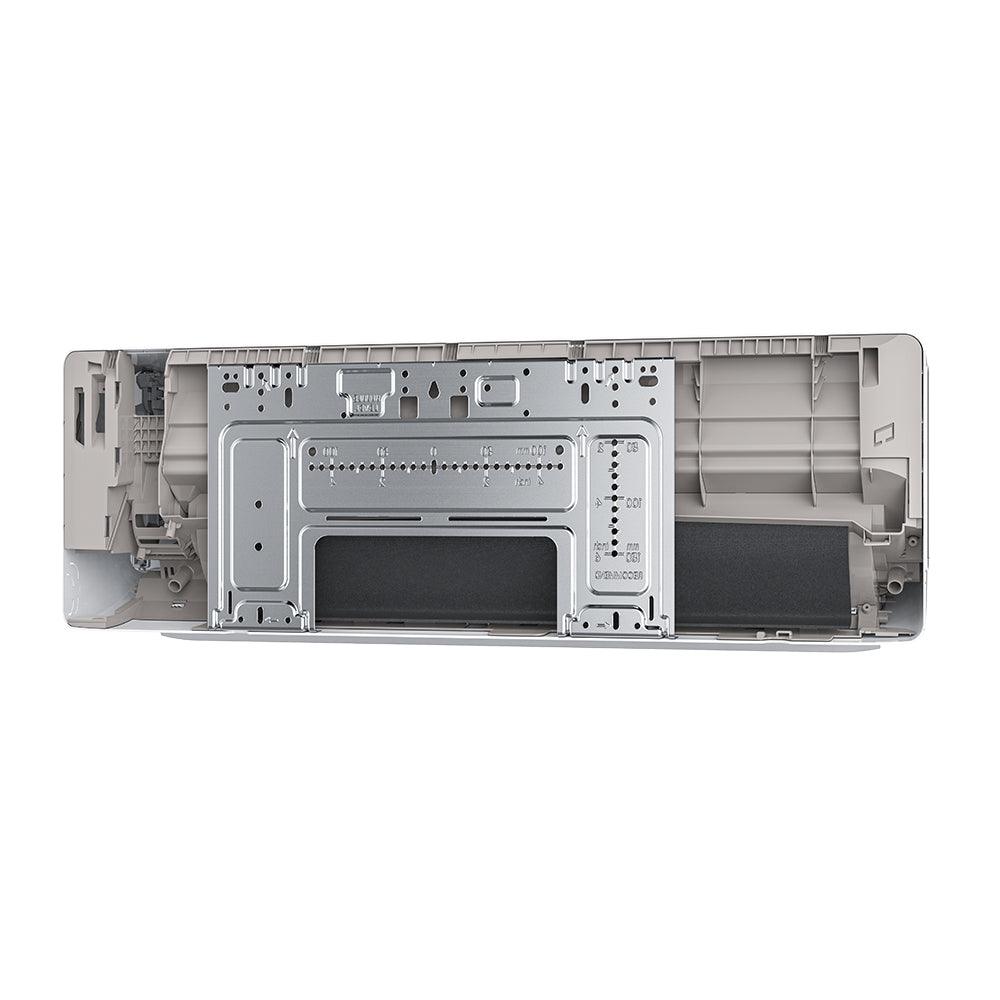

Air Handler, 18K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to
- 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

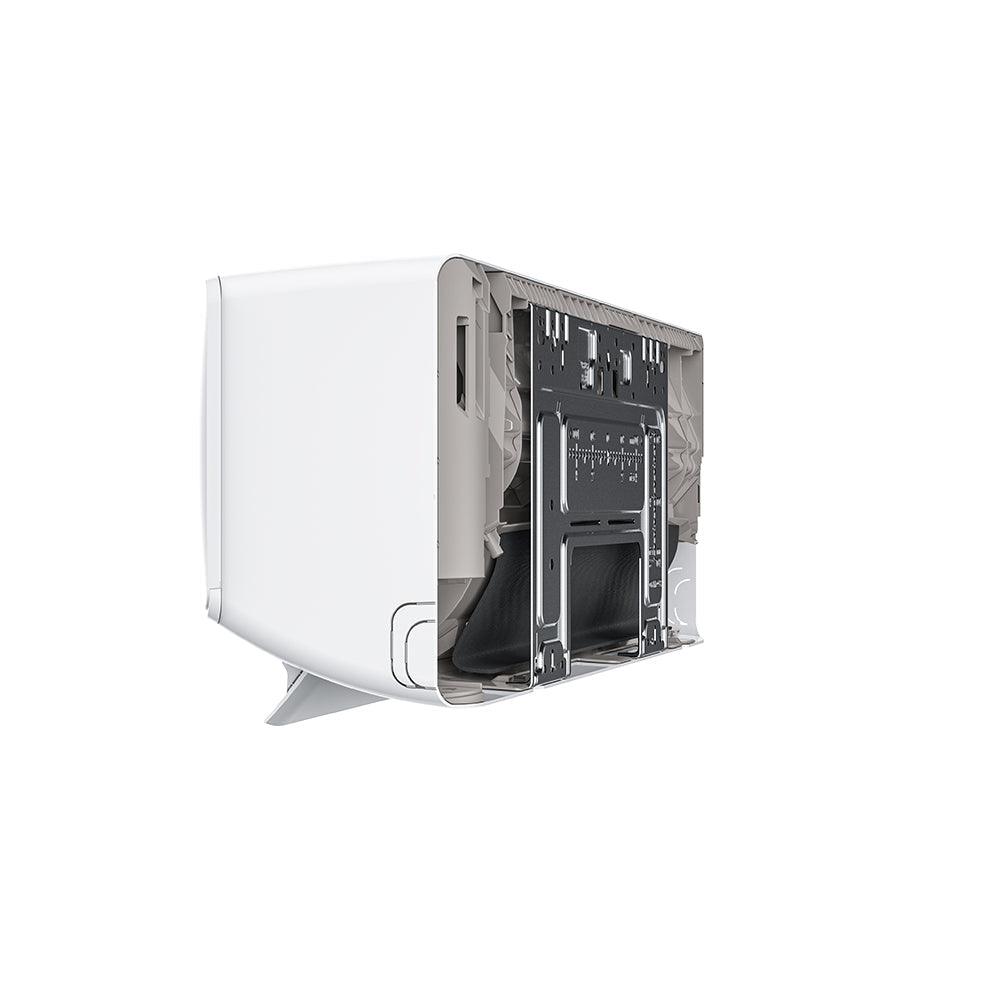

- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 35 ft., Quantity 2
- This 35 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
PRODUCT SPECIFICATIONS:
Condenser Specifications
Product Dimensions | 37.24'W x 16.14'D x 31.89'H |
Cooling Capacity | 36,000 BTU |
Heating Capacity | 36,000 BTU |
Zone Capacity | 4 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
SEER | 21.5 |
EER | 10.5 |
Voltage | Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 18K BTU
Product Dimensions | 42.52'W x 8.90'D x 13.19'H |
Mount Type | Wall |
Cooling Capacity | 18,000 BTU |
Heating Capacity | 18,000 BTU |
Registered Warranty | 5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
Length | 35 Feet |
Liquid Line Size | 1/4' |
Suction Line Size | 1/2' |
