PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler and five Remotes. The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x4)
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
This package does not include linesets, don't forgot to scroll up and add them!
Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
- 20.5 SEER efficiency rating.
- Works In All Environments. The
- capability to continue to deliver heating performance when temperatures reach
- 5°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

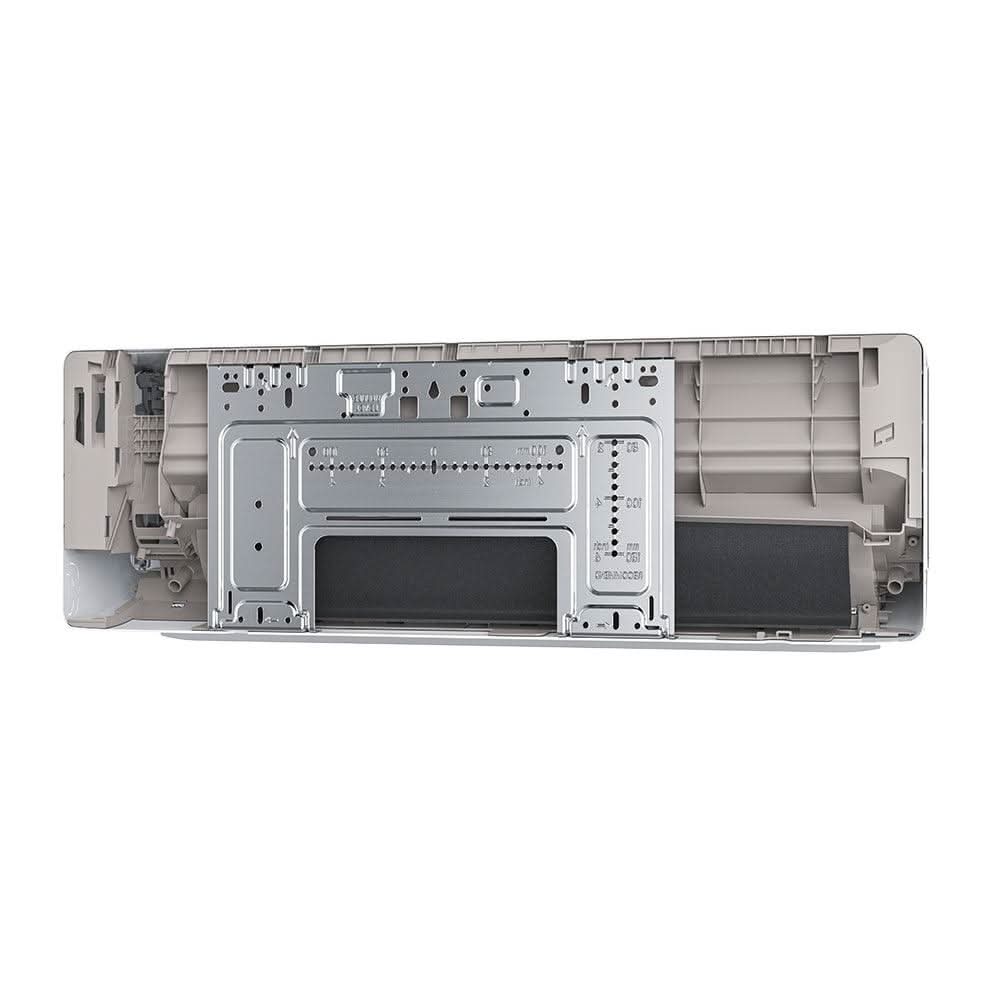

Air Handler, 9K BTU, Quantity 4
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to
- 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions | 37.48'W x 16.34'D x 52.48'H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57'W x 7.44'D x 11.69'H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
| Product Dimensions | 31.57'W x 7.44'D x 11.69'H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
