MRCOOL DIY Mini Split - 54,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909090918

MRCOOL DIY Mini Split - 54,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909090918

$5,306.00 USD
$6,525.99 USD $5,306.00 USD
Save $1,219.99 Sold out
Shipping calculated at checkout.

⛔ Discontinued
🔄 Replaced by 5th Gen

SKUDIY-B-548HP0909090918

TypeComplete System

Refrigerant Type: R-410A

❌ Out of Stock

This product is currently unavailable.
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

Call Us Chat Now Design Your Own Mini Split Tool

PRODUCT DESCRIPTION

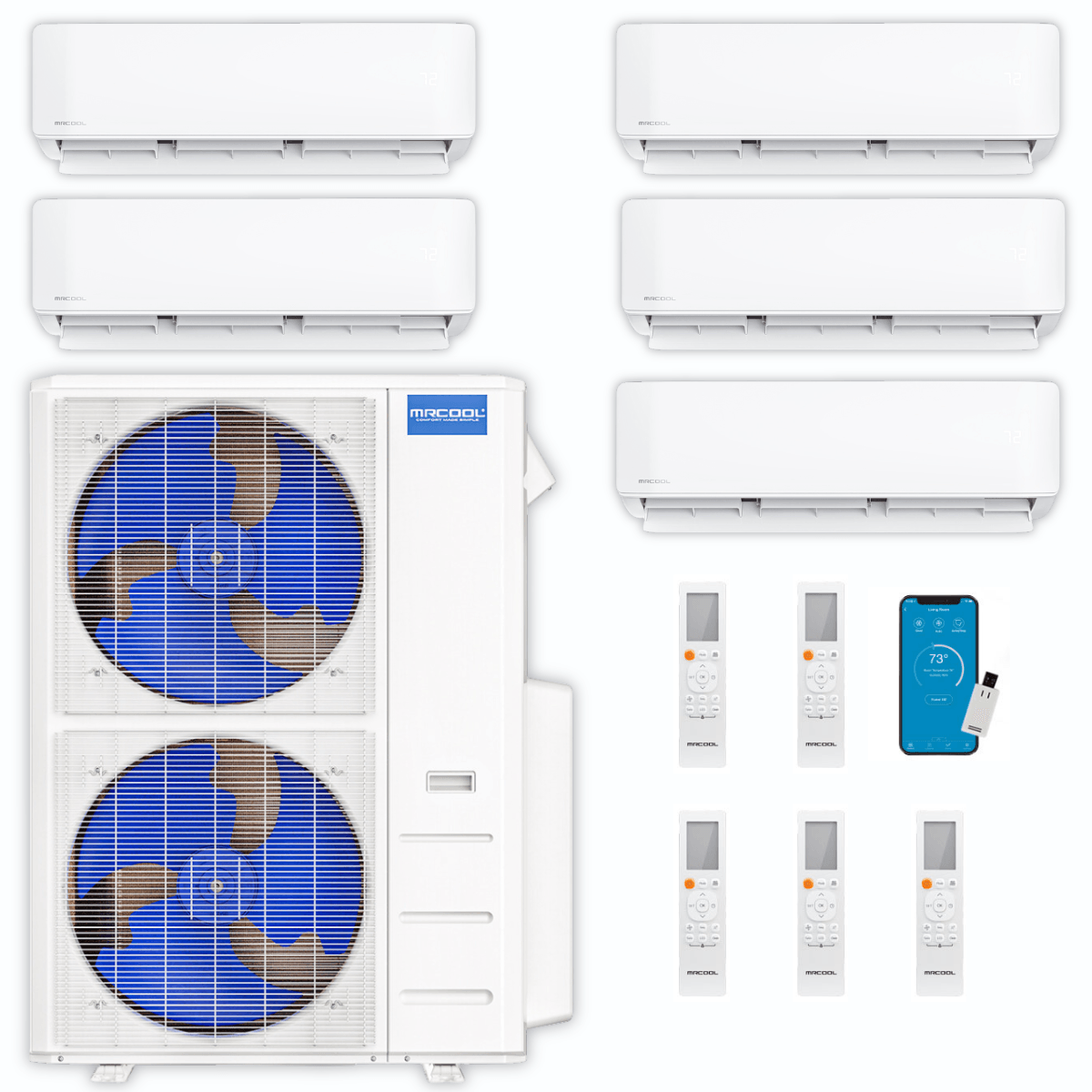

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, four 9K and one 18K BTU Wall Mount Air Handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

Mini Split System Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

The Base Price does not have the lineset and communication wire for each air handler, Make Sure You Select Line Sets/Control Wire Options for Each Zone.

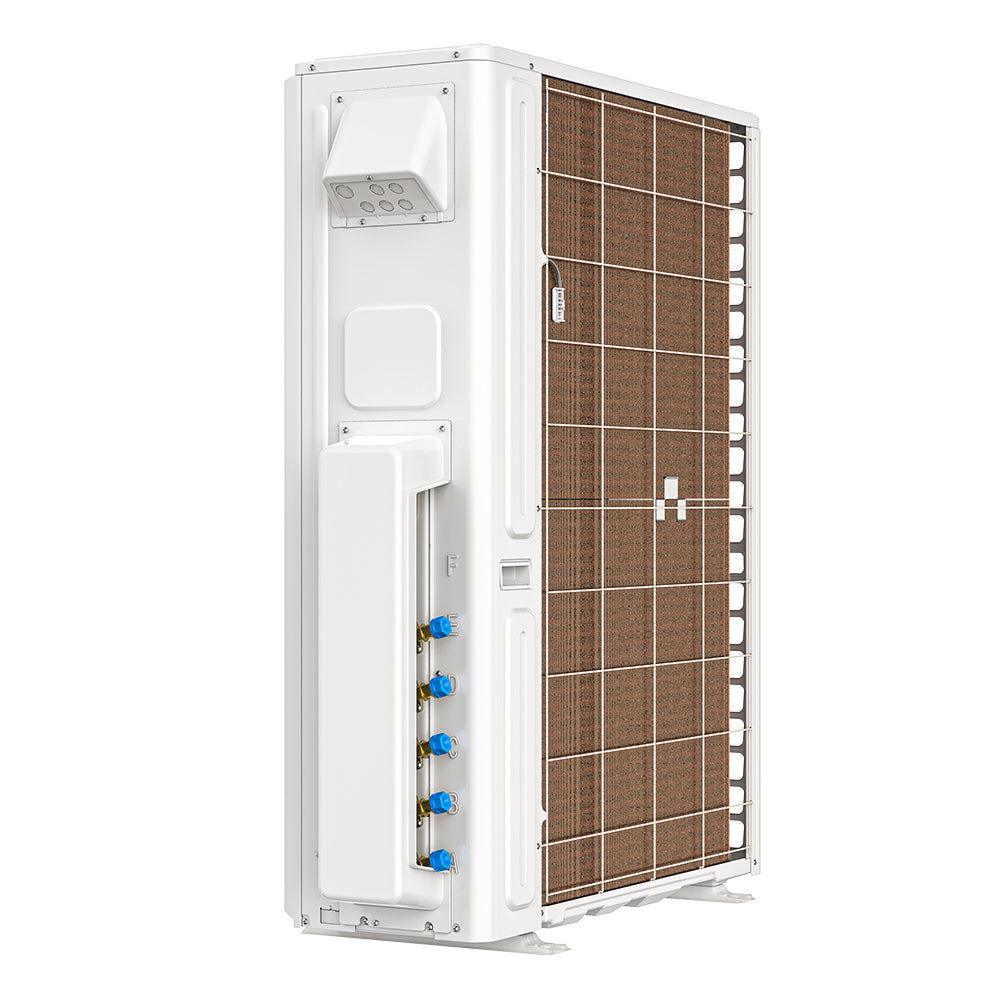

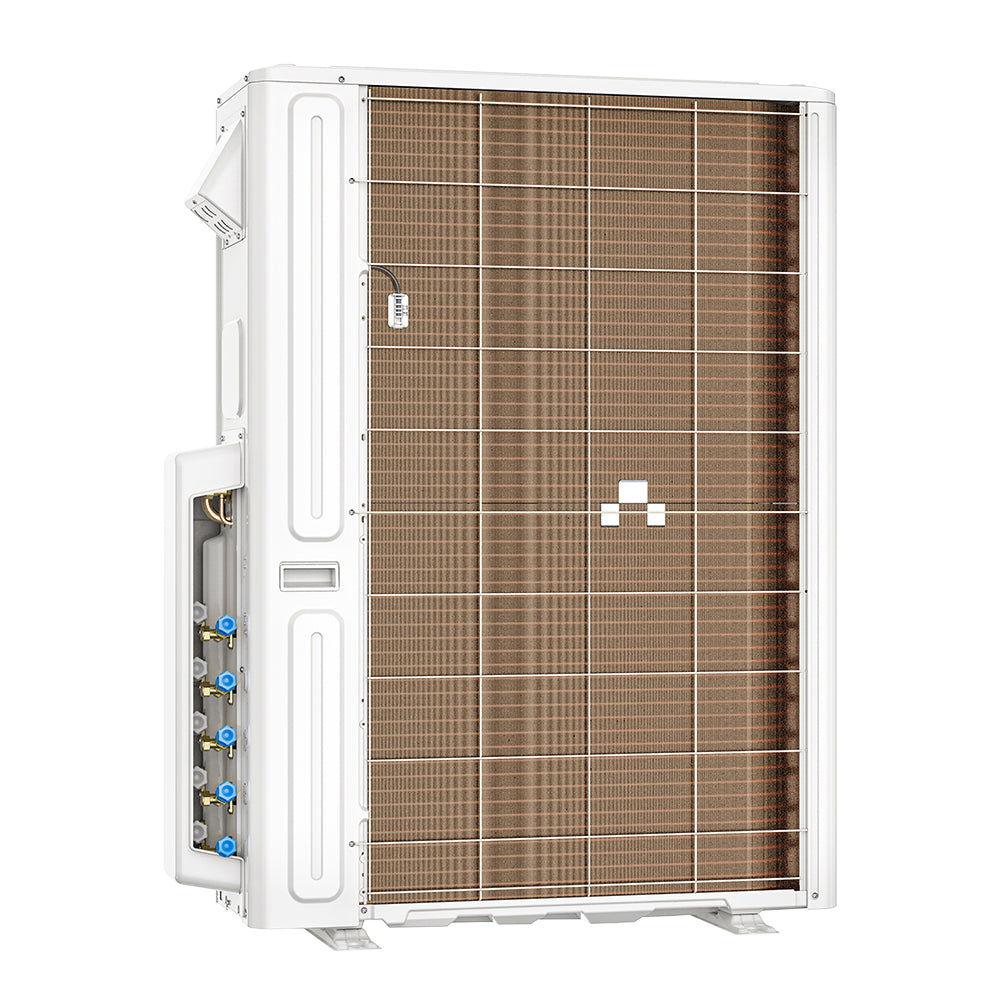

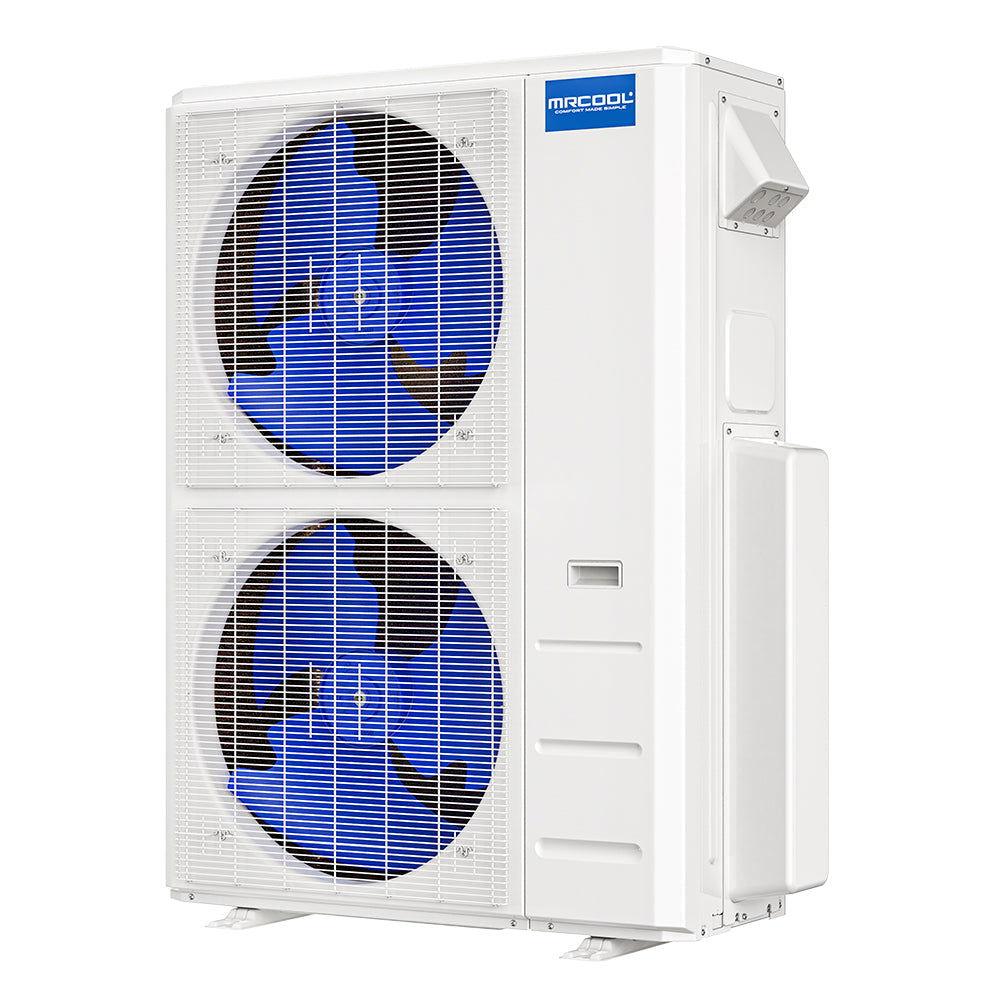

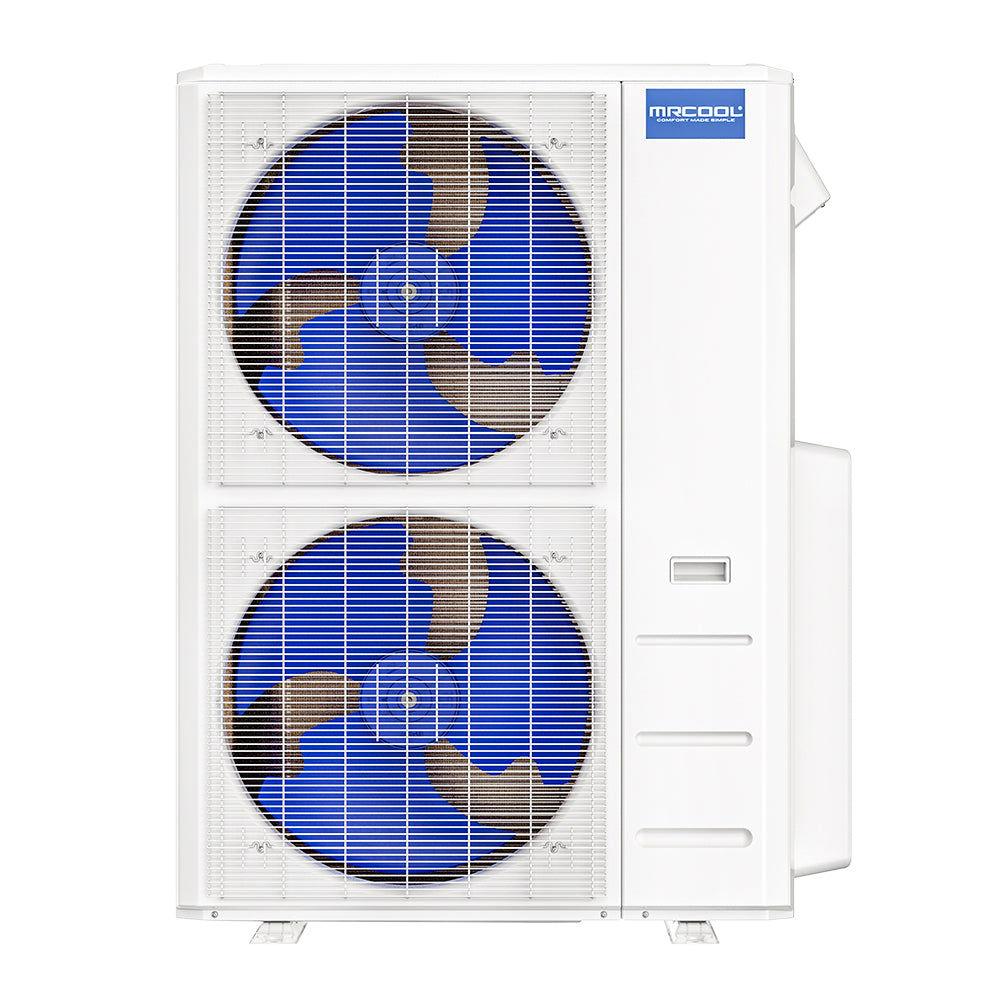

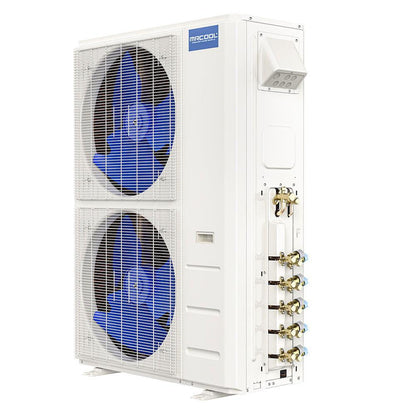

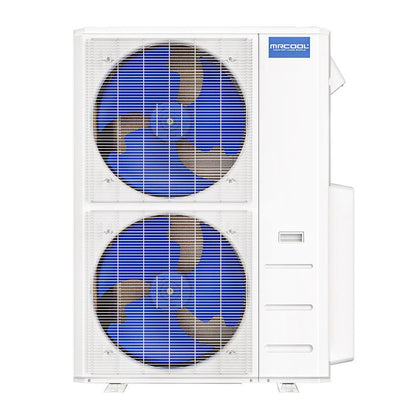

Condenser 48K BTU

  • Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

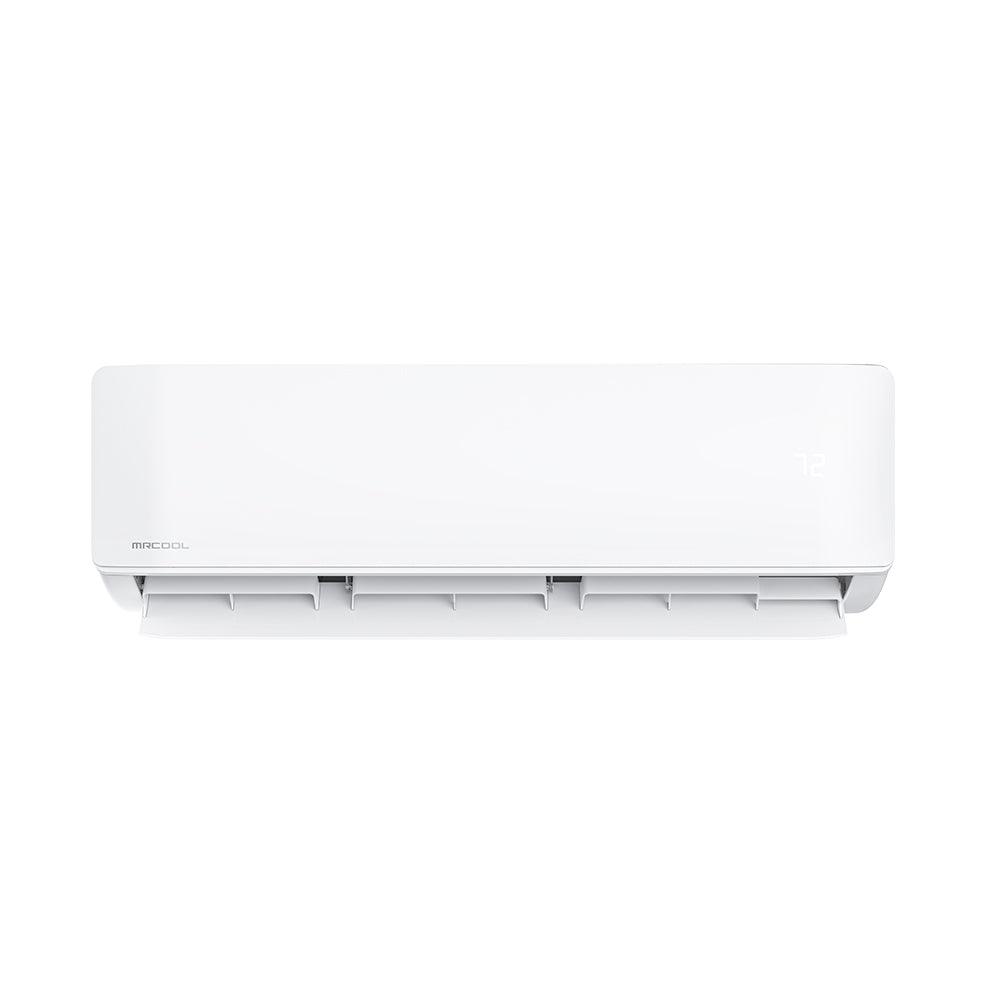

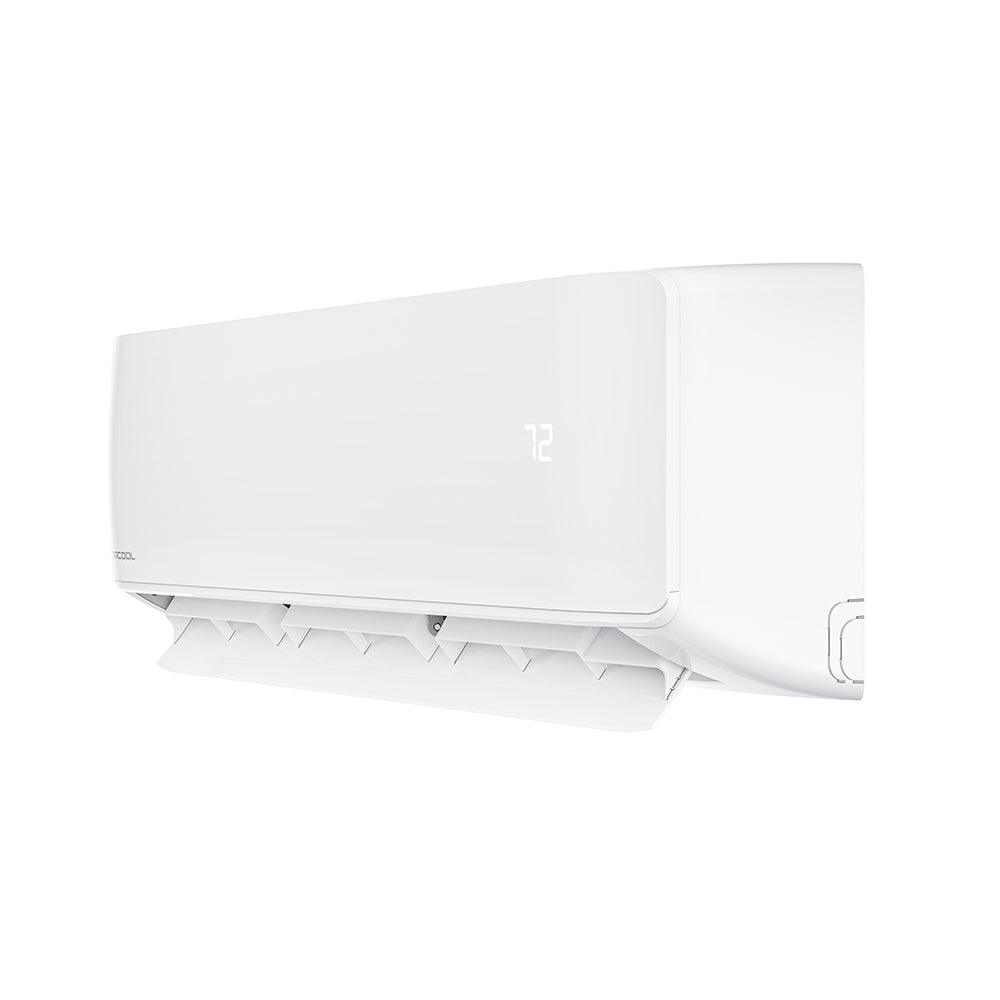

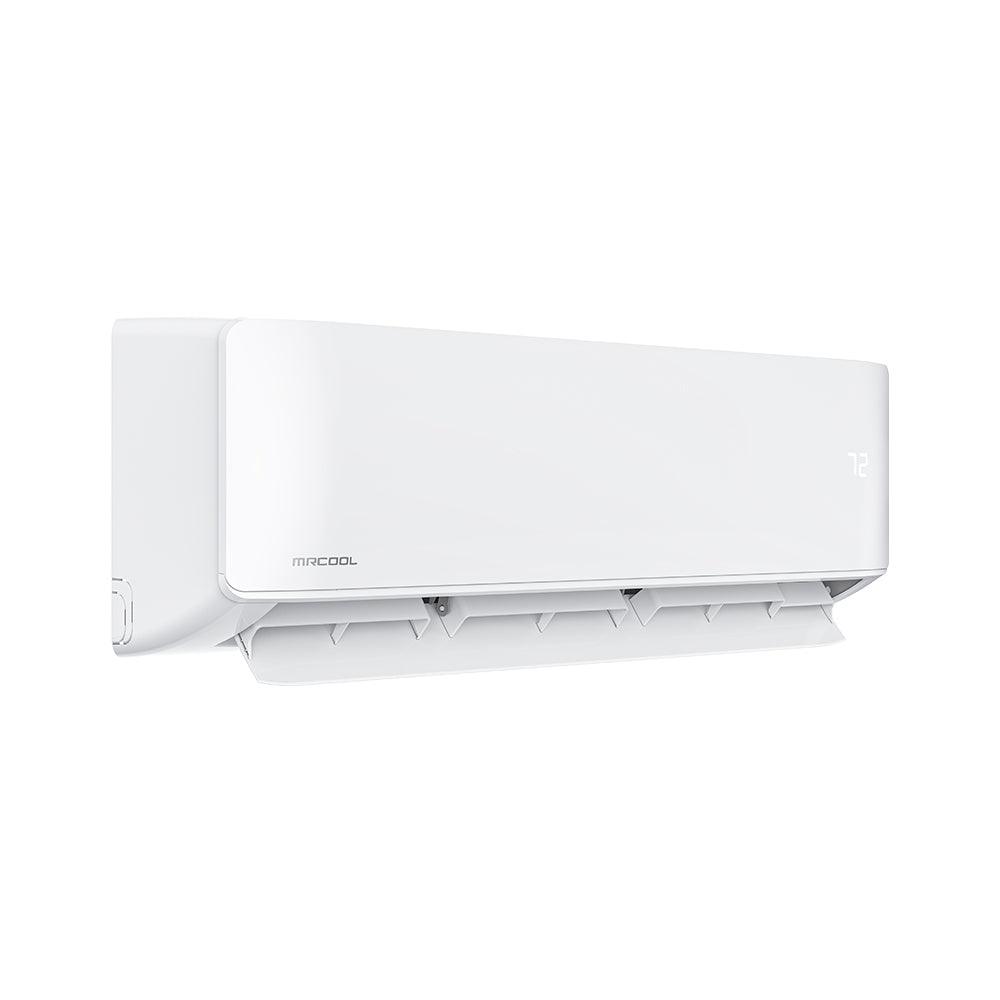

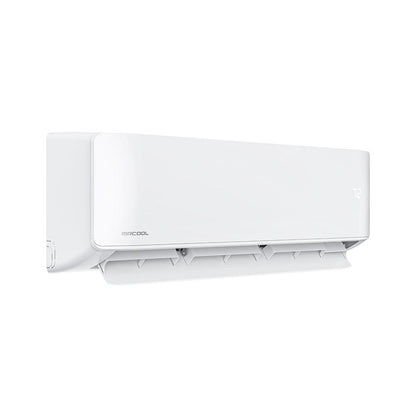

    Air Handler 9K BTU

    • Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

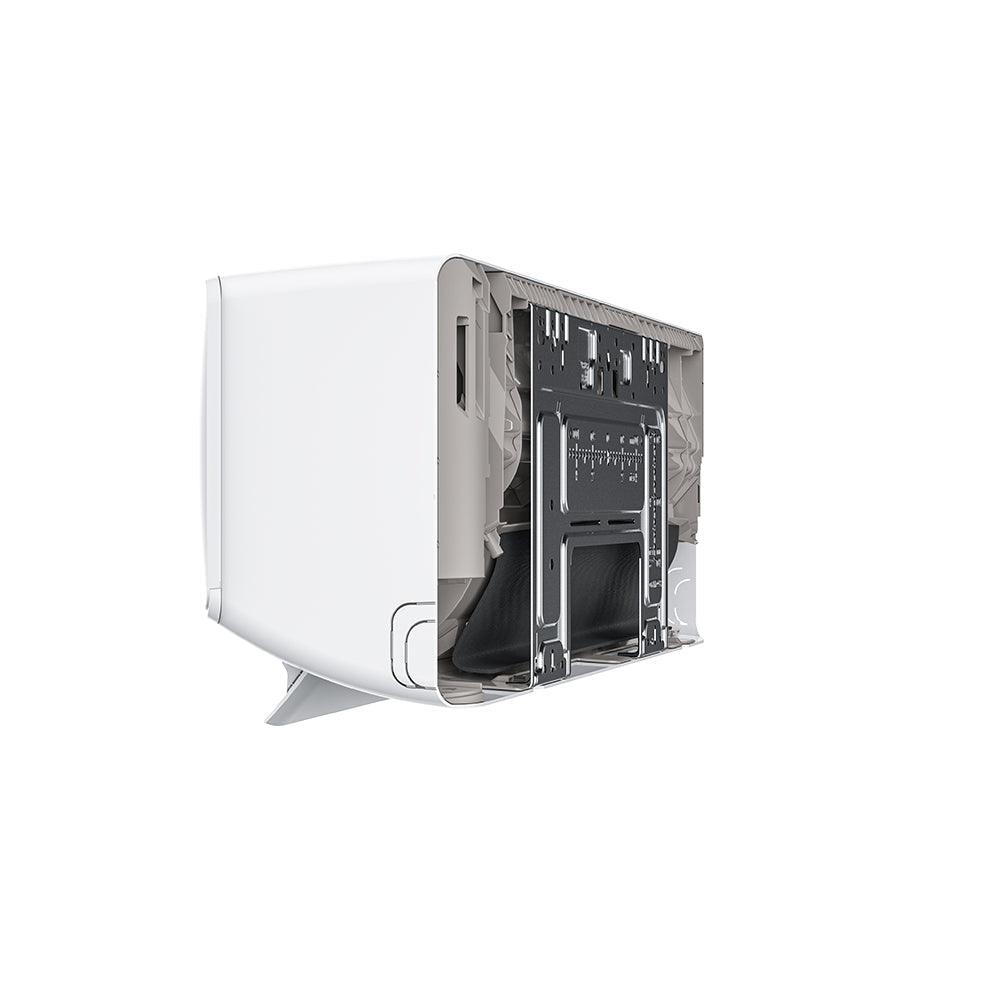

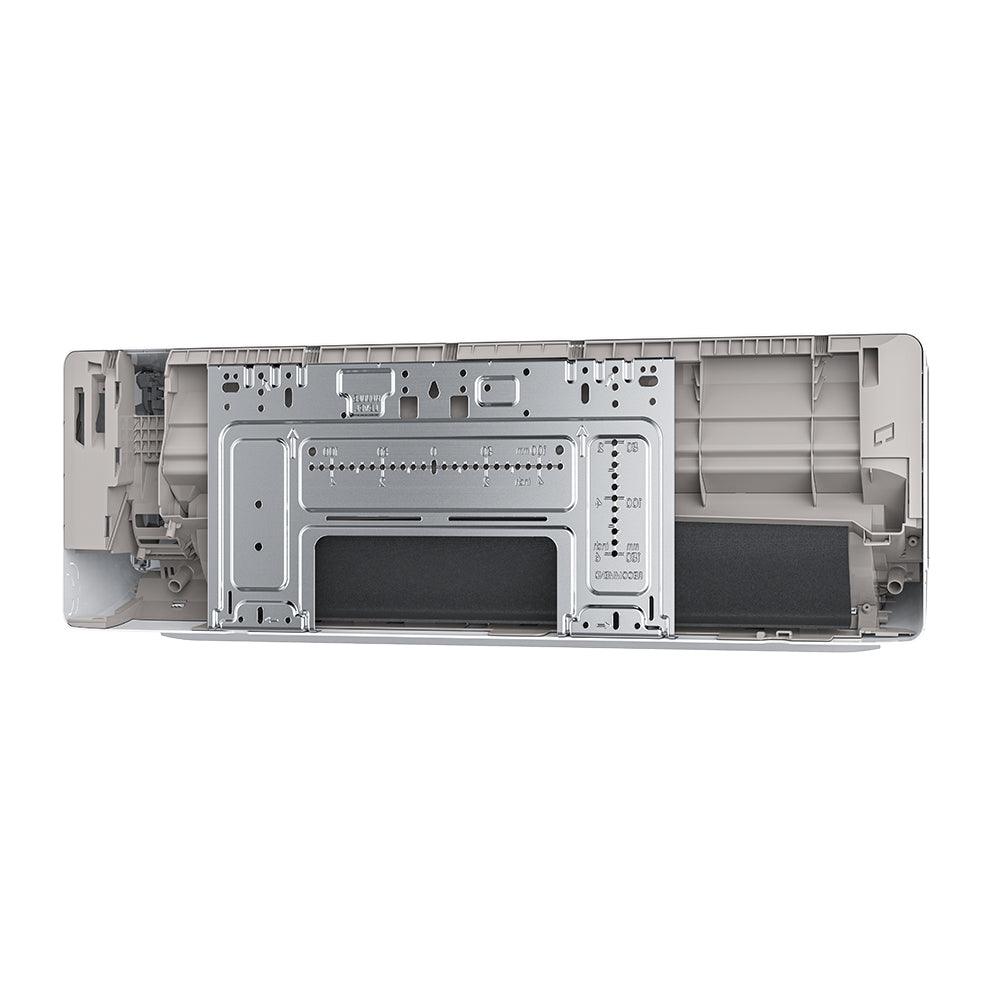

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler 18K BTU

    • Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      PRODUCT SPECIFICATIONS:
      Condenser

      Product Dimensions

      37.48'W x 16.34'D x 52.48'H
      Cooling Capacity 48,000 BTU

      Heating Capacity 48,000 BTU

      Zone Capacity 5
      Cool Mode - Outdoor Operating Temperature Range 5°F ~ 122°F
      Heat Mode - Outdoor Operating Temperature Range 5°F ~ 75.2°F
      SEER2 20.50

      EER2 11
      HSPF2 9.2
      Voltage

      Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty 7 Years Replacement on Compressor, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 31.57'W x 7.44'D x 11.69'H

      Mount Type Wall
      Cooling Capacity

      9,000 BTU
      Heating Capacity 9,000 BTU

      Registered Warranty       		5 Years Parts
      Modes Auto (Auto selects Cool, Heat or Fan-Only)
      Cool
      Heat
      Dry
      Fan Only
      Sleep


      Air Handler 18K BTU

      Product Dimensions 42.52'W x 8.90'D x 13.19'H

      Mount Type Wall
      Cooling Capacity

      18,000 BTU
      Heating Capacity 18,000 BTU

      Registered Warranty       		5 Years Parts
      Modes Auto (Auto selects Cool, Heat or Fan-Only)
      Cool
      Heat
      Dry
      Fan Only
      Sleep


      WHAT'S INCLUDED

      • Pre-Charged Line Set

      • Remote Control

      • Communication Wire

      • Condenser

      • Air Handler
