4 Zone Bundle

MRCOOL DIY 5th Gen Multi-Zone 4-Zone 36,000 BTU 23 SEER2 (9K + 9K + 12K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

MRCOOL DIY 5th Gen Multi-Zone 4-Zone 36,000 BTU 23 SEER2 (9K + 9K + 12K + 18K) Ductless Mini-Split Air Conditioner and Heat Pump

$5,227.00 USD
$6,428.99 USD $5,227.00 USD
Save $1,201.99 Sold out
Shipping calculated at checkout.

SKUDIYM436HPW04C00

Type36K

Refrigerant Type: R-454B

✅ This item is in stock!

More than 30 available

Estimated Delivery: November 20 – November 22

Based on order date & typical delivery times.
• Orders Typically ship within 2 business days

Don't forget your pre-charged line sets.
Each zone/air handler will need its own length — click here to select.
16'25'35'41'50'60'66'75'
MRCOOL Pre-Charged Line Set
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

Call Us Chat Now Design Your Own Mini Split Tool

PRODUCT DESCRIPTION

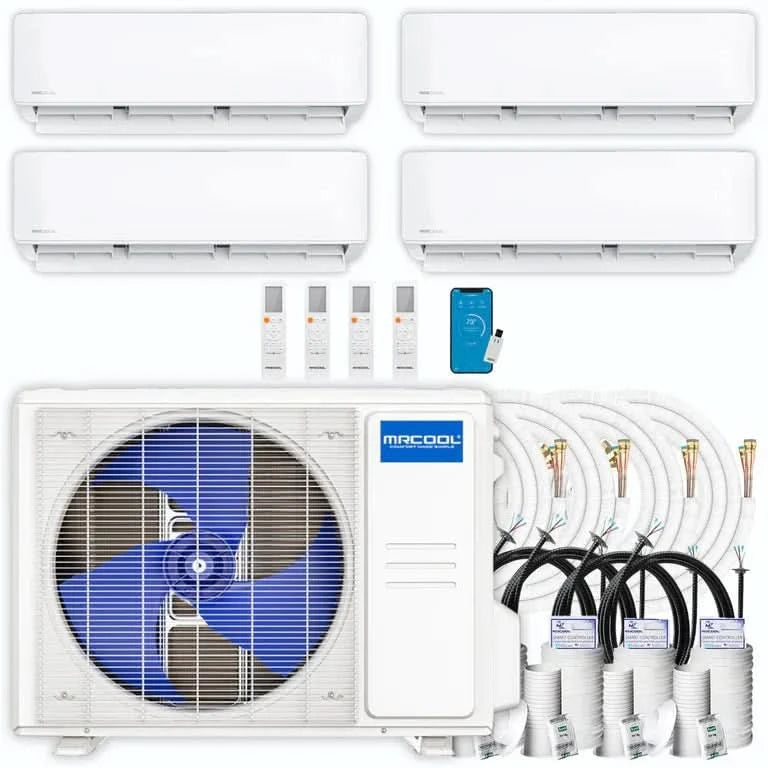

MRCOOL DIY 36K BTU Multi-Zone Four Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!

Heat or cool quad zones with the MRCOOL DIY Multi-Zone 36,000 BTU 23 SEER 4 Zone Ductless Heat Pump Split System - 9K + 9K + 12K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 36,000 BTU capacity. The indoor air handlers are 9,000 btu (400sqft), 9,000 btu (400sqft), 12,000 btu (550sqft), and 18,000 btu (800sqft) and use the condenser's power to heat and cool up to approximately 2050 square feet total. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor, 5 Year Parts Manufacturer Warranty!

MRCOOL DIY MULTI 36,000 BTU series multi-zone systems can support up to five indoor units. Not enough? The DIY MULTI 48,000 BTU system can support up to SIX indoor units.

The MRCOOL DIY Multi-Zone 36,000 BTU 23 SEER 4 Zone Ductless Heat Pump Split System - 9K + 9K + 12K + 18K units are super easy to install and require no special training or expensive specialty tools. The DIY system includes Quick Connect lines that are pre-charged with eco-friendly R-454B refrigerant. Due to the Quick Connect line set, you don’t have to hire an HVAC technician to complete the install. We also have simple video instructions on how to install a DIY Multi-Zone unit yourself!

The MRCOOL DIY Multi-Zone 36,000 BTU 23 SEER 4 Zone Ductless Heat Pump Split System - 9K + 9K + 12K + 18K can cool through the Summer, heat through the Winter, and dehumidify through the wet seasons. Plus, you can quickly check the temperature of each room in your home from the easy to read digital display or from the MRCOOL Smart Controller mobile app. The display on the front of each indoor air handler unit can also display troubleshooting codes and alerts, so you are always aware of any issues with your system. Operate each unit wirelessly with either the included remote or with the MRCOOL Smart Controller app for Apple or Android devices. You also have the ability to control your mini-split unit with Amazon Alexa or Google Home.

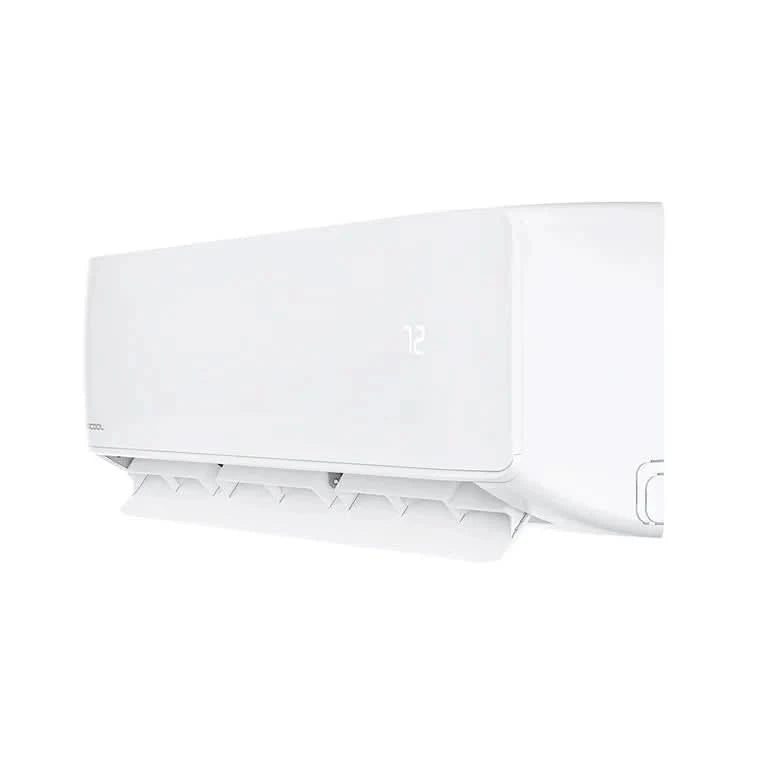

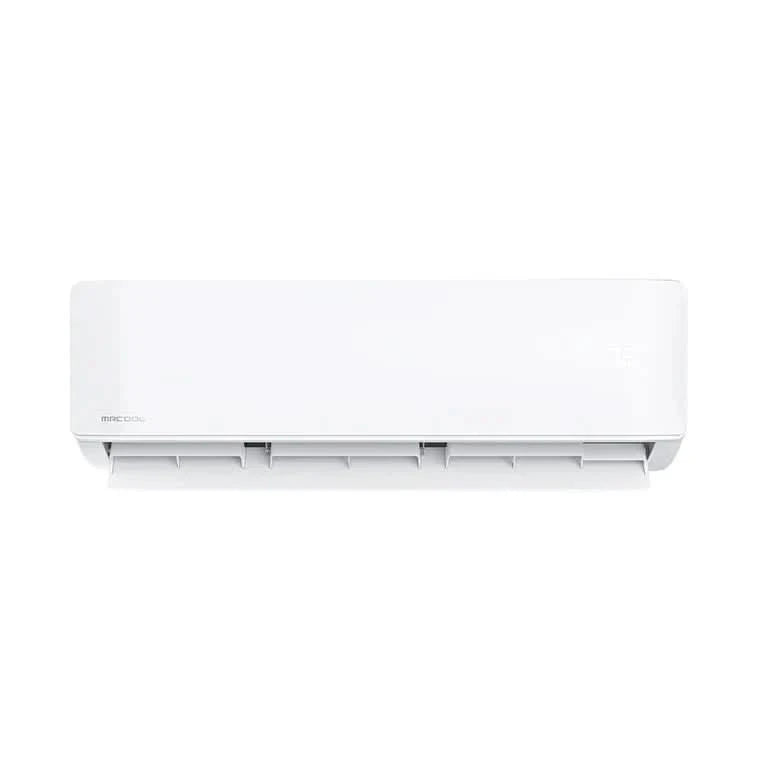

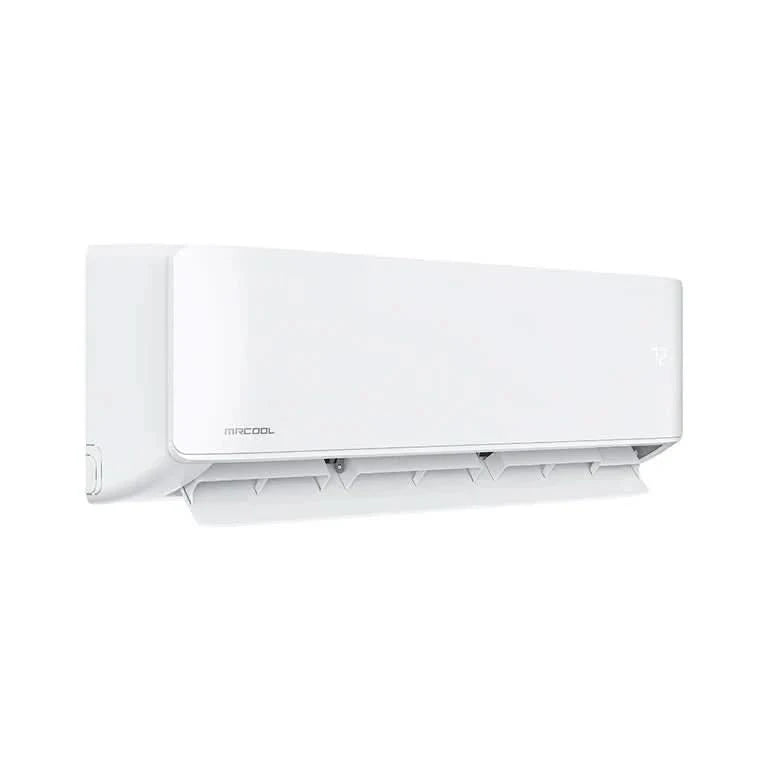

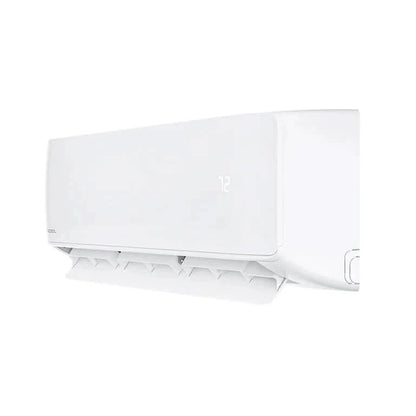

The four MRCOOL DIY Multi-Zone air handlers included in this set provide directional control of the heated or cooled air. This distributes the air evenly so everyone in the room can stay comfortable. If you are in a situation that requires forced cooling, you can set your MRCOOL DIY System to manual with the button located on the right side of the unit under the front panel. In this emergency operation mode, you can test the cooling operation of your unit after installation or to complete a maintenance task.

In auto mode, each unit provides air for your home at your desired comfort level. Set your desired temperature, and the HVAC unit will determine how much heat or air conditioning is needed. You can also set this system to a drying function, which will continue to control the space’s air temperature while dehumidifying.

Use the sleep mode at night to save money on your utilities bills and use less energy. Sleep mode operates in an 8 hour window once turned on. In each of the first two hours within this window, the unit will drop or rise to a more moderate temperature by 2°F. For the remaining six hours, the unit functions at that more moderate temperature, keeping you comfortable enough as you sleep but reducing your energy usage.

Features:

  • Easy DIY® Installation
  • "Pre-charged DIY®
  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System
  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Follow Me® Feature
  • Low Ambient Cooling
