R-410A Refrigerant

DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C

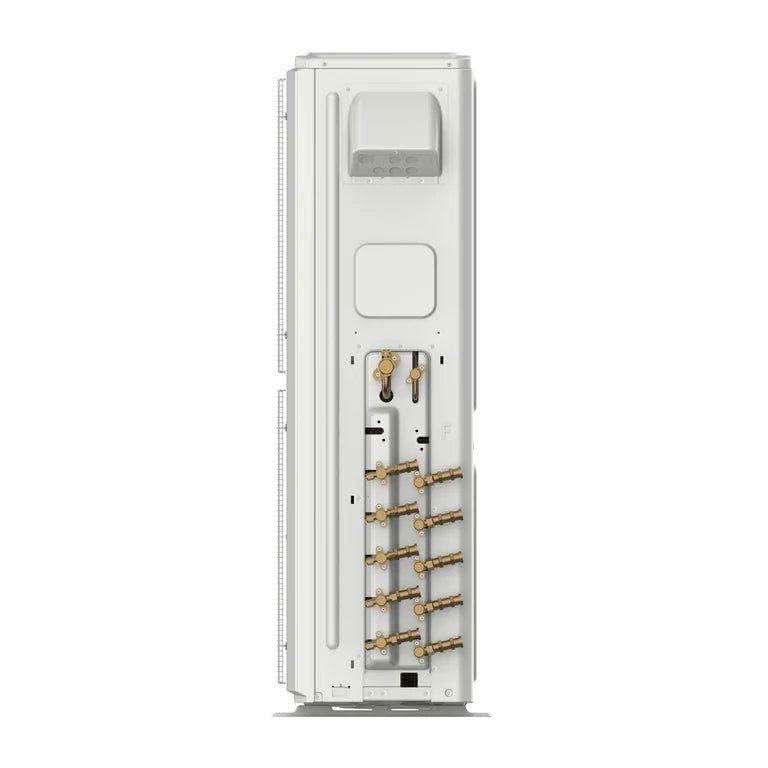

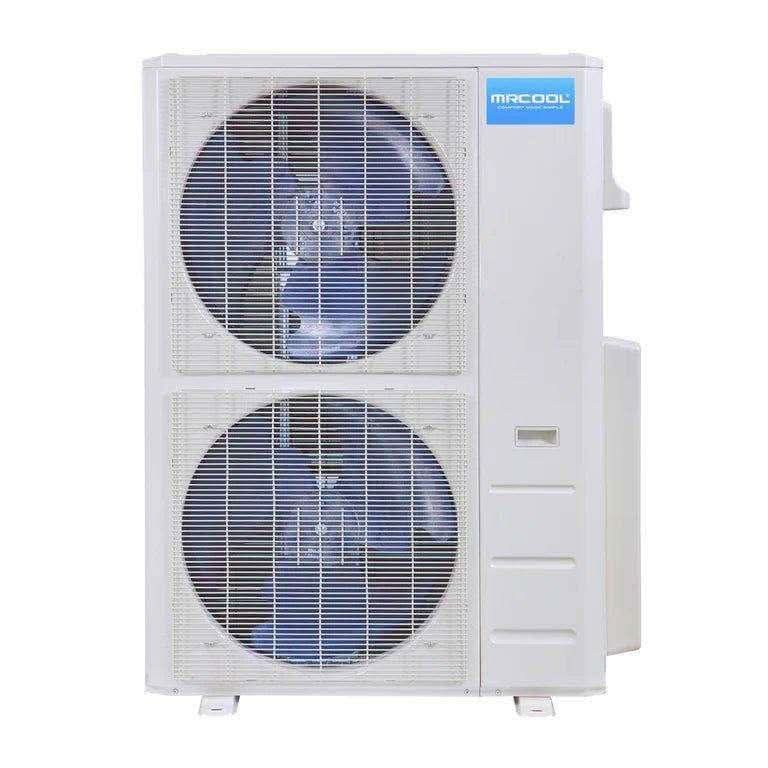

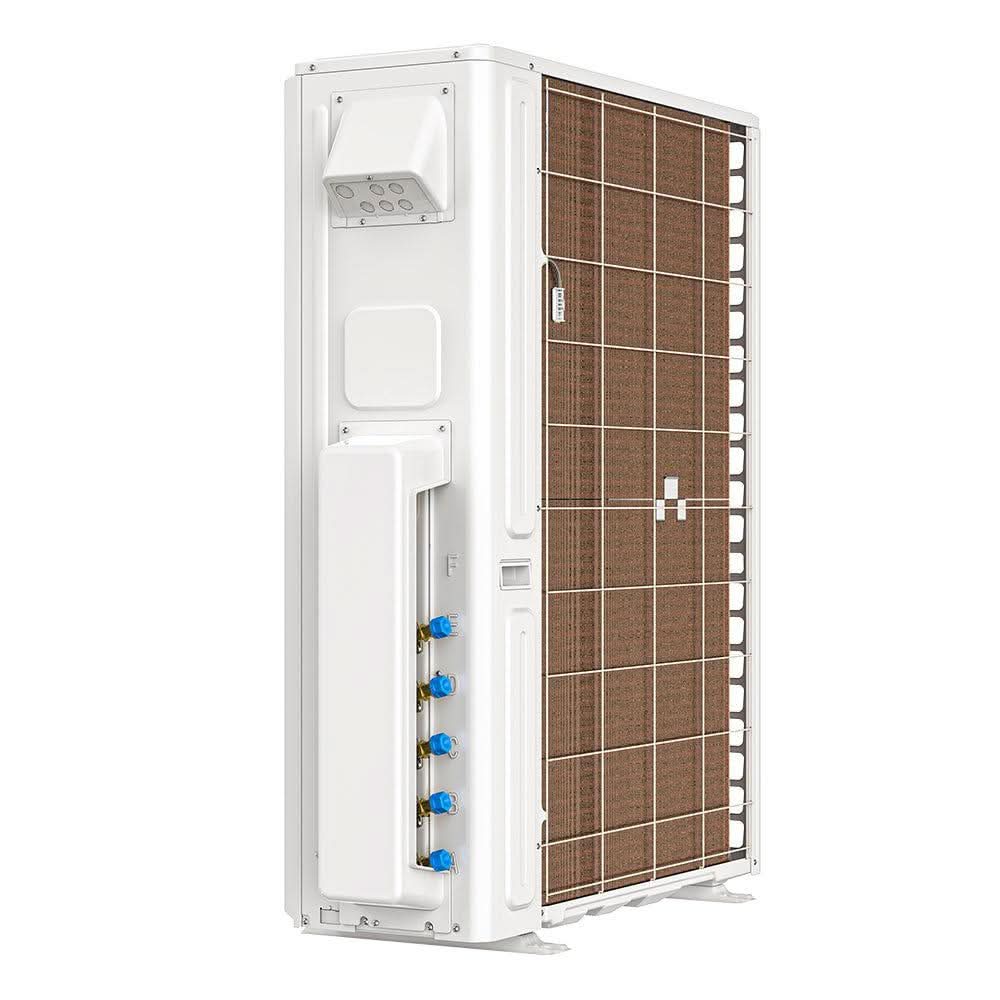

DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C

Regular price $2,814.00
Sale price $2,814.00 Regular price $3,573.78
You Save: $759.78
SALE Sold out
Shipping calculated at checkout.

⛔ Discontinued
🔄 Replaced by 5th Gen

SKUDIY-MULTI5-48HP230C

TypeMulti-Zone Condenser

Refrigerant Type: R-410A

❌ Out of Stock

This product is currently unavailable.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

Revolutionize Home Comfort with the 4th Generation MRCOOL DIY 48K BTU 5-Zone Ductless Heat Pump Condenser

Step into the future of home climate control with the MRCOOL DIY-MULTI5-48HP230C, a cutting-edge solution engineered to support up to 5 independent zones. This powerful, versatile condenser pairs effortlessly with select MRCOOL air handlers, achieving a SEER efficiency rating of up to 20.5 for optimal energy utilization and significant savings on utility bills.

Designed to deliver reliable heating and cooling performance, the DIY-MULTI5-48HP230C excels in extreme temperatures, maintaining dependable operation even as low as 5°F. Its durable construction is reinforced with Gold Fin® Condenser coating, ensuring outstanding corrosion resistance and longevity, even in coastal or high-humidity environments.

Hassle-Free Installation for Homeowners

This system sets itself apart with its DIY-friendly installation process, thanks to MRCOOL’s patented Pre-Charged Quick Connect Line Sets. Pre-filled with environmentally friendly R-410A refrigerant, these line sets eliminate the need for vacuuming or special tools. With only basic hand tools required, homeowners can confidently install their own multi-zone HVAC system, saving time and money.


Key Features:

  • Superior Energy Efficiency
    Achieves up to 20.5 SEER, delivering exceptional comfort while reducing energy costs.

  • Corrosion-Resistant Gold Fin® Condenser
    Provides robust protection in harsh weather conditions, extending the system’s lifespan in coastal and high-moisture areas.

  • Energy-Saving DC Inverter Technology
    Improves system performance and reduces energy consumption for eco-conscious operation.

  • Eco-Friendly Refrigerant
    Uses R-410A refrigerant, minimizing environmental impact while maximizing efficiency.

  • Comprehensive Warranty Coverage
    Comes with a 7-year compressor warranty and a 5-year parts warranty, with the option to register for a limited lifetime compressor warranty for added peace of mind.


The 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser represents the pinnacle of multi-zone HVAC innovation. Perfect for homeowners seeking efficient, reliable, and easy-to-install heating and cooling solutions, this system combines advanced technology with unmatched convenience.

Upgrade your home comfort today with MRCOOL—where DIY meets professional-grade performance.

SPECIFICATION & DIMENSIONS


Attribute Details
Product Dimensions 37.48"W x 16.34"D x 52.48"H
Product Weight 222.89 lbs
SEER2 20.50
EER2 11
HSPF2 9.2
SEER 20.5
EER 11
HSPF hspf4/hspf5 : 11/8.5
CFM 4500
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Voltage 208V-230V/60HZ/40-60A
Phase 1
Cycle 60 Hz
Max Fuse Breaker 60 A
Min Circuit Ampacity 40 A
Color White
Zone Capacity 5
Refrigerant Type R-410A
Refrigerant Volume 162 oz
Decibel Rating 61.5 dBA
Inverter Yes
Min Ambient Cool 5°F ~ 122°F
Min Ambient Heat 5°F ~ 75.2°F
Max Lineset Length 221.5 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in + 1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 900/850/800/750
WiFi Compatibility Yes
App Compatibility Yes
Compatible with IOS, Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty Limited Lifetime Compressor
