NEW R-454B Refrigerant

MRCOOL Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System, CENTRAL-24-HP-230B00-O

MRCOOL Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System, CENTRAL-24-HP-230B00-O

Regular price $3,416.00 USD
Regular price $4,201.99 USD Sale price $3,416.00 USD
Save $785.99 Sold out
Shipping calculated at checkout.

❄️ R-454B Pre-Charged
🔥 Cold-Climate Ready
🧰 DIY Install
🔧 Multi-Position AHU

SKUCENTRAL-24-HP-230B00-O

TypeDucted Heat Pump System

Pre-Charged R-454B Line Set Length
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System

Efficient Year-Round Comfort with Smart Technology & Sustainable R-454B Refrigerant

Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system provides efficient and reliable climate control all year long. Whether you’re battling scorching summers or freezing winters, this high-efficiency SEER2-rated unit (up to 18.3 SEER2 & 10 HSPF2-4) ensures superior comfort while lowering energy costs.

Powered by the latest R-454B refrigerant, this eco-friendly system reduces environmental impact without compromising performance. Seamlessly integrate with the MRCOOL® VersaPro® Central Ducted Air Handler and control everything effortlessly with the MRCOOL® Smart Thermostat or SmartHVAC App.


Key Features & Benefits

🌡️ Year-Round Performance & Energy Efficiency

18.3 SEER2 & 10 HSPF2-4 for optimized heating and cooling performance
✔ Operates efficiently in extreme cold and heat for reliable year-round comfort
Smart Energy Management reduces utility costs with precise climate control

🛠️ Smart & Easy Installation

✔ Works with No Vac® Quick Connect® Line Sets for a fast, hassle-free installation (line sets sold separately)
✔ Includes stub pipes and copper nuts for traditional flare nut configuration
Compact air handler design with multiple mounting options for flexible installation

🌿 Eco-Friendly & Long-Lasting Durability

✔ Uses R-454B refrigerant, a sustainable, next-generation cooling solution
Painted galvanized steel exterior on both condenser and air handler for maximum durability
Self-diagnostics panel ensures quick troubleshooting and easy maintenance

🖥️ Smart Control & Convenience

MRCOOL® Smart Thermostat included for precise, automated temperature control
SmartHVAC App compatibility allows remote monitoring & adjustments
✔ Supports voice control via Alexa, Google Assistant, & Siri

⚙️ Optional Upgrades & Customization

Compatible with an optional heat kit for additional warmth in colder climates
Versatile installation configurations – supports upflow, downflow, horizontal left/right setups
Industry-leading 10-year warranty on compressor, parts, and labor for peace of mind


What’s Included?

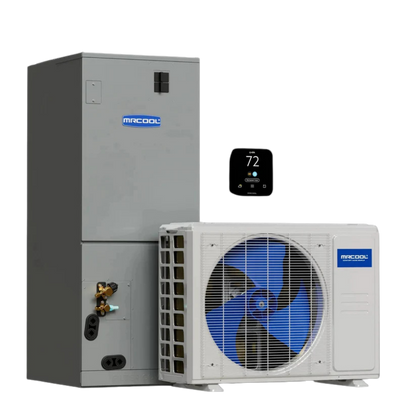

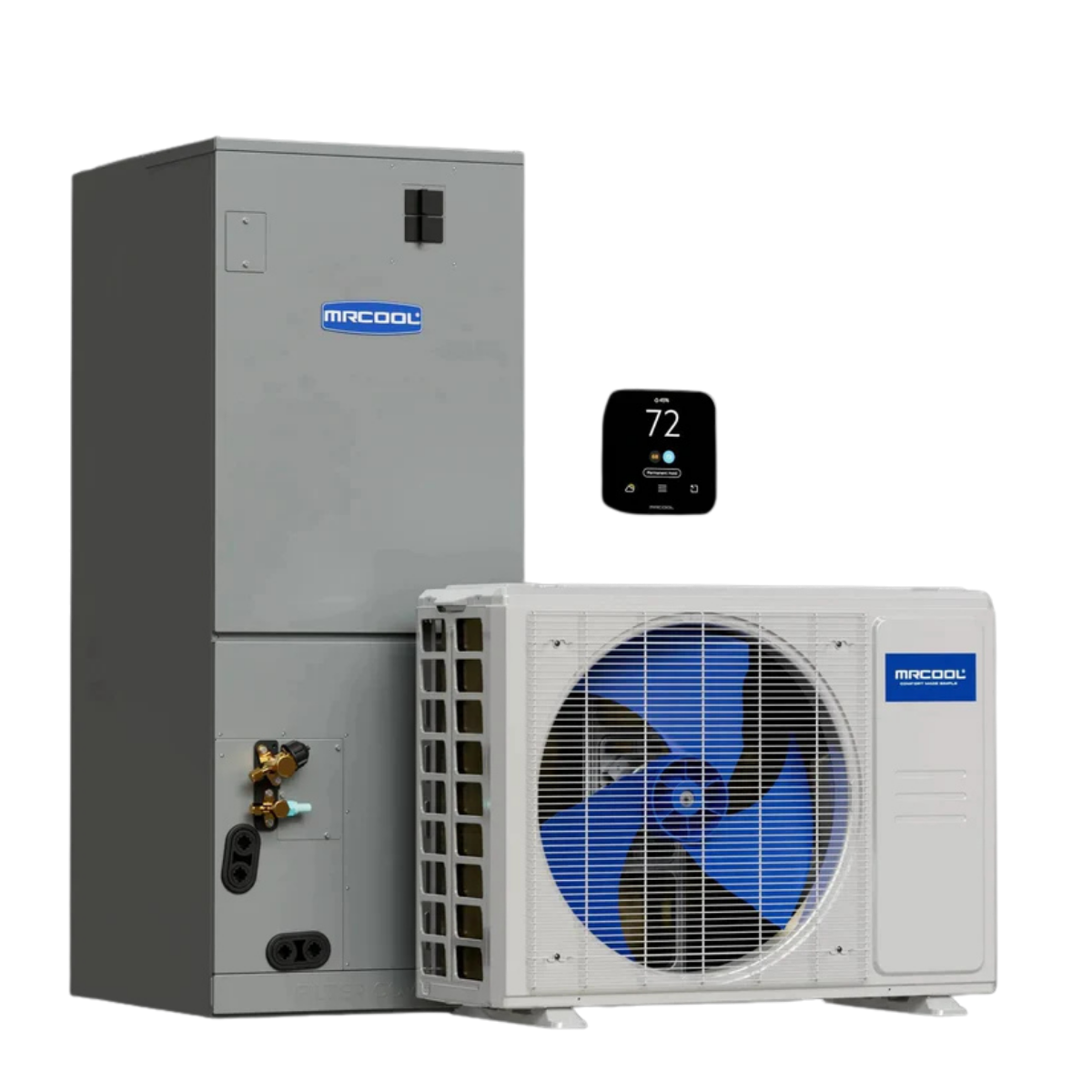

MRCOOL® Hyper Heat 24K BTU 2 Ton Condenser (CENTRAL-24-HP-230B00-O)
MRCOOL® VersaPro® 2 Ton Central Ducted Air Handler

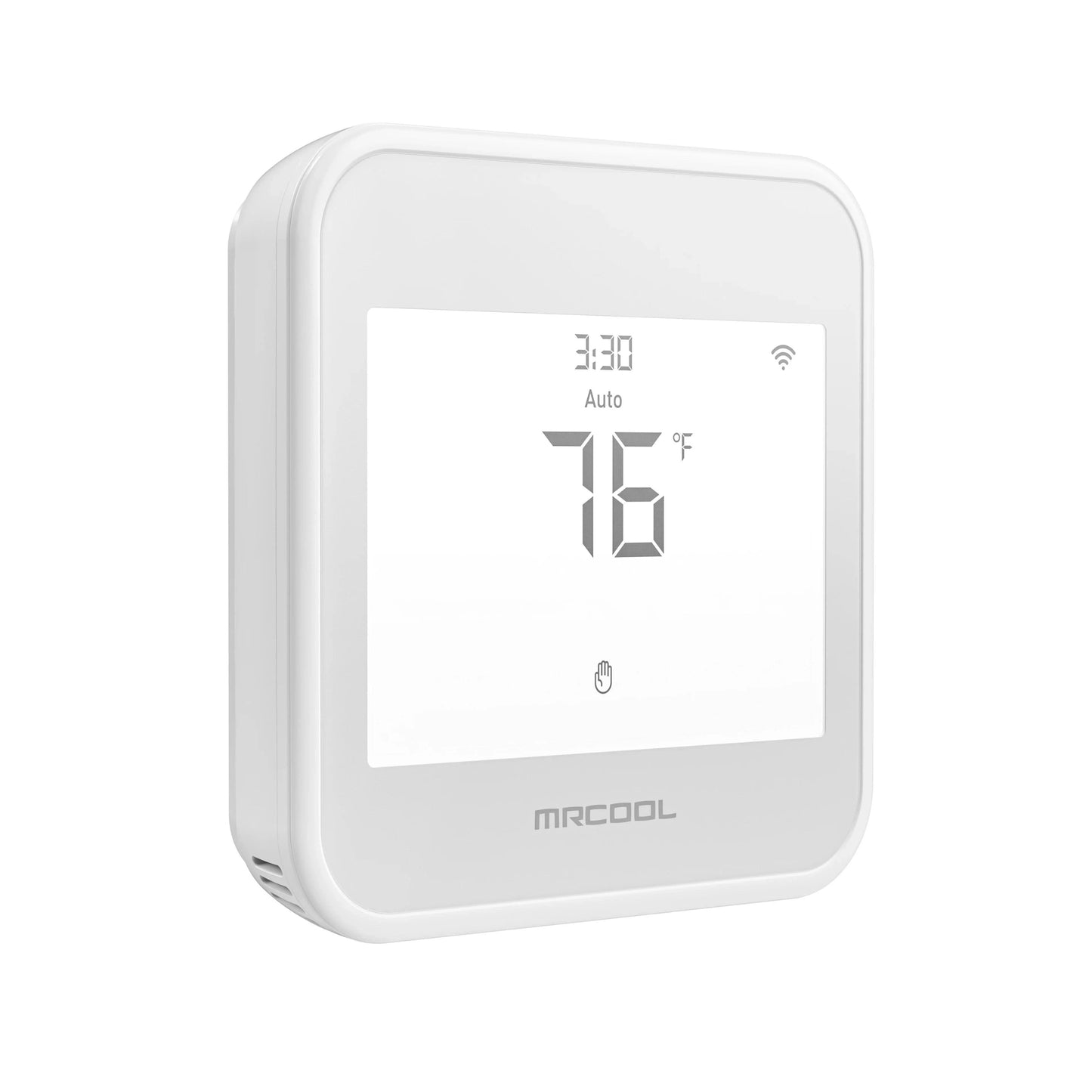

MRCOOL® Smart Thermostat

Important Note: This system is designed for ducted HVAC setups only. Line sets are not included but can be purchased separately.


Why Choose MRCOOL DIY Direct?

At MRCOOL DIY Direct, we offer nationwide delivery, expert support, and the best selection of MRCOOL® Hyper Heat systems. Whether you're upgrading your home’s HVAC or installing a new energy-efficient solution, this system is built for long-lasting performance, smart convenience, and cost savings.

🔹 Buy with confidence & enjoy year-round comfort with MRCOOL DIY Direct!

🛒 Shop Now & Upgrade Your Home’s HVAC Today!

SPECIFICATION & DIMENSIONS

Category Specification
Cooling Capacity (Btu/h) 23,000
SEER2 18.3
EER2 11.7
Heating Capacity (Btu/h) 24,000
HSPF2-4 10.0
HSPF2-5 8.0
Indoor Noise Level (Hi/Mi/Lo) 44 / 42 / 28 dB(A)
Outdoor Noise Level 60 dB(A)
Power Supply (Indoor) 208/230V ~ 60Hz, 1ph
Power Supply (Outdoor) 208/230V ~ 60Hz, 1ph
Min Circuit Ampacity (Indoor) 5.5 / 4.0 A
Max Fuse (Indoor) 15 A
Min Circuit Ampacity (Outdoor) 19.0 A
Max Fuse (Outdoor) 20.0 A
Indoor Unit Dimensions (WxDxH) 21.02 x 17.52 x 45.00 in
Indoor Packing Dimensions (WxDxH) 26.57 x 20.87 x 48.62 in
Indoor Net/Gross Weight 105.6 / 127.43 lbs
Outdoor Unit Dimensions (WxDxH) 35.04 x 13.46 x 26.50 in
Outdoor Packing Dimensions (WxDxH) 39.17 x 15.67 x 29.13 in
Outdoor Net/Gross Weight 102.29 / 109.13 lbs
Indoor Airflow (CFM Hi/Mi/Lo) 823 / 758 / 694 / 629
Outdoor Airflow (CFM) 1765.7
Refrigerant Type R-454B
Refrigerant Charge 74.08 oz
Piping Size (Liquid/Gas) 3/8" - 3/4"

COVERAGE AREA

2 Ton
