NEW R-454B Refrigerant

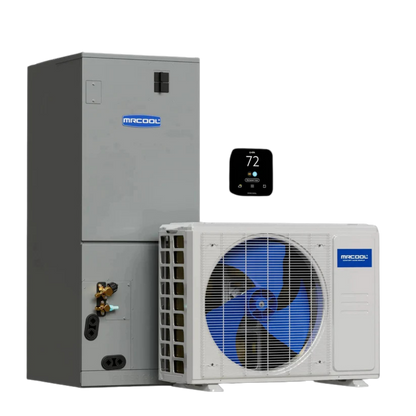

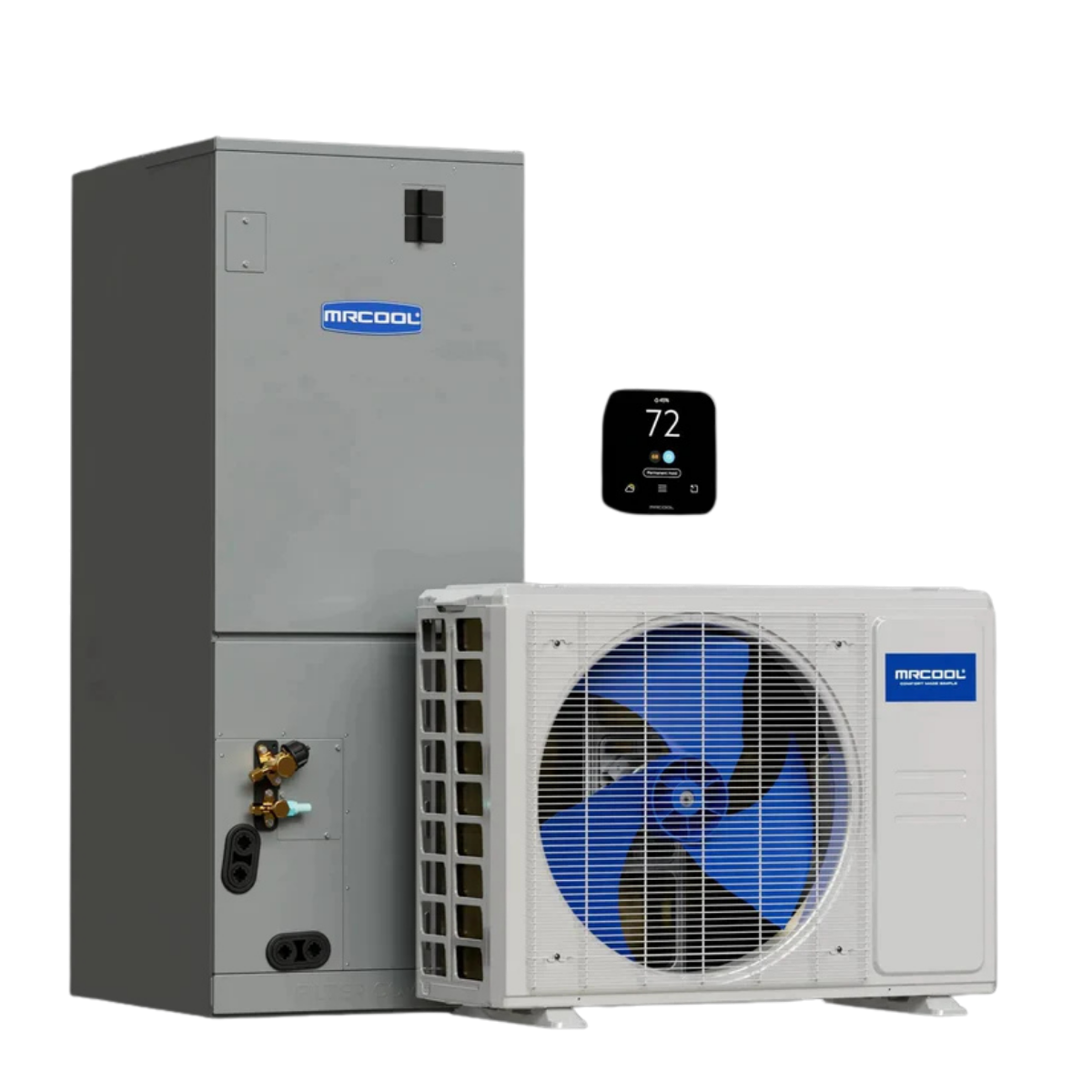

MRCOOL Hyper Heat 2nd Gen 30K BTU 2.5 Ton 16.8 SEER2 Central Ducted Heat Pump Split System, CENTRAL-30-HP-230B00-O
MRCOOL Hyper Heat 2nd Gen 30K BTU 2.5 Ton 16.8 SEER2 Central Ducted Heat Pump Split System, CENTRAL-30-HP-230B00-O
SKUCENTRAL-30-HP-230B00-O
TypeDucted Heat Pump System
✅ This item is in stock!
24 in stock
Estimated Delivery: November 26 – November 28
Based on order date & typical delivery times.
• Orders Typically ship within 2 business days
Couldn't load pickup availability
Have questions or need help selecting the perfect Mini Split system?
Talk with our expert HVAC team members now for assistance!!
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
| Category | Specification |
|---|---|
| Cooling Capacity (Btu/h) | 30,000 |
| SEER2 | 16.8 |
| EER2 | 11.7 |
| Heating Capacity (Btu/h) | 34,000 |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 8.3 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 47 / 46 / 43 / 27.5 dB(A) |
| Outdoor Noise Level | 60.5 dB(A) |
| Power Supply (Indoor) | 208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) | 8.0 / 6.0 A |
| Max Fuse (Indoor) | 15 A |
| Min Circuit Ampacity (Outdoor) | 29.5 A |
| Max Fuse (Outdoor) | 30 A |
| Indoor Unit Dimensions (WxDxH) | 21.02 x 21.02 x 49.02 in |
| Indoor Packing Dimensions (WxDxH) | 26.57 x 24.41 x 52.56 in |
| Indoor Net/Gross Weight | 128.97 / 153.44 lbs |
| Outdoor Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Outdoor Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Outdoor Net/Gross Weight | 164.02 / 174.60 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) | 989 / 895 / 806 / 712 |
| Outdoor Airflow (CFM) | 3001.8 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 105.82 oz |
| Piping Size (Liquid/Gas) | 3/8" - 3/4" |
