NEW R-454B Refrigerant

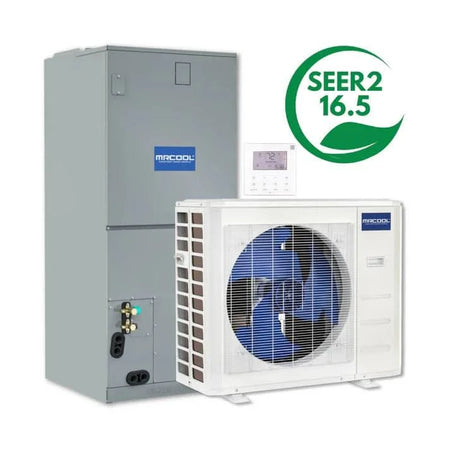

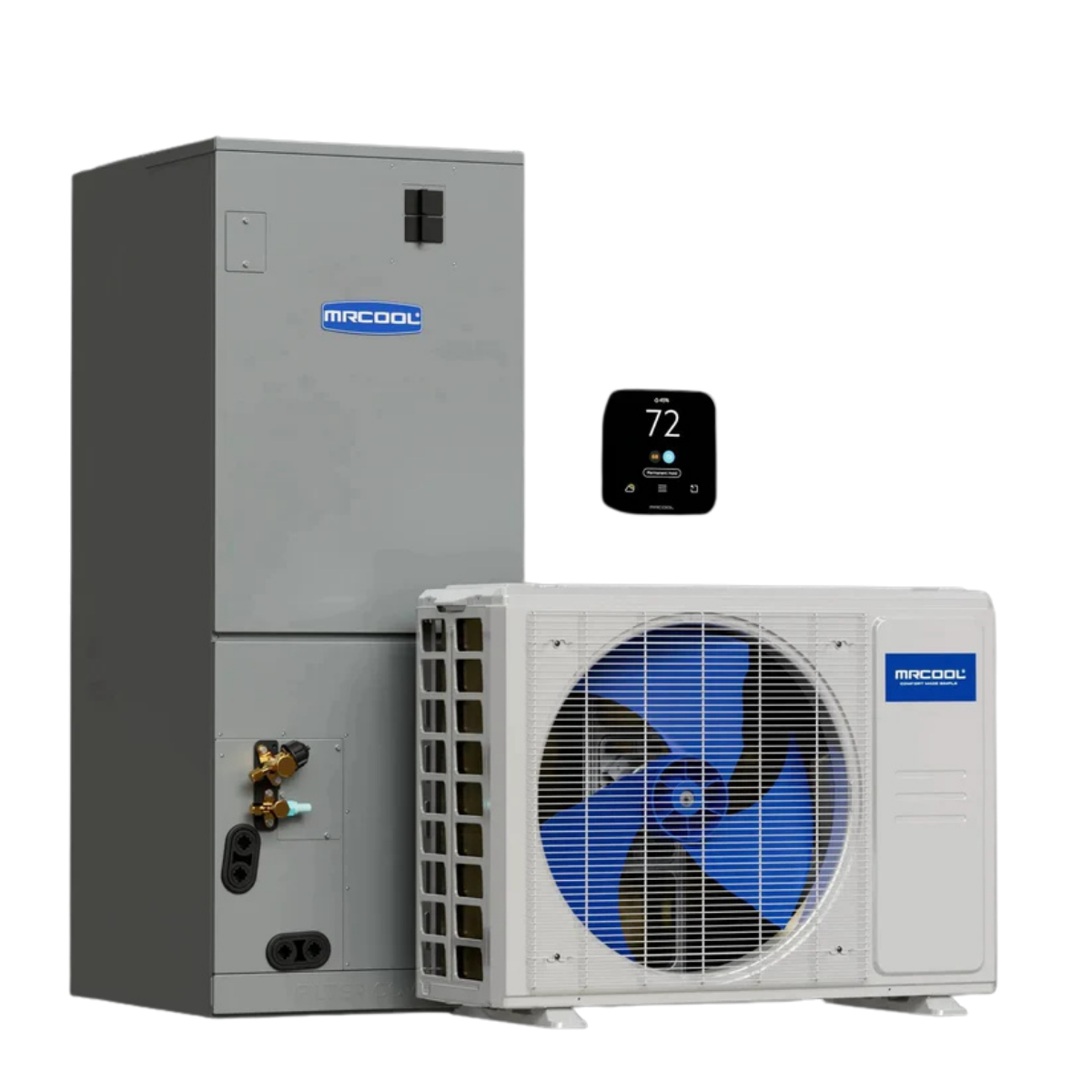

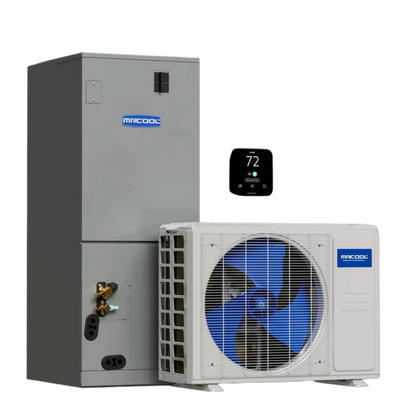

MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System, CENTRAL-48-HP-230B00-O

MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System, CENTRAL-48-HP-230B00-O

Regular price $4,519.00 USD
Regular price $5,557.99 USD Sale price $4,519.00 USD
Save $1,038.99 Sold out
Shipping calculated at checkout.

❄️ R-454B Pre-Charged
🔥 Cold-Climate Ready
🧰 DIY Install
🔧 Multi-Position AHU

SKUCENTRAL-48-HP-230B00-O

TypeDucted Heat Pump System

Line Set Options
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System – CENTRAL-48-HP-230B00-O

Stay comfortable through every season with the MRCOOL® Hyper Heat 2nd Gen 48K BTU Central Ducted System, engineered to deliver reliable performance even in extreme temperatures. Featuring an impressive SEER2 rating of up to 16.5 and an HSPF2-4 rating of 9.5, this high-efficiency heat pump split system is perfect for homes looking to upgrade to smarter, more sustainable HVAC technology.

Powered by MRCOOL's advanced inverter technology and the latest environmentally friendly R-454B refrigerant, this 4-ton Hyper Heat unit ensures maximum comfort with minimal impact. Compatible with the VersaPro™ Central Ducted Air Handler, this system offers unmatched flexibility, whether you're doing a new install or replacing an outdated system.


🌟 Key Features & Benefits:

  • Year-Round Comfort: Delivers strong heating and cooling in both sub-zero winters and scorching summers.

  • Energy Efficient: Achieve lower utility bills with up to 16.5 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance.

  • Smart Thermostat Control: Easily manage your indoor climate with the included MRCOOL® Smart Thermostat or the SmartHVAC App, compatible with Alexa, Google Assistant, and Siri.

  • Quick & Easy Installation: Designed to work with No-Vac® Quick Connect® Line Sets—pre-charged with R-454B refrigerant for faster setup. Copper stub pipes and flare fittings included for traditional installs.

  • Versatile Configuration: Compatible with upflow, downflow, and horizontal applications when paired with the VersaPro air handler.

  • Eco-Friendly Refrigerant: Uses R-454B, a more sustainable choice with lower global warming potential.

  • Durable Build: Heavy-duty painted galvanized steel cabinet resists corrosion and harsh weather.

  • Hassle-Free Maintenance: Slide-out blower, compact air handler design, and self-diagnostics panel simplify service and upkeep.

  • Peace of Mind Warranty: Covered by an industry-leading 10-year parts, compressor, and labor warranty (labor coverage activates automatically upon installation).


🔧 Technical Specs:

  • Capacity: 48,000 BTU (4 Ton)

  • SEER2: Up to 16.5

  • HSPF2-4: Up to 9.5

  • Refrigerant: R-454B

  • Voltage: 208/230V, 1-Phase, 60Hz

  • Compatible Line Set: No-Vac® Quick Connect® (sold separately)


📦 What’s Included:

  • 48K BTU MRCOOL® Hyper Heat 2nd Gen Outdoor Condenser (CENTRAL-48-HP-230B00-O)

  • Stub pipes and flare nut fittings

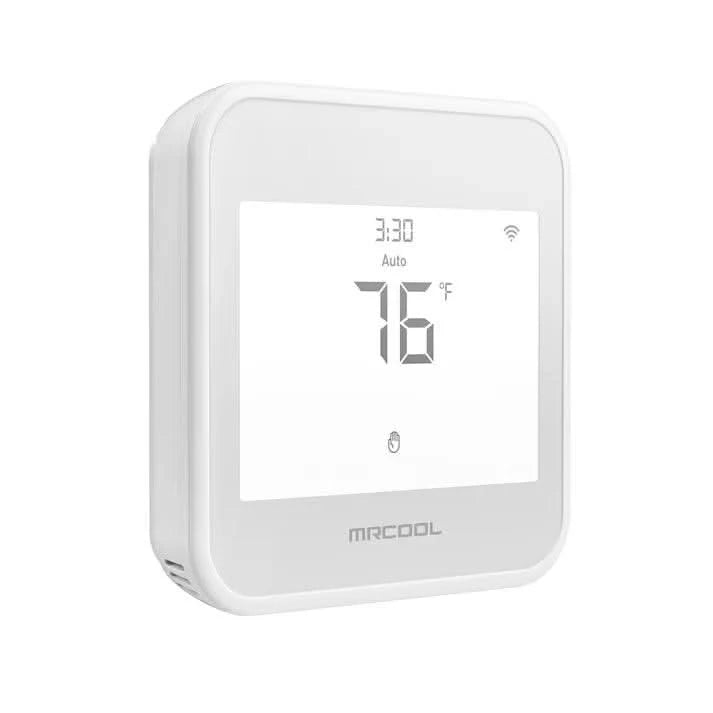

  • MRCOOL® Smart Thermostat

  • 10-Year Warranty (parts, compressor, and labor)

Note: Air handler, line sets, and heat kits are sold separately. For best results, pair with the MRCOOL® VersaPro™ 48K Central Ducted Air Handler.


💡 Why Buy from MRCOOL DIY Direct?

As the USA’s most trusted MRCOOL® dealer, MRCOOL DIY Direct offers unbeatable prices, fast shipping, expert support, and genuine MRCOOL® products backed by real warranties. Whether you're a DIYer or a pro, we’ve got you covered—every step of the way.

SPECIFICATION & DIMENSIONS

Category Specification
Cooling Capacity (Btu/h) 48,000
SEER2 16.5
EER2 10.5
Heating Capacity (Btu/h) 50,000
HSPF2-4 9.5
HSPF2-5 8.0
Indoor Noise Level (Turbo/Hi/Mi/Lo) 52 / 50 / 34 dB(A)
Outdoor Noise Level 65.0 dB(A)
Power Supply (Indoor) 208/230V ~ 60Hz, 1ph
Power Supply (Outdoor) 208/230V ~ 60Hz, 1ph
Min Circuit Ampacity (Indoor) 14.5 / 11.0 A
Max Fuse (Indoor) 15 A
Min Circuit Ampacity (Outdoor) 38.0 A
Max Fuse (Outdoor) 40.0 A
Indoor Unit Dimensions (WxDxH) 21.02 x 24.49 x 52.99 in
Indoor Packing Dimensions (WxDxH) 27.95 x 26.77 x 56.50 in
Indoor Net/Gross Weight 162.92 / 190.92 lbs
Outdoor Unit Dimensions (WxDxH) 38.58 x 16.34 x 38.39 in
Outdoor Packing Dimensions (WxDxH) 45.08 x 19.68 x 42.52 in
Outdoor Net/Gross Weight 201.06 / 232.36 lbs
Indoor Airflow (CFM Turbo/Hi/Mi/Lo) 1601 / 1471 / 1283 / 1094
Outdoor Airflow (CFM) 3037.1
Refrigerant Type R-454B
Refrigerant Charge 134.04 oz
Piping Size (Liquid/Gas) 3/8" - 3/4"

COVERAGE AREA

4 Ton
