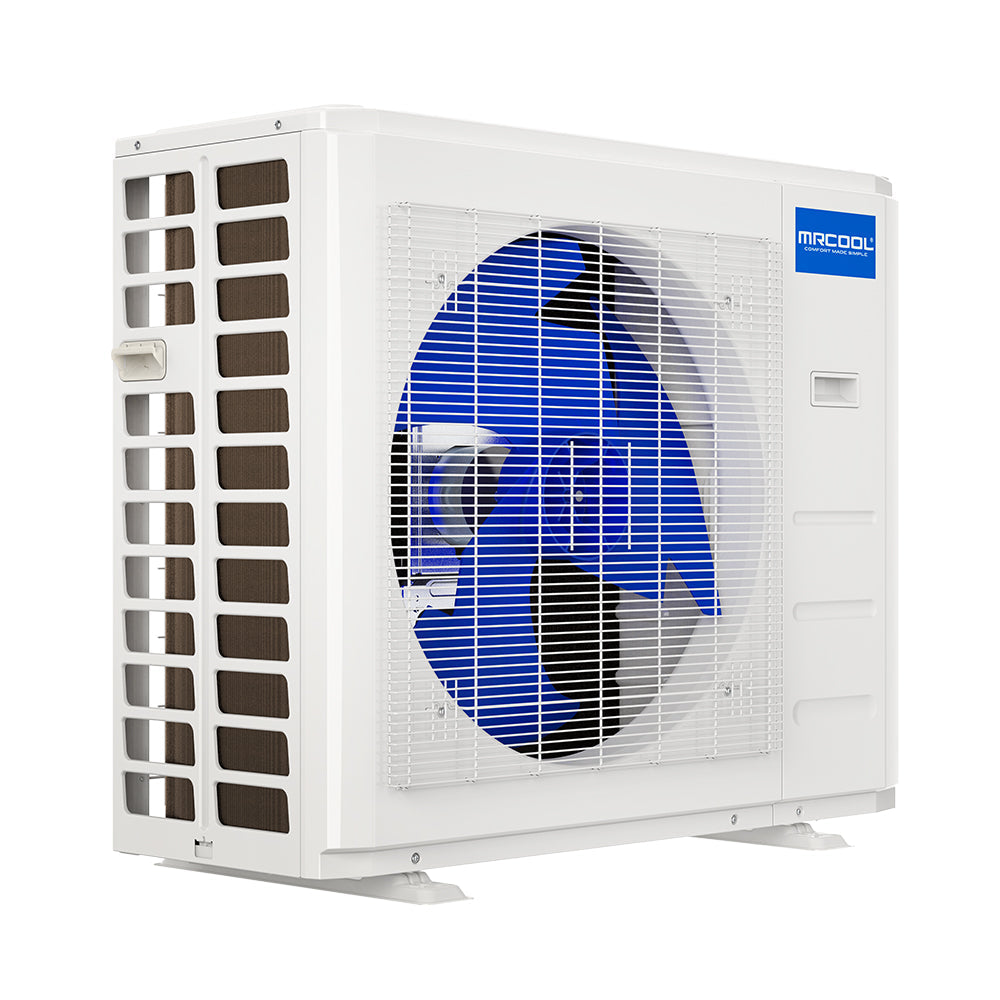

MRCOOL® Olympus E Star 24,000 BTU (2 Ton) Mini Split Heat Pump Condenser 230 V / 60 Hz | O-ES-24-HP-C-230C-O1
The MRCOOL® Olympus E Star Series represents the highest-efficiency, Best Tier of MRCOOL® professional systems. The Olympus E Star 24,000 BTU (2 Ton) Mini Split Heat Pump Condenser delivers dependable, energy-efficient heating and cooling for larger spaces — up to 1,050 sq ft — while supporting multiple compatible Olympus indoor air handlers (wall, ducted, or cassette).
Important: Olympus condensers are not pre-charged for DIY installation. A licensed HVAC professional must perform nitrogen evacuation and vacuuming before releasing the factory refrigerant charge to ensure efficiency and maintain warranty coverage.
Premium Efficiency and Year-Round Comfort
-
Energy Star Certified Performance: Outstanding efficiency with advanced inverter compressor technology.
-
Dual Heating & Cooling: Provides reliable year-round comfort — heat pump operation down to low ambient temperatures.
-
Multi-Zone Ready: Supports multiple Olympus indoor air handlers (wall, cassette, or ducted) for zoned comfort control.
-
High Capacity Output: 2 Ton (24,000 BTU) system for spaces up to ~1,050 sq ft depending on layout and climate.
-
Eco-Friendly Refrigerant: Uses low-GWP R-454B for reduced environmental impact and improved efficiency.
-
Quiet Operation: Precision-balanced fan and compressor design for low-noise outdoor performance (~55 dB).
-
Durable Construction: Corrosion-resistant galvanized steel cabinet with protective powder-coat finish for long-life reliability.
-
Comprehensive Warranty: 7-Year Compressor / 5-Year Parts / Limited Lifetime coverage for peace of mind.
Technical Specifications
| Model |
BTU / Ton |
Voltage / Hz |
Coverage Area* |
Refrigerant |
Sound Level |
Efficiency Ratings |
Warranty |
| O-ES-24-HP-C-230C-O1 |
24,000 BTU (2 Ton) |
230 V / 60 Hz |
Up to 1,050 sq ft* |
R-454B |
≈ 55 dB |
Energy Star Certified (SEER2 ≈ 23.0 / HSPF2-4 ≈ 10.5) |
7 Year Compressor / 5 Year Parts / Lifetime Limited |
*Coverage varies by climate, insulation, and home design.
Professional Installation Required
This Olympus E Star condenser must be installed by a licensed HVAC technician. The installer will connect the indoor and outdoor units, perform a nitrogen leak test, vacuum the system, and then release the factory charge for optimal operation. This ensures maximum efficiency and valid warranty protection.
Reminder: Olympus E Star systems require certified installation to maintain full warranty coverage.
Compatible Indoor Units
- Olympus Wall-Mounted Air Handlers (9K – 24K models)
- Olympus Ducted Air Handlers (9K – 36K models)
- Olympus Recessed Ceiling Cassettes (9K – 24K models)
Mix and match compatible air handlers to create a custom zoned comfort system.
Nationwide Shipping & Trusted Support
Purchase from MRCOOLDIYDirect.com — the USA’s most trusted MRCOOL® dealer — for fast nationwide shipping, factory-authorized products, and expert support from HVAC professionals.
SKU: O-ES-24-HP-C-230C-O1
Series: Olympus E Star (Best Tier)
Type: Mini Split Heat Pump Condenser
BTU: 24,000 (2 Ton)
Refrigerant: R-454B
Efficiency: Energy Star Certified Inverter Compressor
Warranty: 7 Year Compressor / 5 Year Parts / Limited Lifetime
Availability: Ships Nationwide from MRCOOLDIYDirect.com
