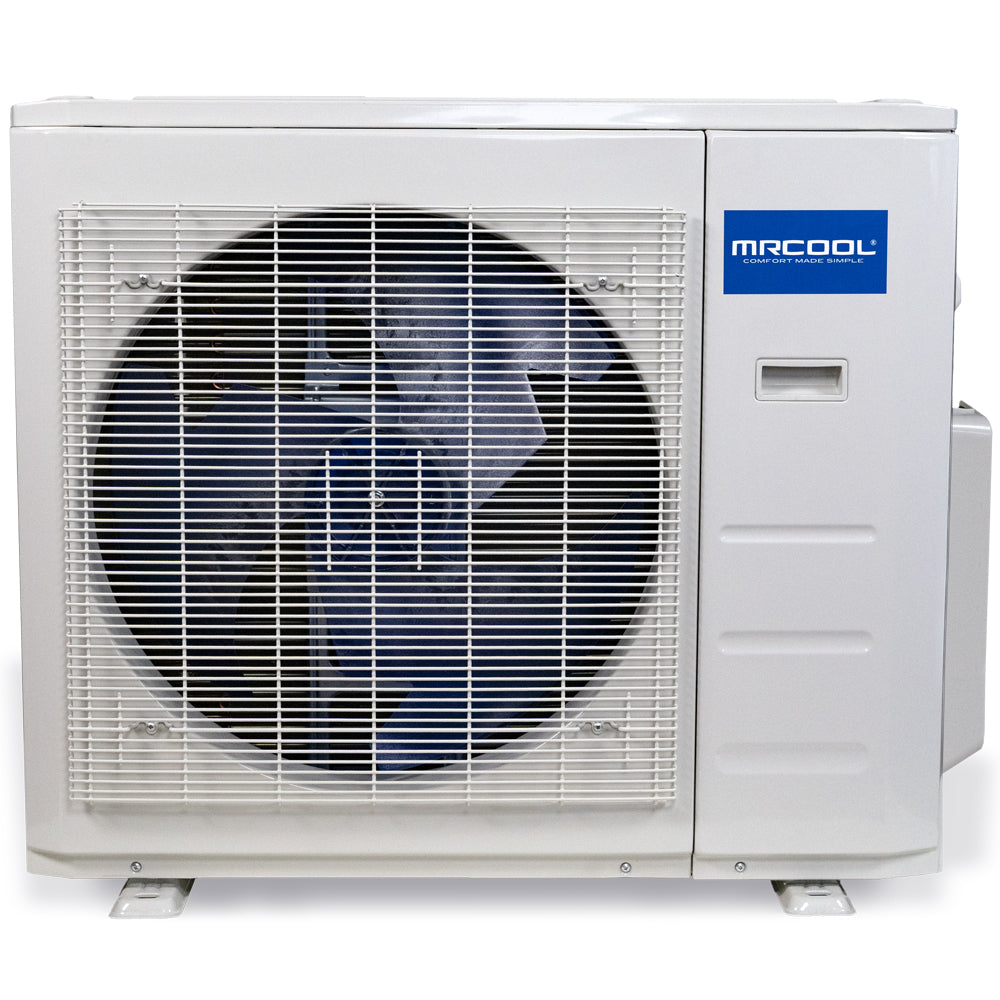

MRCOOL® Olympus 36,000 BTU (3 Ton) Multi-Zone Mini Split Heat Pump Condenser 230 V / 60 Hz | MULTI5-36HP230C-O
The MRCOOL® Olympus Series defines premium performance for multi-zone comfort. The Olympus 36,000 BTU (3 Ton) Multi-Zone Mini Split Heat Pump Condenser (Model MULTI5-36HP230C-O) powers up to five indoor air handlers, offering custom temperature control in multiple rooms with advanced inverter technology and quiet, reliable operation.
Important: Olympus condensers require professional HVAC installation. The system must be nitrogen-evacuated and vacuumed prior to releasing refrigerant from the factory-charged outdoor unit to maintain efficiency and warranty coverage.
High-Performance Multi-Zone Comfort
-
Multi-Zone Capability: Supports up to five indoor units for independent climate control in separate spaces.
-
Powerful Capacity: 36,000 BTU (3 Ton) cooling and heating for homes up to 1,500 sq ft*.
-
High Efficiency: Advanced inverter compressor achieves SEER2 up to 24 and HSPF2-4 up to 9.5 for exceptional energy savings.
-
All-Weather Operation: Reliable heating performance even in outdoor temperatures as low as 5 °F.
-
Flexible Compatibility: Works with Olympus wall-mounted, ceiling cassette, and ducted indoor air handlers.
-
Smart Control Options: Manage via MRCOOL SmartHVAC™ App, remote, or voice commands with Alexa & Google Assistant.
-
Quiet & Durable: Engineered for low-noise, vibration-dampened performance inside a corrosion-resistant cabinet.
-
Safety & Reliability: Features refrigerant leak detection, auto-restart, sleep mode, and diagnostic functions.
-
Warranty Coverage: 7-Year Compressor / 5-Year Parts Warranty with professional installation.
Technical Specifications
| Model |
Capacity |
Voltage / Hz |
Zones |
Coverage Area* |
Efficiency (SEER2 / HSPF2-4) |
Operating Range |
Refrigerant |
Warranty |
| MULTI5-36HP230C-O |
36,000 BTU (3 Ton) |
230 V / 60 Hz |
Up to 5 Zones |
~1,200 – 1,500 sq ft* |
Up to 24 / 9.5 |
Cooling to 5 °F / Heating to 5 °F |
R-454B |
7 Yr Compressor / 5 Yr Parts (pro install) |
*Coverage varies by insulation, layout, and climate zone.
Professional Installation Required
Olympus multi-zone systems are designed for licensed HVAC professionals. Proper nitrogen pressure testing, evacuation, and charge balancing are essential for warranty protection and maximum system efficiency. Each zone’s BTU load must be calculated to ensure proper pairing with compatible indoor units.
Reminder: Olympus = Best Tier Performance + Professional Installation Required.
Compatible Indoor Units
- Olympus Wall-Mounted Air Handlers (9K – 24K)
- Olympus Ceiling Cassette Air Handlers (9K – 24K)
- Olympus Ducted Air Handlers (9K – 24K)
Supports up to 5 indoor units; total combined BTU should not exceed 39,000.
Nationwide Shipping & Trusted Dealer Support
Order your MRCOOL® Olympus 36K Multi-Zone Condenser from MRCOOLDIYDirect.com — the USA’s most trusted MRCOOL® dealer — for fast nationwide shipping, authentic factory-authorized products, and expert HVAC support.
SKU: MULTI5-36HP230C-O
Series: Olympus – Best Tier Multi-Zone
Type: Mini Split Heat Pump Condenser (Outdoor Unit)
BTU: 36,000 (3 Ton)
Zones: Supports up to 5 Indoor Units
Refrigerant: R-454B
Efficiency: SEER2 up to 24 / HSPF2-4 up to 9.5
Warranty: 7 Year Compressor / 5 Year Parts (pro install)
Availability: Ships Nationwide from MRCOOLDIYDirect.com
