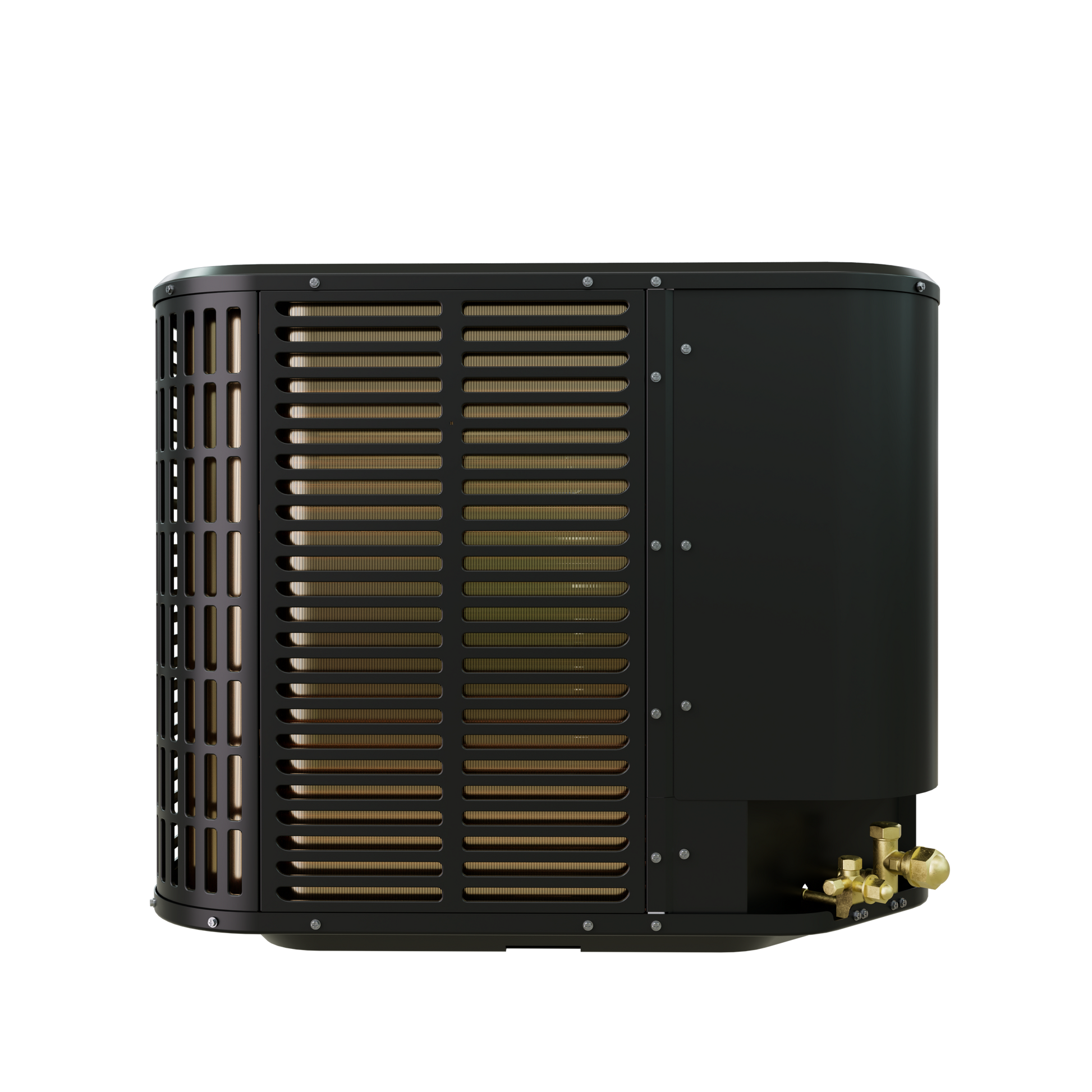

MRCOOL Signature Series TruInverter 2 Ton 18 SEER2 Heat Pump Condenser - MCAESHV8T2421BA
Couldn't load pickup availability

Verified equipment data
MCAESHV8T2421BA

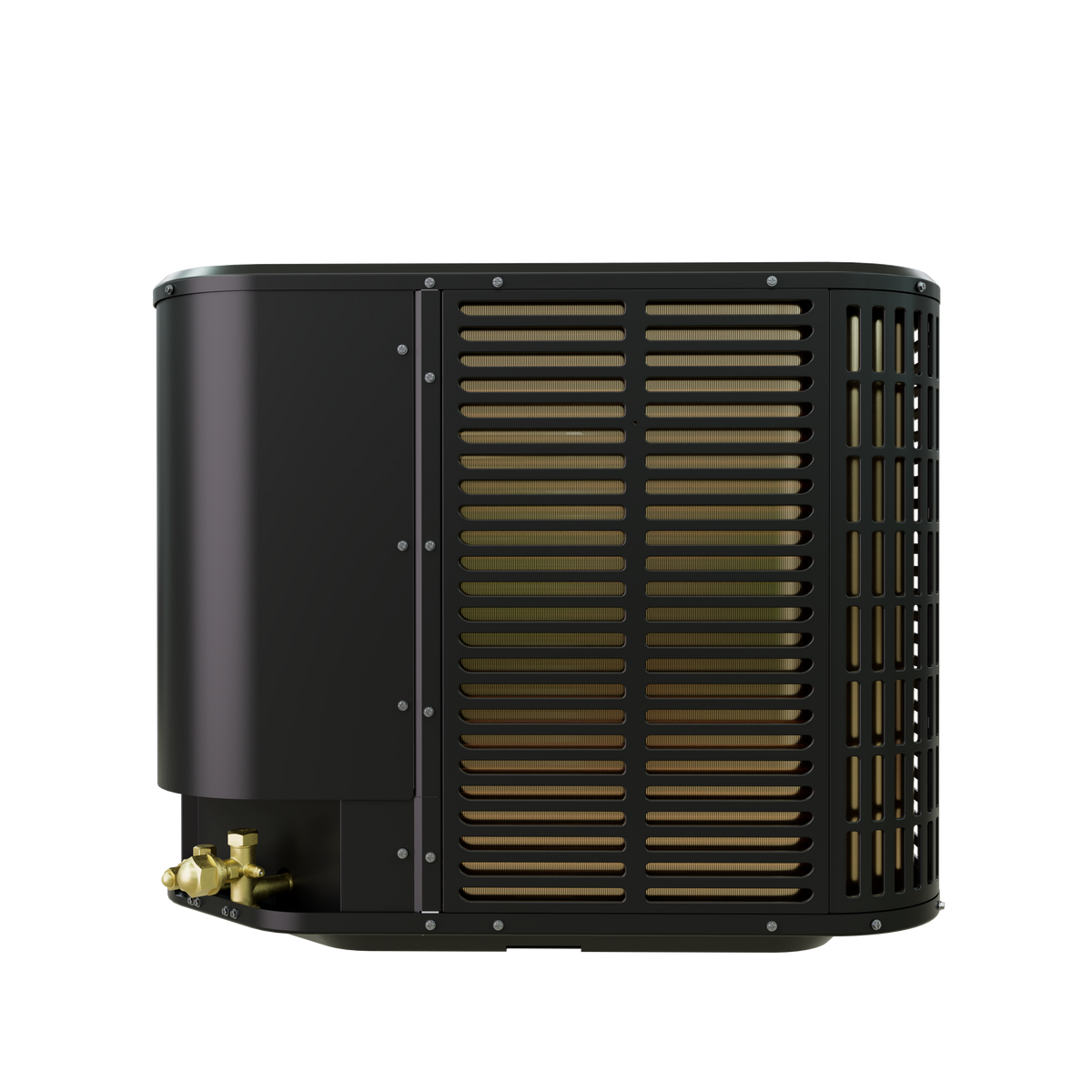

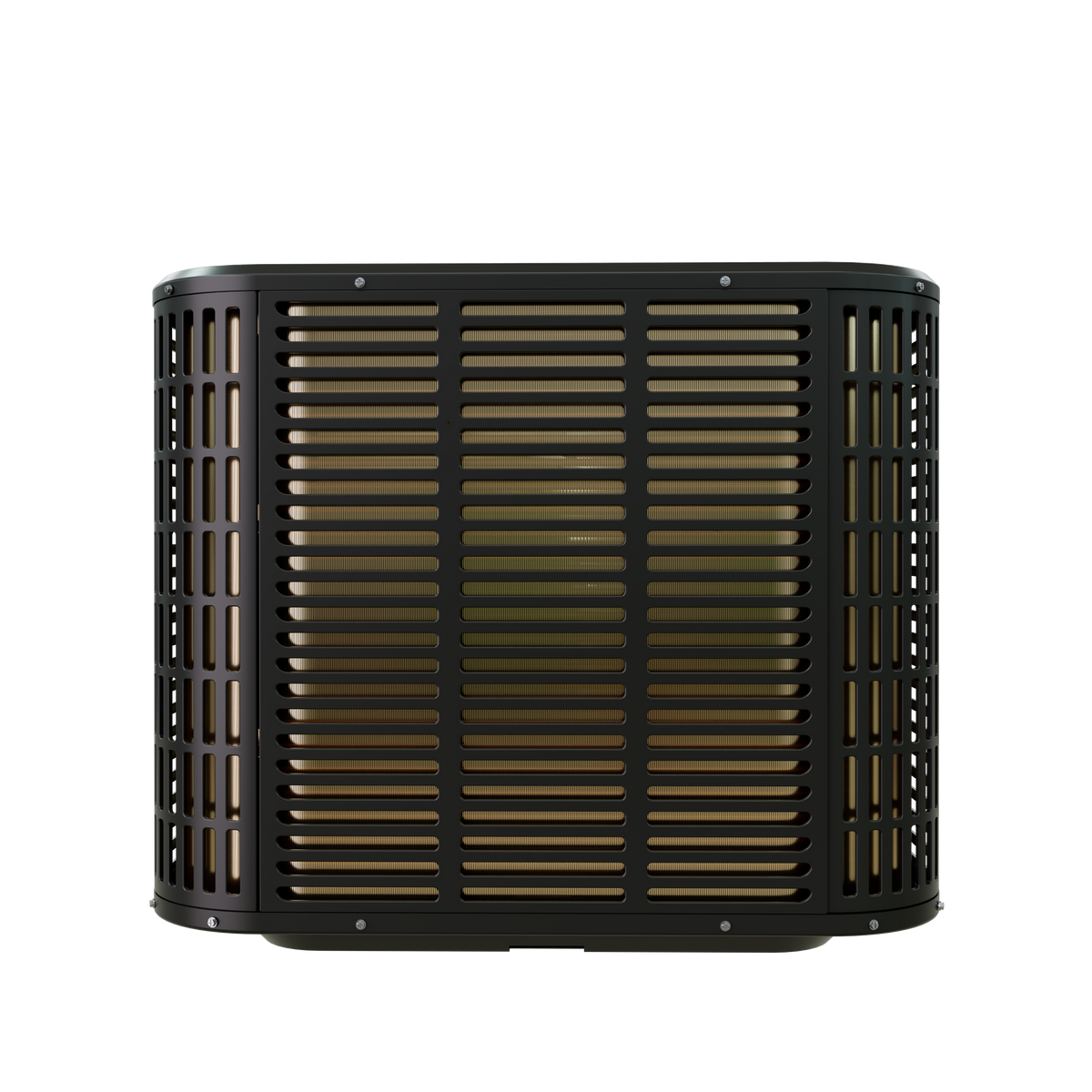

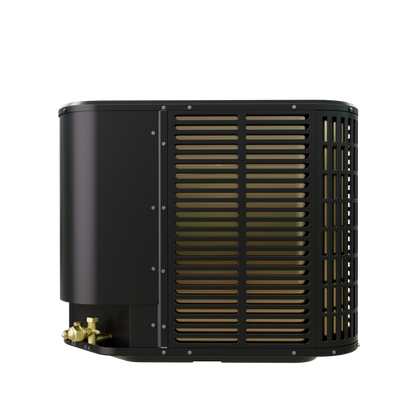

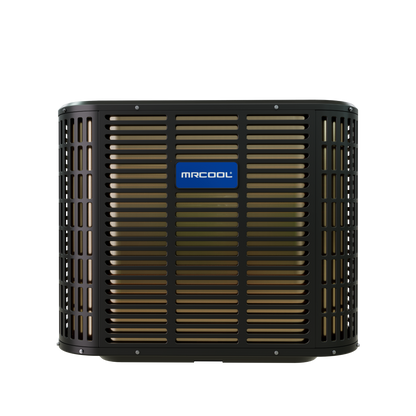

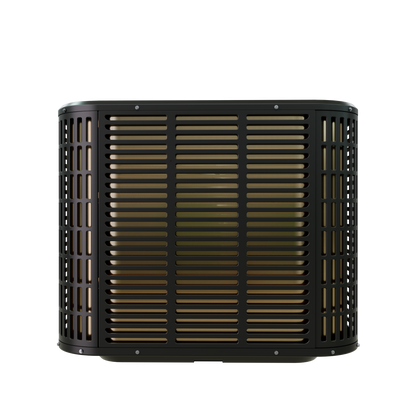

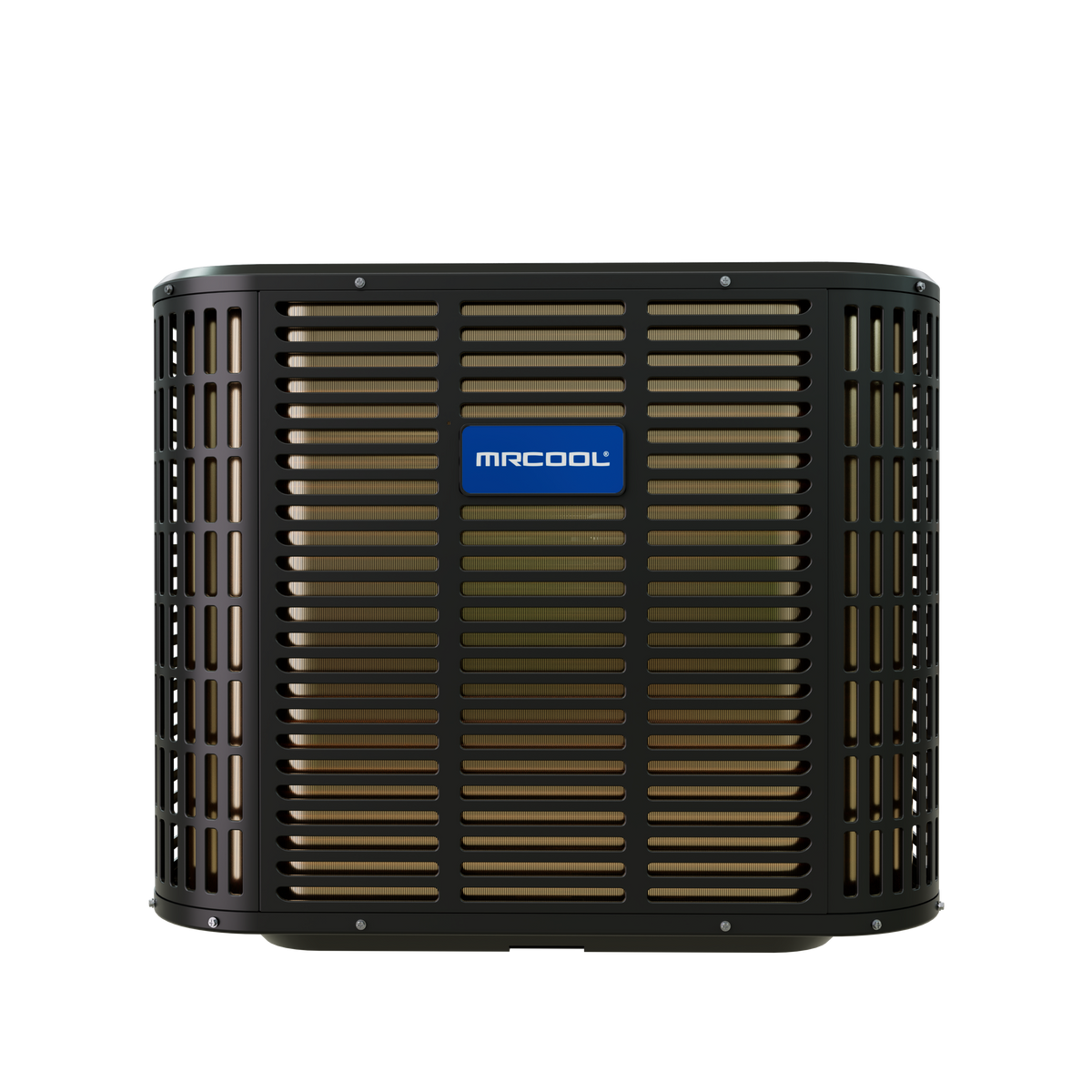

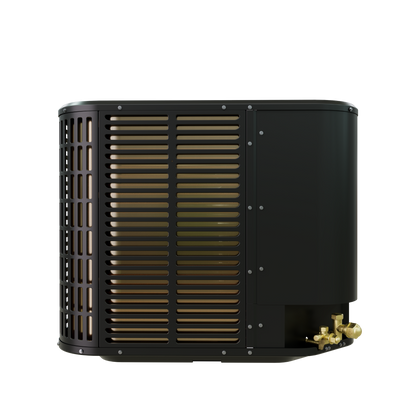

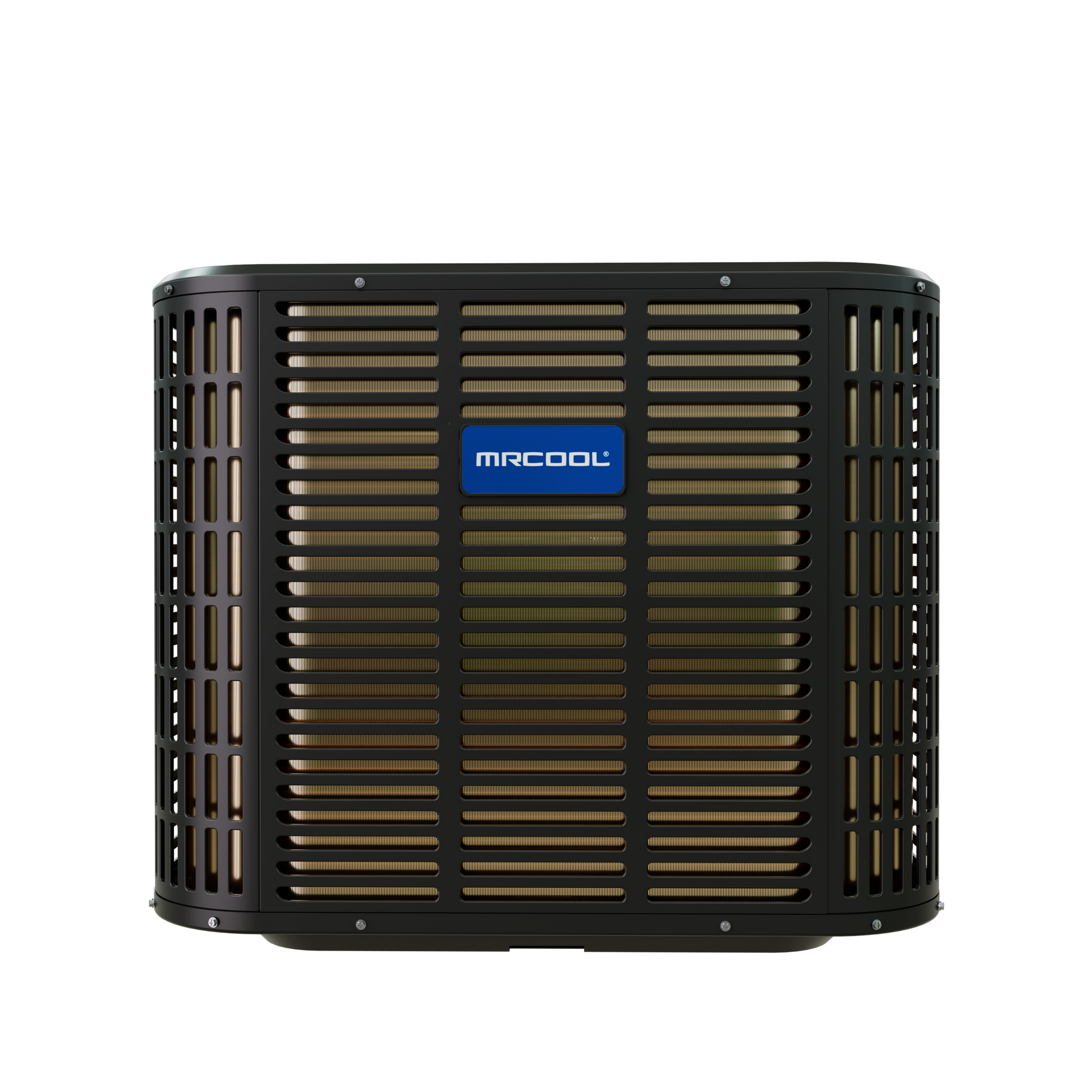

MRCOOL Signature Series TruInverter 2 Ton 18 SEER2 Heat Pump Condenser - MCAESHV8T2421BA
The MRCOOL Signature Series TruInverter 24K heat pump condenser provides efficient, variable-speed heating and cooling for whole-home comfort. TruInverter technology continuously adjusts compressor output to reduce temperature swings, improve humidity control, lower sound levels, and avoid the energy waste of frequent on-off cycling.
The outdoor unit is factory-charged with lower-GWP R-454B refrigerant and supports MRCOOL No-Vac Quick Connect line sets for a cleaner, faster installation. A durable gunmetal cabinet and protected outdoor coil help it stand up to demanding year-round operation.
This listing includes the outdoor condenser only. Pair it with the compatible TruInverter multi-position air handler MCAEAMPVT24D21BA. A thermostat, line set, heat kit, and other installation materials are sold separately. Licensed professional installation is required.
Key Specifications
| SEER2 | 18 |
| EER2 | 10 |
| COP 47 | 3.2 |
| HSPF2-4 | 9 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24,000 |
| HEATING CAPACITY (BTU) | 24,000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 16 |
| COLOR | Gunmetal |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 75.84 |
| DECIBEL RATING (DBA) | 67 |
| MIN AMBIENT COOL (F) | 5 |
| MIN AMBIENT HEAT (F) | -5 |
| MAX LINESET LENGTH (FT) | 100 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| COMPRESSOR MOTOR TYPE | Variable Rotary |
| CONDENSER FAN MOTOR TYPE | DC |
| METERING DEVICE | EEV |
| BASE WARRANTY | 10 Year Parts, Lifetime Compressor |
| NET DEPTH (IN) | 29.125 |
| NET HEIGHT (IN) | 24.94 |
| NET WIDTH (IN) | 29.125 |
| NET WEIGHT (LBS) | 137 |
Product Documents
Overview
| Manufacturer warranty | 10 Year Parts, Lifetime Compressor |
|---|
Performance
| Cooling capacity | 24,000 Btu/h |
|---|---|
| Nominal capacity | 2 tons |
Efficiency
| SEER2 | 18 |
|---|---|
| EER2 | 10 |
Electrical
| Voltage | 208/230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Minimum circuit ampacity | 16 A |
| Maximum fuse or breaker | 25 A |
Refrigeration
| Refrigerant | R-454B |
|---|---|
| Compressor | Variable Rotary |
| Liquid line | 3/8 in |
| Suction line | 3/4 in |
| Metering device | EEV |
Heating
| Heating capacity | 24,000 Btu/h |
|---|
Physical
| Height | 24.94 in |
|---|---|
| Width | 29.125 in |
| Depth | 29.125 in |
| Weight | 137 lb |
Installation
| Minimum cooling ambient | 5 °F |
|---|---|
| Minimum heating ambient | -5 °F |
