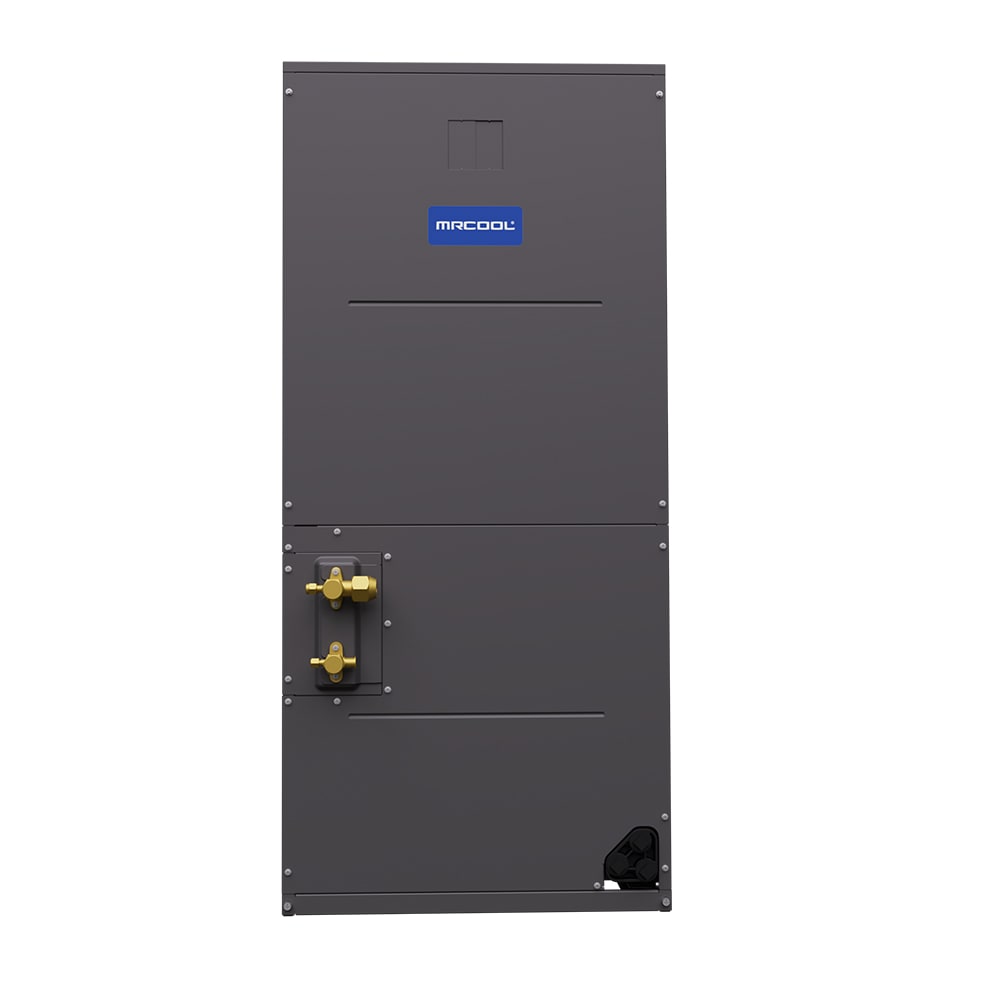

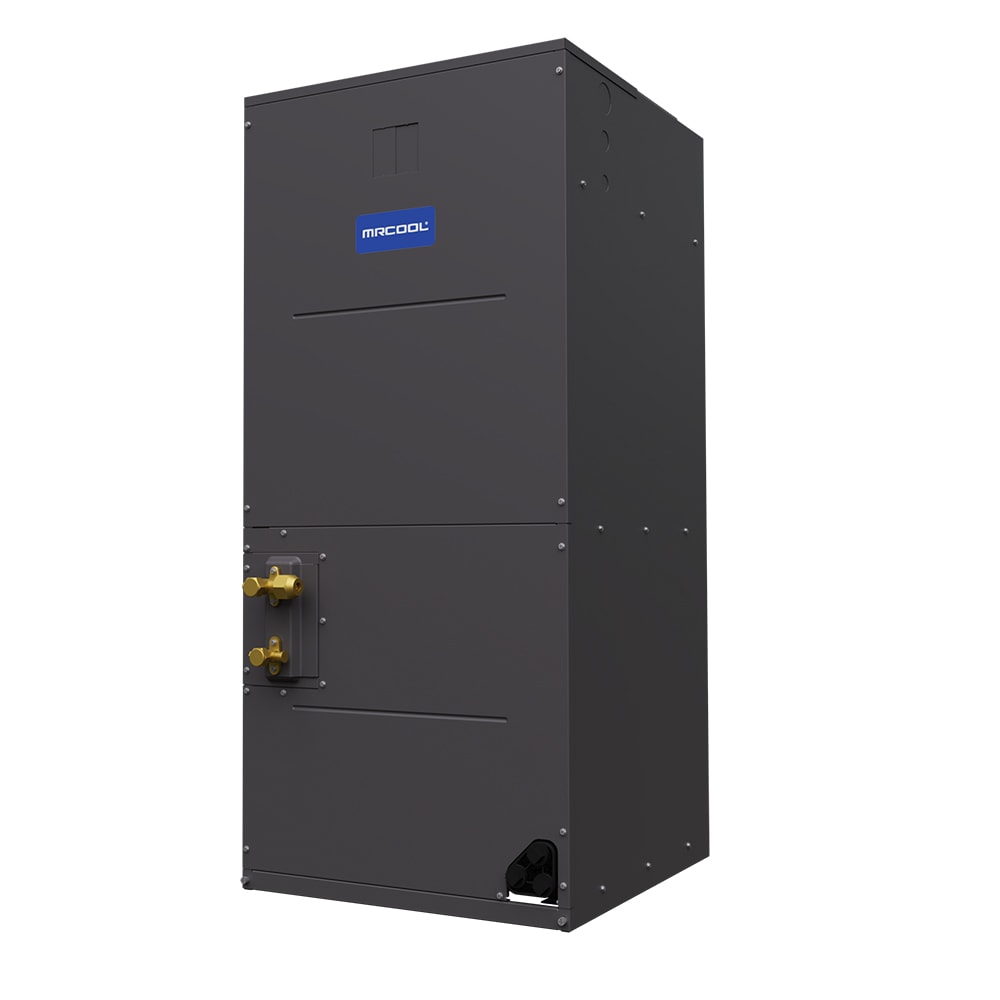

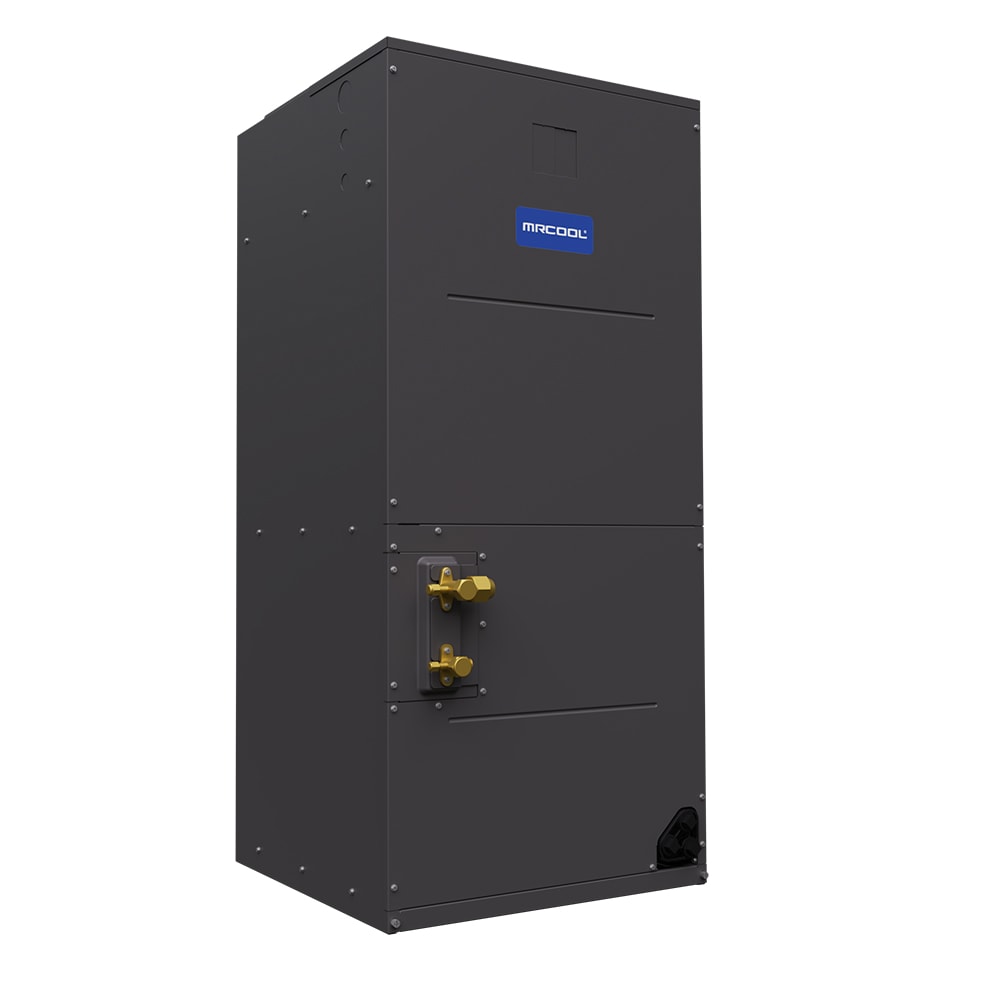

MRCOOL Signature Series TruInverter 5 Ton 60,000 BTU Multi-Position Air Handler - MCAEAMPVT60F21BA

MRCOOL Signature Series TruInverter 5 Ton 60,000 BTU Multi-Position Air Handler - MCAEAMPVT60F21BA

SKUMCAEAMPVT60F21BA

Type60K

Regular price $2,053.54
Sale price $2,053.54 Regular price $2,361.57
You Save: $308.03
SALE Sold out
Shipping calculated at checkout.
In stock
Ready to ship
Free delivery*
Ships in 1–2 business days
Estimated arrival: Sep 16 – Sep 18
Based on order date & typical delivery times
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

MRCOOL Signature Series TruInverter 5 Ton 60,000 BTU Multi-Position Air Handler - MCAEAMPVT60F21BA

The MRCOOL Signature Series TruInverter 60K multi-position air handler delivers smooth, efficient airflow for a matched TruInverter central heat pump system. Its variable-speed design helps maintain steadier temperatures, better humidity control, and quieter operation than conventional fixed-speed equipment.

The cabinet supports upflow, downflow, and horizontal installation, giving contractors flexibility for closets, attics, basements, crawl spaces, and mechanical rooms. It uses R-454B refrigerant and is compatible with MRCOOL No-Vac Quick Connect line sets.

This listing includes the indoor air handler only. Pair it with the compatible TruInverter condenser MCAESHV7T6021BA. A thermostat, line set, heat kit, and other installation materials are sold separately. Licensed professional installation is required.

Key Specifications

CFM 1700
TONNAGE 5
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 7
MOUNT TYPE Mulit-Position
COLOR Gunmetal
REFRIGERANT TYPE R-454B
DECIBEL RATING (DBA) 62
MAX LINESET LENGTH (FT) 100
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 7/8
BLOWER MOTOR TYPE DC
BLOWER MOTOR HP 3/4
BLOWER MOTOR SPEEDS 5
METERING DEVICE TXV
AUXILIARY HEATER SIZES 5kW, 10kW, 15kW, 20kW
NET DEPTH (IN) 21
NET HEIGHT (IN) 56
NET WIDTH (IN) 24.5
NET WEIGHT (LBS) 161

Product Documents
