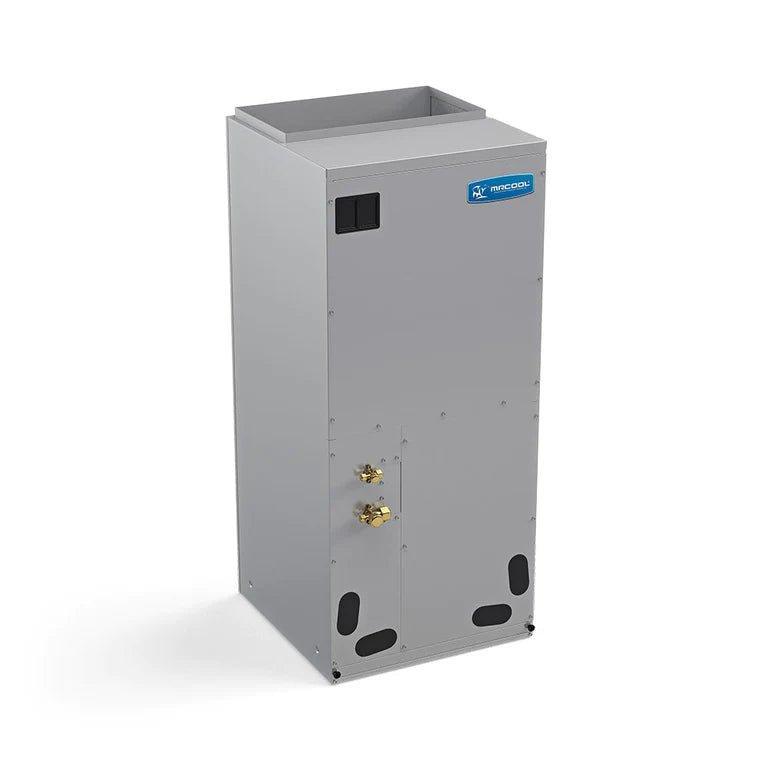

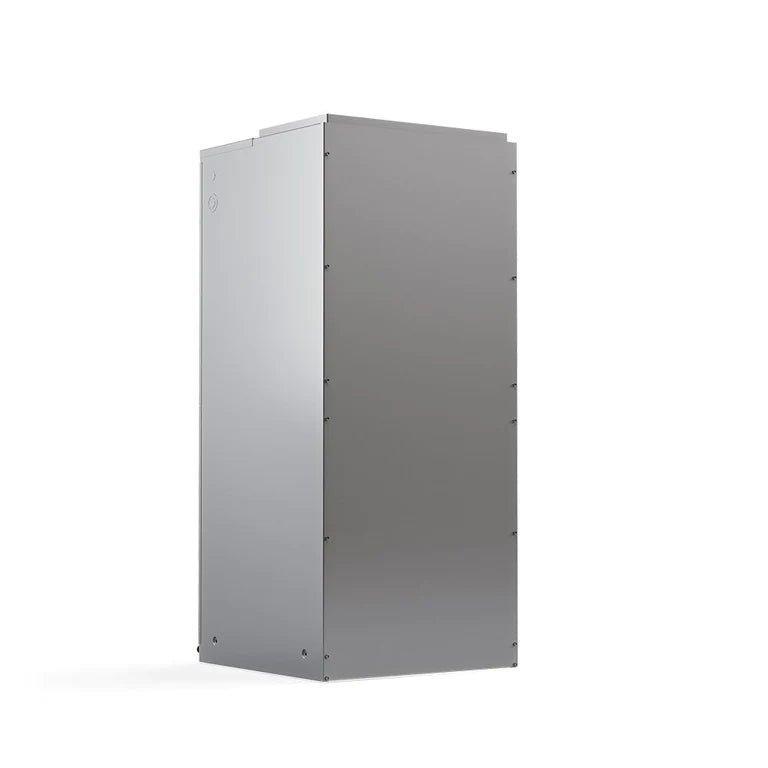

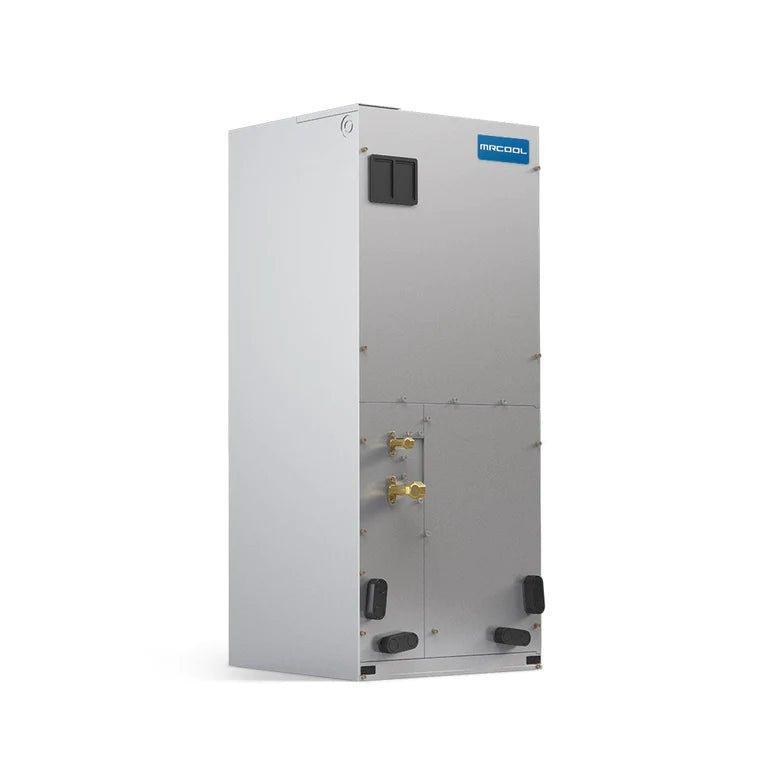

MRCOOL Universal High ESP 36000 BTU Air Handler, MDUI18036E

The new Universal High-ESP Air Handler has been designed for use in high static pressure applications such as a manufactured or mobile home, or in a system that has restrictions in the ductwork which would place a strain on a conventional air handler not rated for high external static pressure. This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.

The unit is capable of reaching a maximum static pressure of 250Pa. It offers multiple installation positions (vertical, horizontal left, or horizontal right) for an easy fit into many applications. The Universal High-ESP Air Handler also uses a durable metal filter that is both easy to clean and corrosion resistant to ensure it has a long service life.

Key Features

• Up to 18 SEER
• High Efficient Energy Saving DC Fan Motor
• 3 Connection Types: Patented Pe Charged No-Vac, Sweat Braze Fitting and Flare Fitting
• Internal Fan Blade Creates Low Noise
• R-410A environmentally friendly refrigerant
• AHRI Certified & ETL listed
• High Efficient Energy Saving DC Fan Motor
• Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
• Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
• Multi-Position Installation: Upflow or Horizontal
• 10 Year Registered Limited Warranty
• 2 Step Condensation Protection
