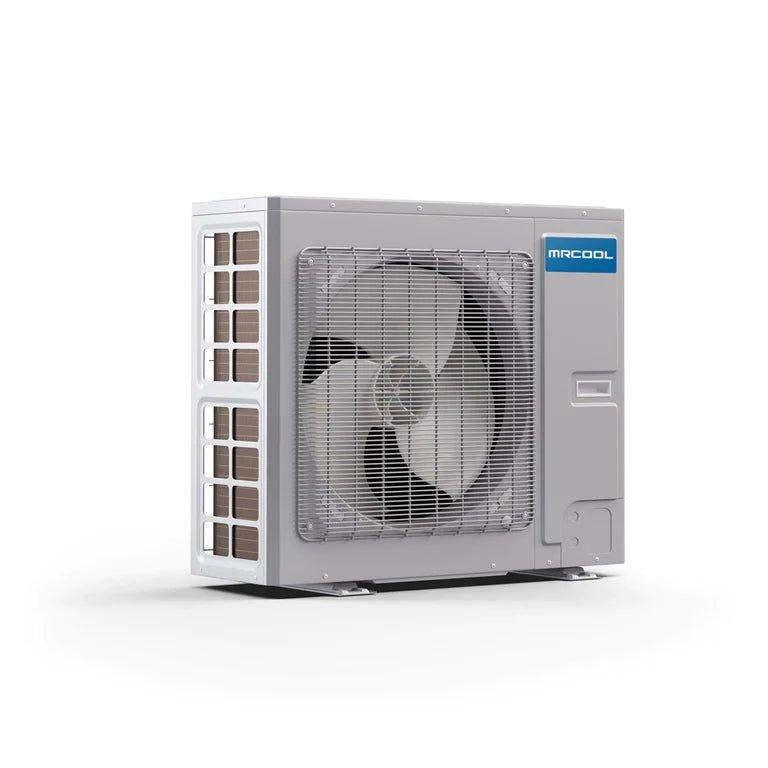

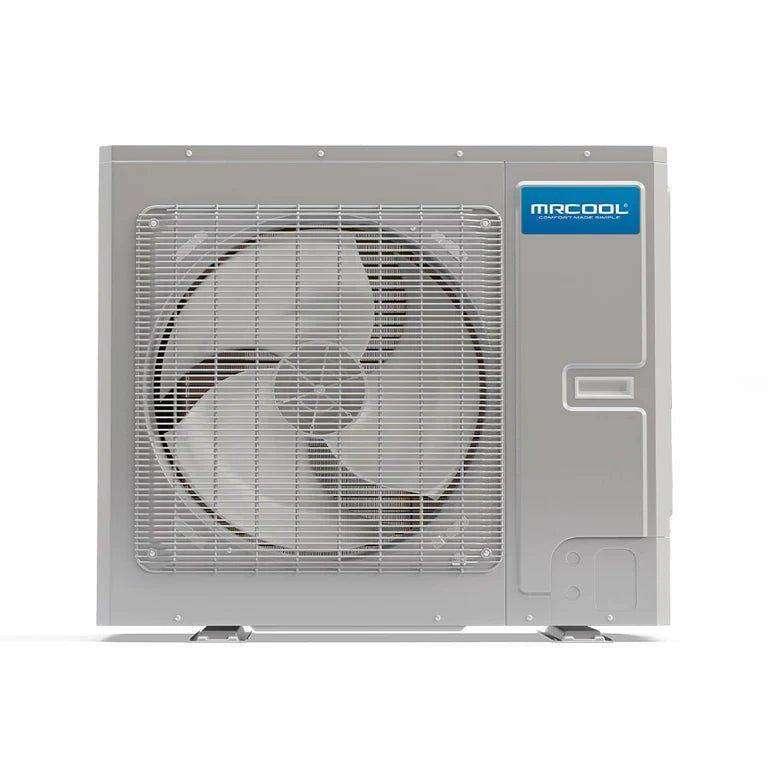

Universal Series 2 or 3 Ton DC Inverter Cooling Only Condenser, MDUCO18024036

Universal Series 2 or 3 Ton DC Inverter Cooling Only Condenser, MDUCO18024036

Regular price $1,964.00 USD
Regular price $2,611.88 USD Sale price $1,964.00 USD
Save $647.88 Sold out
Shipping calculated at checkout.

SKUMDUCO18024036

TypeUniversal Series Cooling Only Condenser

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.

Key Features

  • Up to 20 SEER in 2 Ton Mode, Up to 18 SEER in 3 Ton Mode
  • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
  • Low Ambient Cooling Down to 39.2 Degrees F
  • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
  • AHRI Certified & ETL listed
  • Slim Design
  • Quiet 55-58dB(a) Operation
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
  • 10 Year Registered Limited Warranty

SPECIFICATION & DIMENSIONS

Product Dimensions 37"W x 18-1/8"D x 32-1/4"H
Product Weight 185.2 lbs
SEER 20 in 2 Ton Mode
18 in 3 Ton Mode
EER 12.5 in 2 Ton Mode
12.2 in 3 Ton mode
CFM 3,000 in 3 Ton Mode
34,70 in 4 Ton Mode
Tonnage 2-3 Ton
Cooling Capacity 24,000, 36,000 BTU
Electrical Requirements Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35 A
Min Circuit Ampacity 24 A
Color Gray
Refrigerant Type R-410A
Refrigerant Volume 118.24 oz
Decibel Rating 55-57 dBA
Liquid Line Size 3/8 in
Suction Line Size 3/4in
Certifications ETL
AHRI
Warranty 10 Year Limited Warranty

WHAT'S INCLUDED

  • Condenser
