Product Overview
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

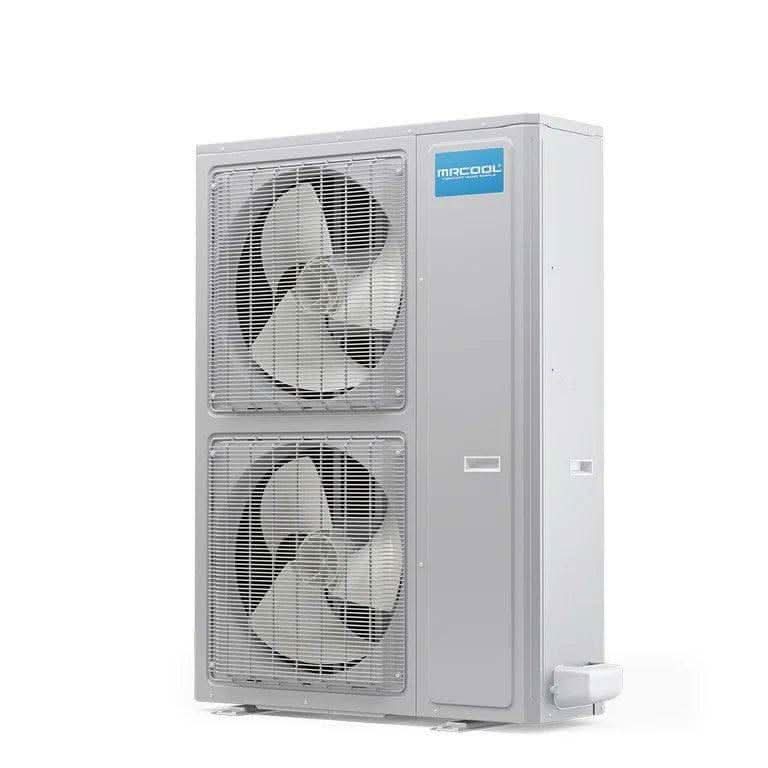

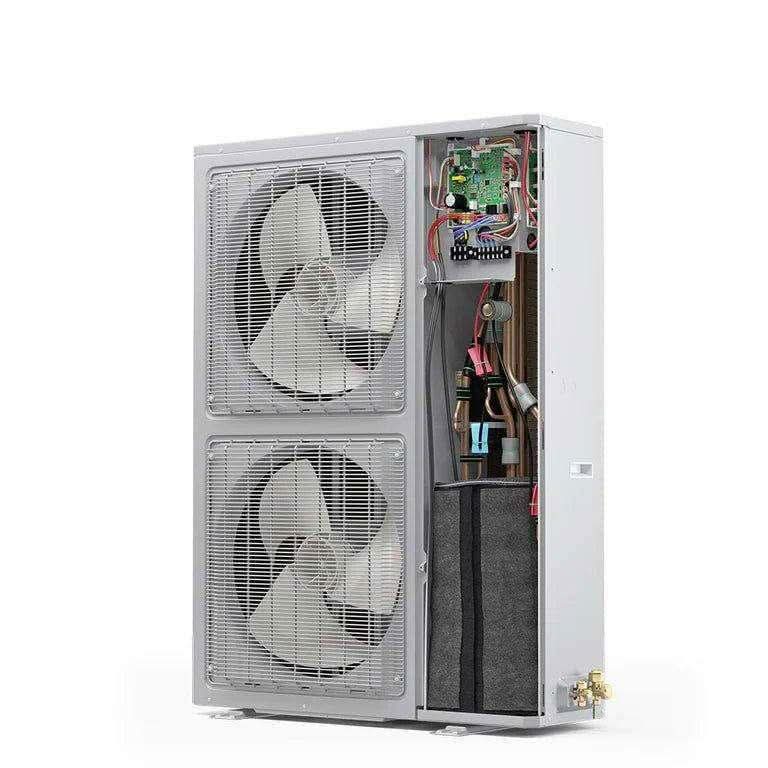

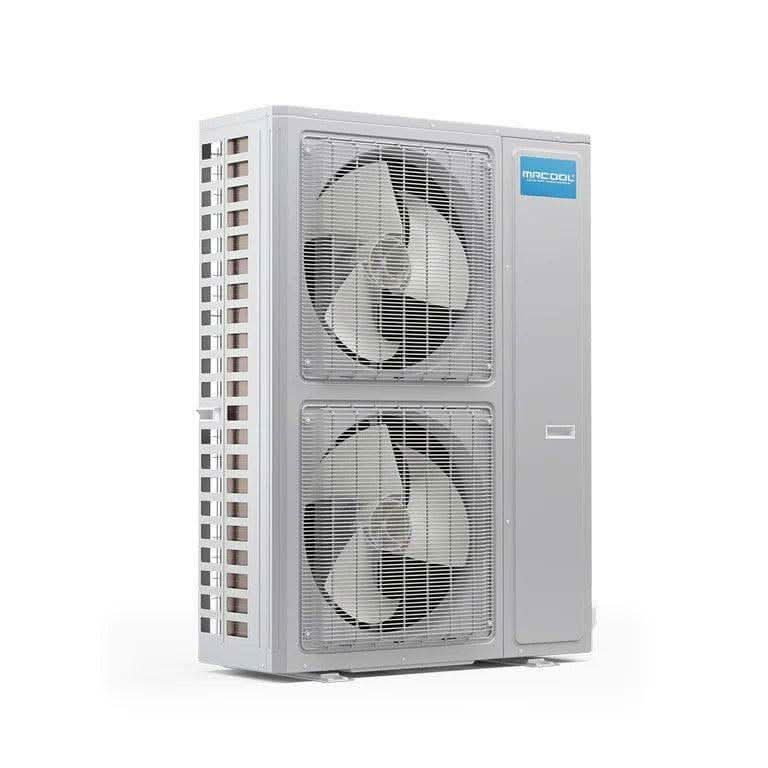

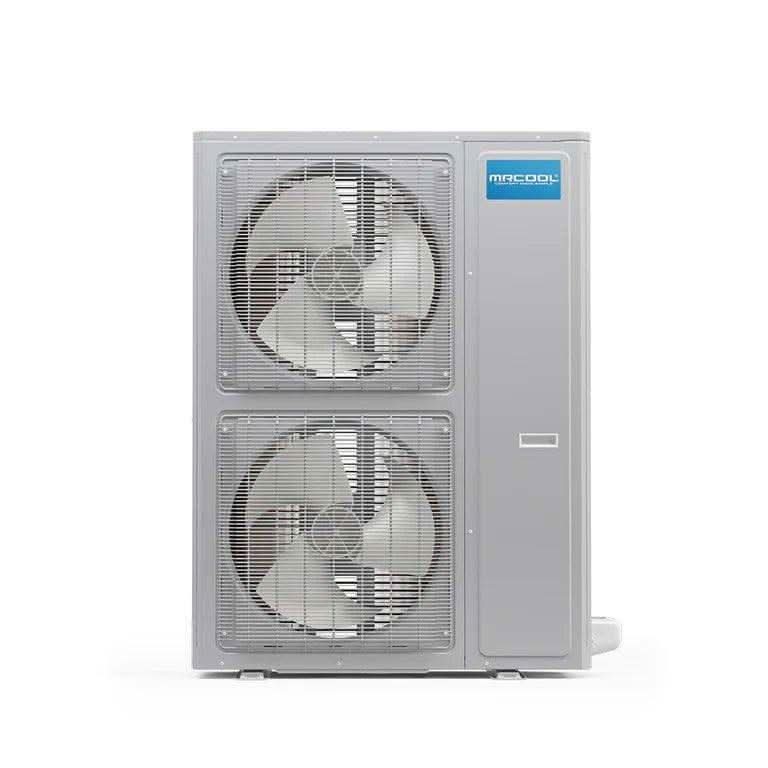

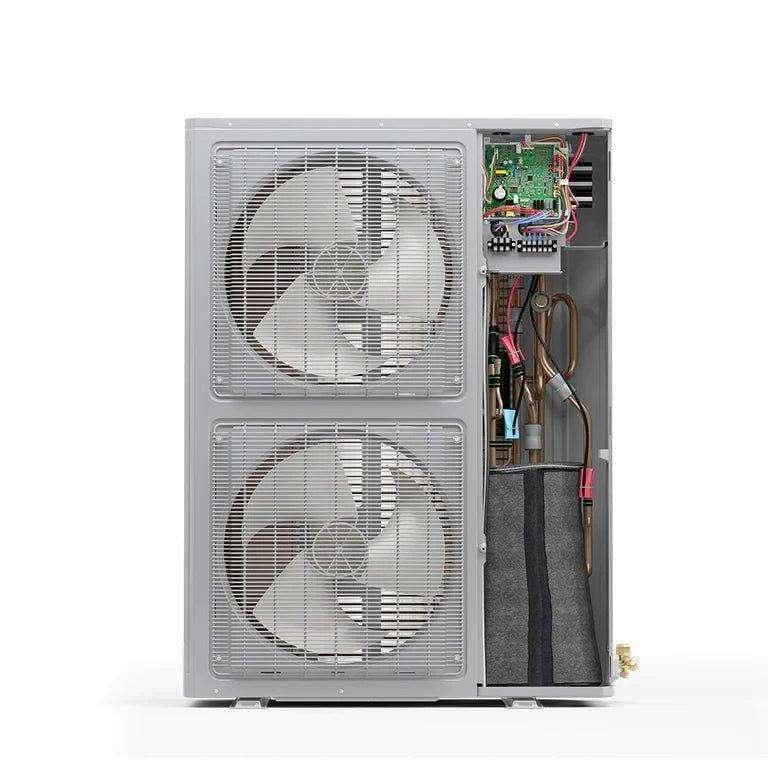

The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
Key Features
- Up to 17 SEER in 5 Ton Mode, 18 SEER in 4 Ton Mode
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
| Product Dimensions | 37"W x 12-5/8"D x 56-3/8in"H |
| Product Weight | 262 lbs |
| SEER | 4 Ton Mode: 18 5 Ton Mode: 17 |
| EER | 11.7 |
| CFM | 4700 |
| Tonnage | 4, 5 Ton |
| Cooling Capacity | 4 Ton Mode: 48,000 BTU 5 Ton Mode: 54000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/35A-45A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 45 A |
| Min Circuit Ampacity | 35 A |
| Color | Gray |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 193.6 oz |
| Decibel Rating | 58 dBA |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4in |
| Certifications | ETL AHRI |
| Warranty | 10 Year Limited Warranty |
WHAT'S INCLUDED
WHAT'S INCLUDED
-
Condenser
Customer Reviews

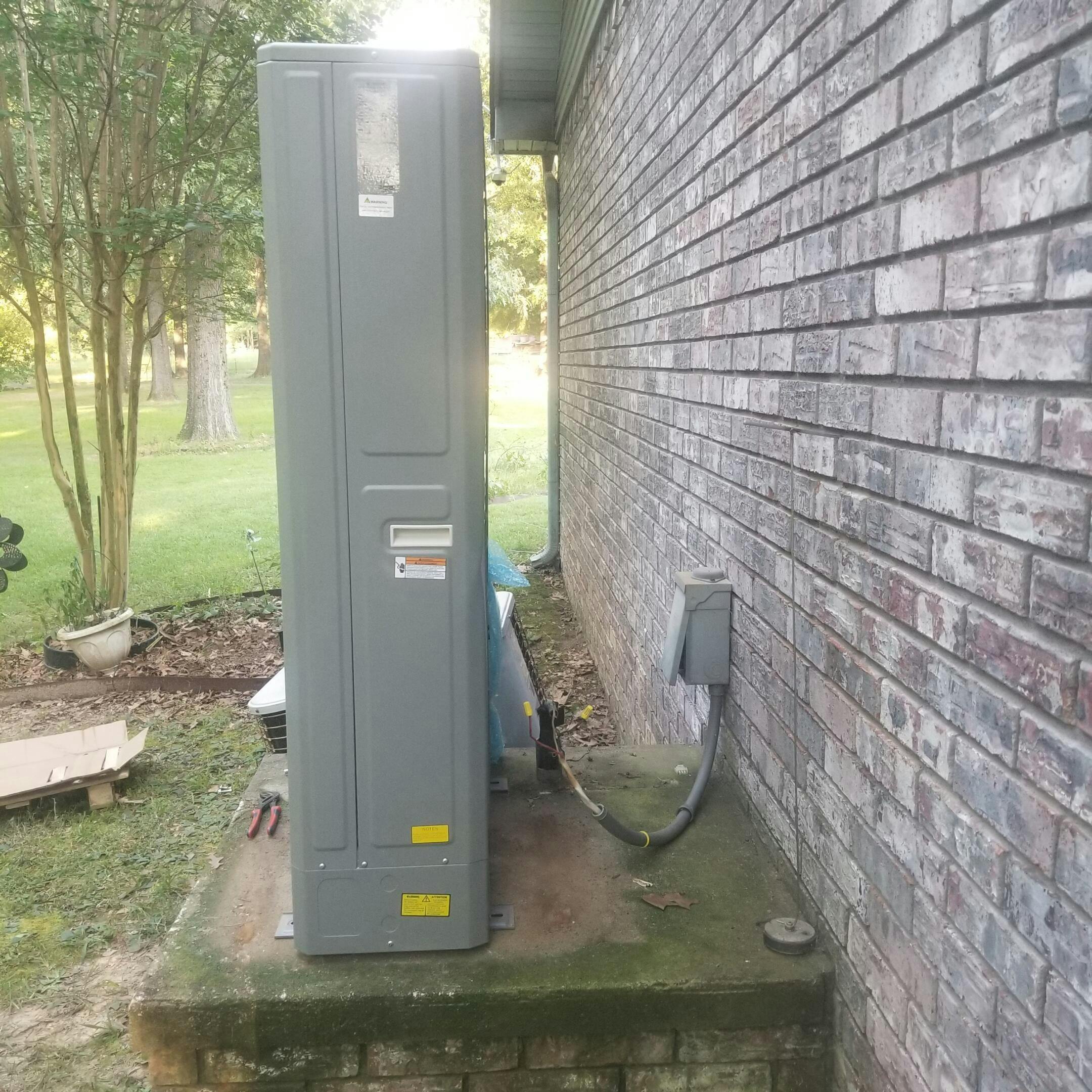

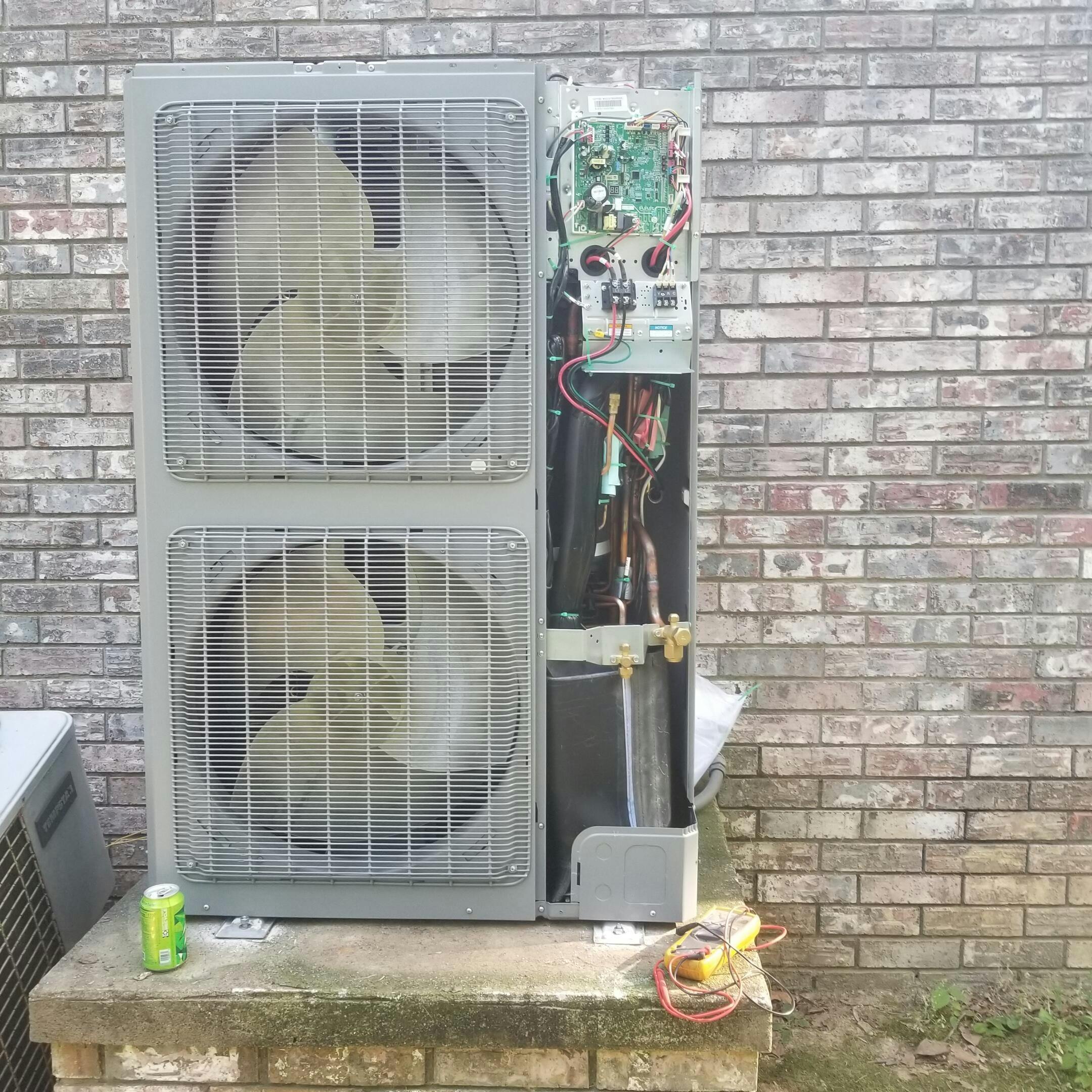

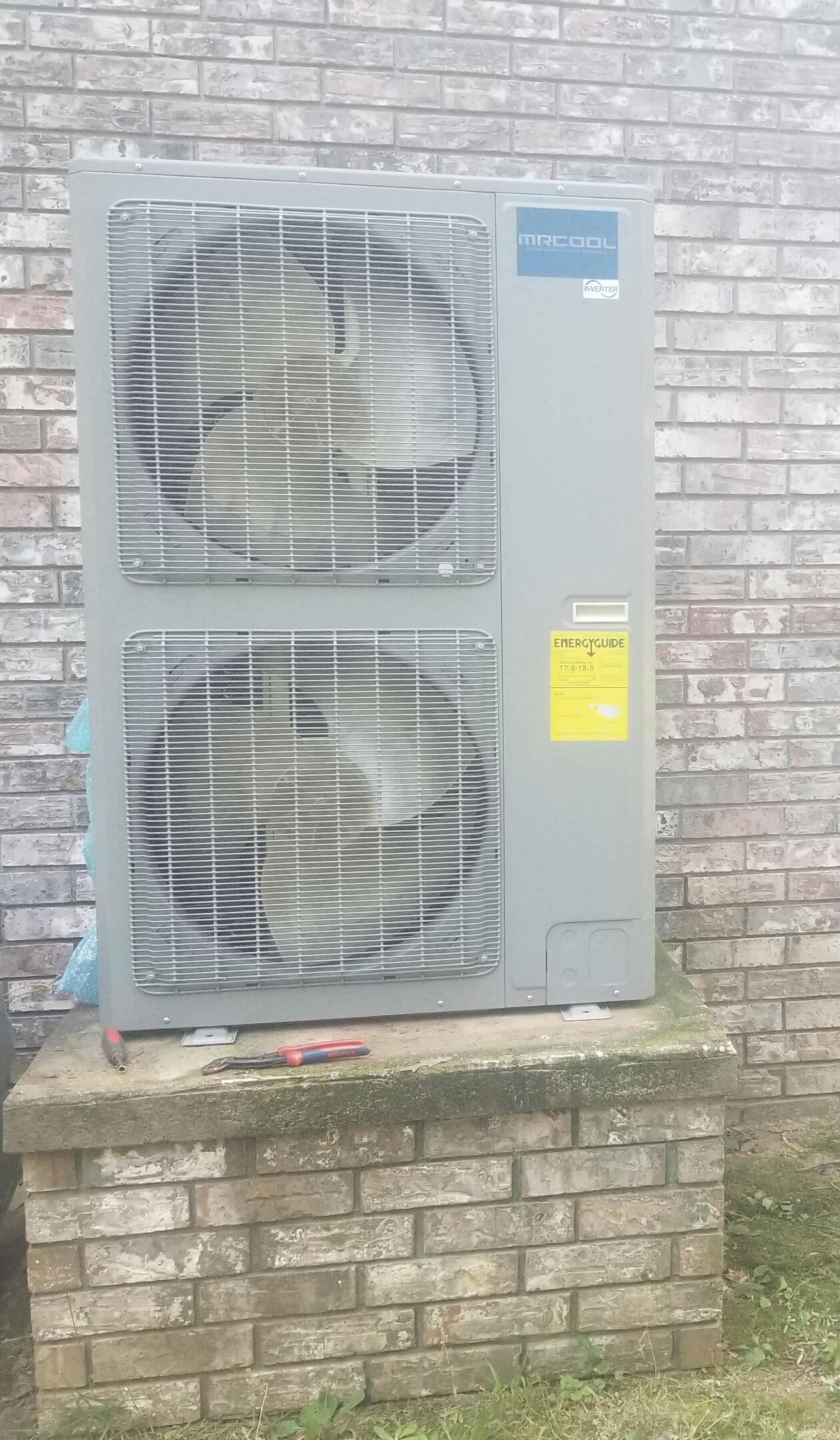

Very nice unit, very simple setup for adding to my other air handler with No issues. Ramp up and running was much less amp/power draw then my old system. Only problem I've had was can get it to work with my Nest thermostat even though its said to work. Contacted an AC guy to come figure it out and with No luck had to use old style thermostat. Over all very happy with this unit even on the short term of using thus far and hope to get as many years from this as I did my old system.
