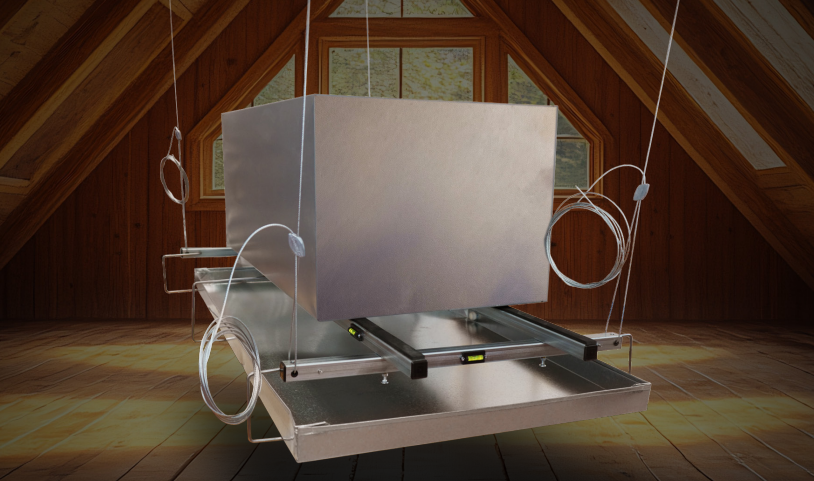

• RAD REH66 HVAC equipment hanger shown supporting a horizontal air handler and secondary drain pan
  • RectorSeal RAD REH66 66 inch universal HVAC equipment hanger with suspension cables

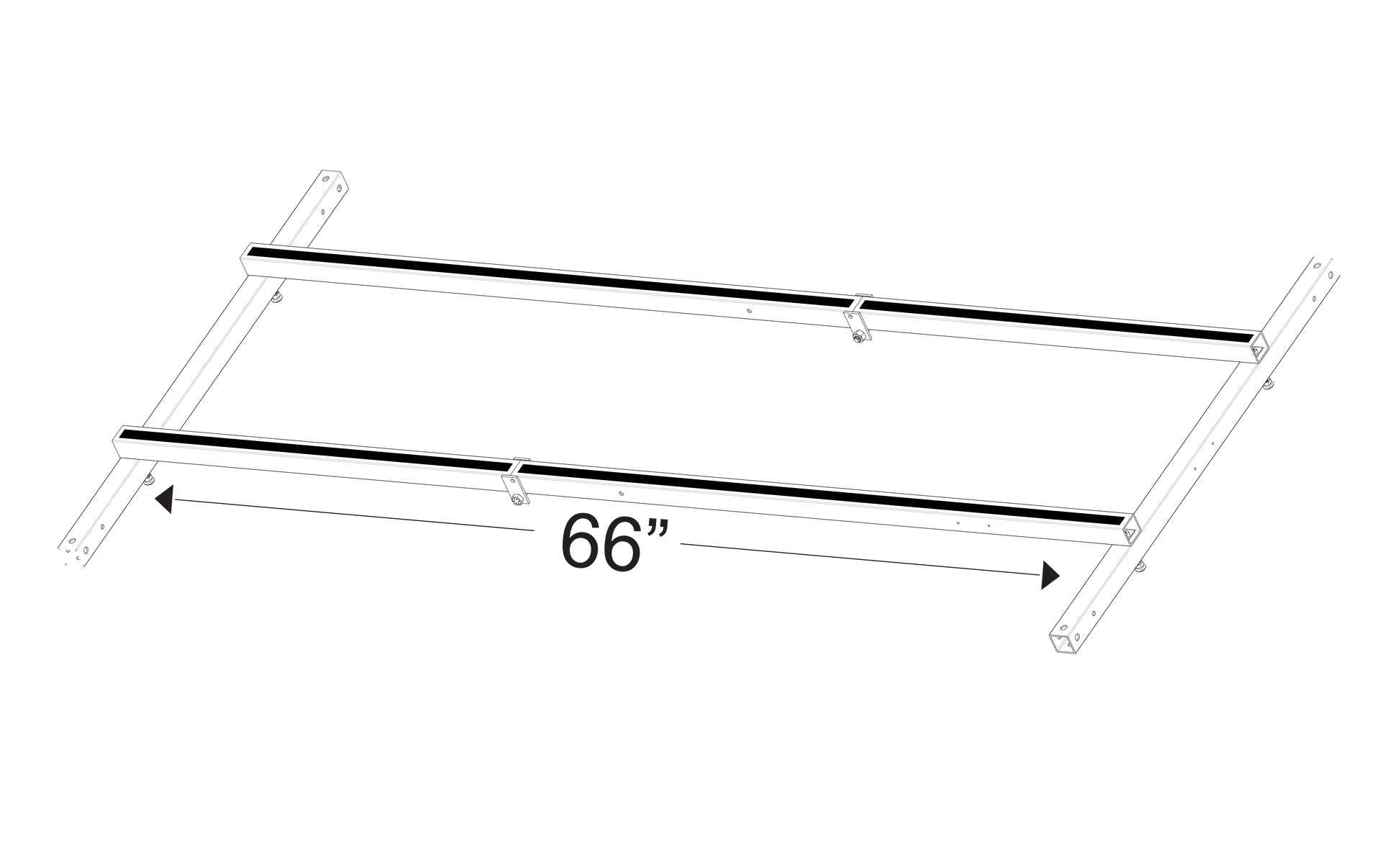

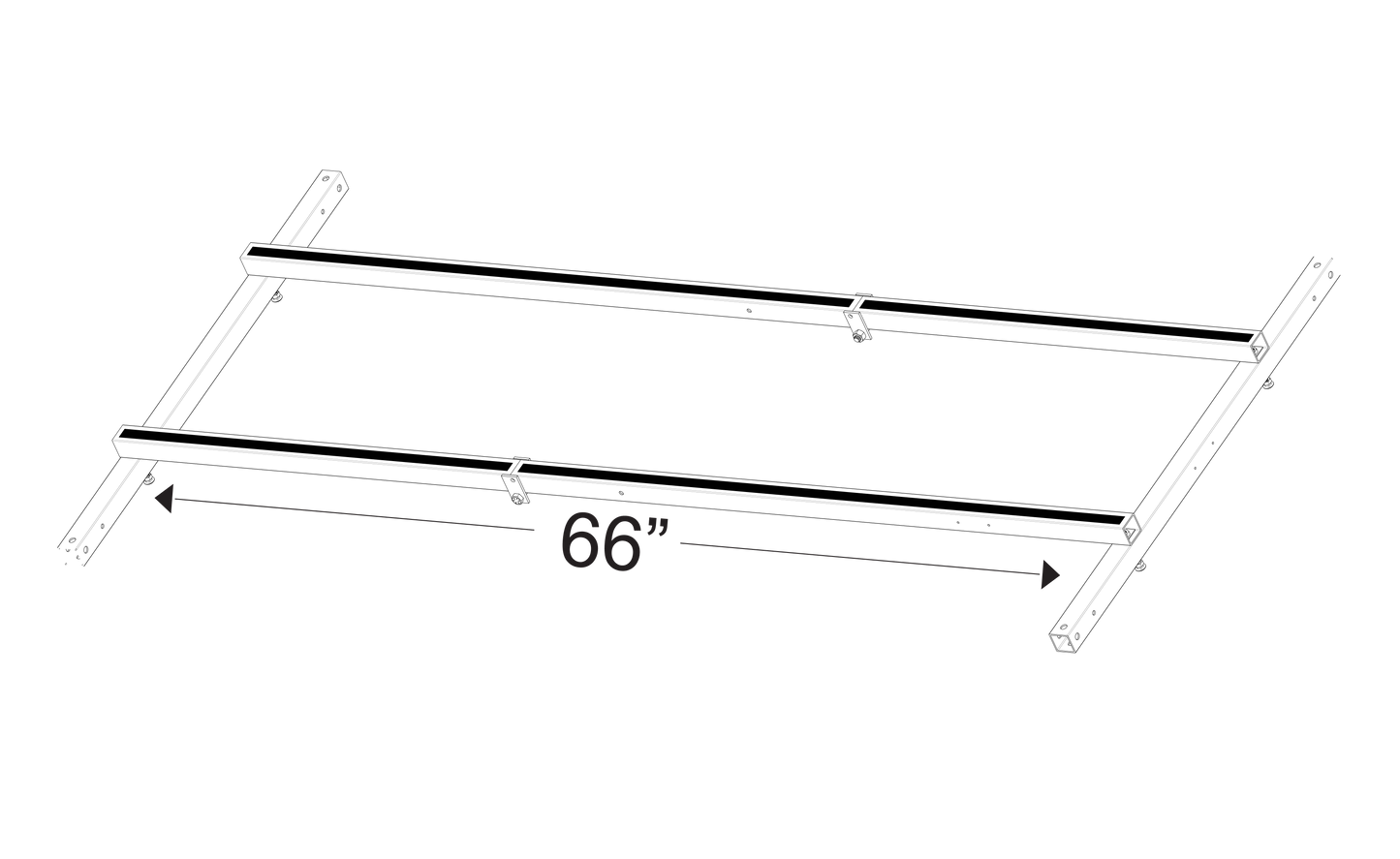

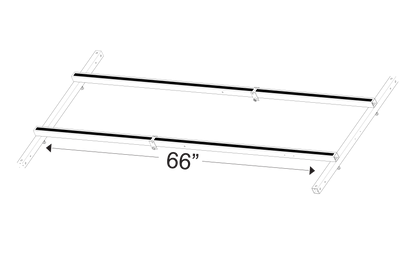

  • RAD REH66 air handler equipment hanger 66 inch dimensional view
1 3
Authorized Dealer

RECTORSEAL

RAD REH66 66" Universal HVAC Equipment Hanger

RAD REH66 66" Universal HVAC Equipment Hanger

SKUREH66

TypeHVAC Equipment Hanger

$329.95
$329.95 $389.99
You Save: $60.04
SALE Sold out
Shipping calculated at checkout.
In stock
Only 6 left
Free delivery*
Ships in 1–2 business days
Estimated arrival: Aug 22 – Aug 24
Based on order date & typical delivery times
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

Call Us Chat Now Design Your Own Mini Split Tool

PRODUCT DESCRIPTION

The RAD REH66 66" HVAC Equipment Hanger is a heavy-duty suspended equipment mounting system designed to support air handlers, furnace and coil combinations, and other compatible HVAC equipment weighing up to 400 lbs. Manufactured by RectorSeal, the REH66 provides an adjustable, professional alternative to fabricating an HVAC equipment support system on the job site.

Designed for both residential and commercial HVAC installations, the REH66 features an adjustable cross-support system that extends from 55" to 66", allowing the hanger to accommodate a range of equipment dimensions and installation requirements.

The system includes suspension hardware, pre-installed levels, anti-vibration foam, and dedicated drain pan hangers. The REH66 can support equipment up to a 5-ton air handler or furnace and coil combination, provided the installed equipment does not exceed the hanger's 400 lb weight rating.

Key Features

  • Up to 400 lb suspension capacity
  • Supports up to a 5-ton air handler or furnace and coil system within the rated weight capacity
  • Adjustable from 55" to 66" for flexible equipment fitment
  • Designed for residential and commercial HVAC applications
  • One-person setup design: unfold, lock, and hang
  • Pre-installed levels on each side simplify leveling
  • Anti-vibration foam helps reduce equipment vibration and operating noise
  • Galvanized coating for increased service life
  • Includes #3 Gripple 15 ft. suspension cables
  • 3/8" eye bolt provided at each corner
  • Compatible with secondary drain pans up to 34" wide
  • Drain pan hangers included
  • Compact folding design for easier transport to the job site
  • Meets California hanging advisements
  • Patent pending
    • PLEASE NOTE: This listing is for the RAD REH66 HVAC Equipment Hanger only. Secondary condensate drain pan, air handler, furnace, coil, and other HVAC equipment shown in product images are not included and are sold separately. Drain pan support hangers are included with the REH66.

RAD REH66 Specifications

Specification Details
Manufacturer RectorSeal
Brand / Series RAD Equipment Mounting Solutions
Model / Product Number REH66
Product Type Universal HVAC Equipment Hanger
Nominal Unit Length 66"
Cross-Support Adjustment 55" to 66"
Maximum Suspension Load 400 lbs
Equipment Capacity Up to 5-ton air handler or furnace & coil combination within 400 lb weight limit
Maximum Drain Pan Width Up to 34"
Suspension Cable #3 Gripple, 15 ft.
Corner Connection 3/8" Eye Bolt
Finish Galvanized Coating
Integrated Levels Yes – Pre-Installed on Each Side
Anti-Vibration Foam Yes
Drain Pan Hangers Included
Drain Pan Sold Separately

Suspended HVAC Equipment Support

The RAD REH66 is designed to suspend compatible HVAC equipment from an appropriate overhead structure rather than supporting the equipment directly from an attic floor or platform.

This makes the hanger particularly useful for horizontal air handlers, attic HVAC systems, furnace and coil combinations, and other suspended HVAC installations where a secure equipment mounting system is required.

With a maximum working load of 400 lbs, the REH66 can support HVAC equipment up to a 5-ton air handler or furnace and coil combination, provided the total supported weight remains within the manufacturer's rated capacity.

Adjustable from 55" to 66"

The REH66 uses an adjustable cross-support design that can be extended from approximately 55" to 66". This allows installers to adapt the hanger to different HVAC equipment dimensions rather than fabricating a fixed support frame for every installation.

Once positioned for the equipment, the hanger provides a stable support structure for the HVAC cabinet while allowing a compatible secondary condensate drain pan to be installed beneath the equipment.

Built for Faster HVAC Installation

The RAD Equipment Hanger is designed around a simple installation concept:

Unfold. Lock. Hang.

The folding frame makes the hanger easier to transport and carry to the installation location. Once unfolded, a hinge pin secures and locks the hanger into position.

Pre-installed levels on each side help installers quickly verify that the equipment support is properly leveled without repeatedly placing and removing a separate level during installation.

Integrated Suspension System

The REH66 includes the components required for its cable-based suspension system, including #3 Gripple cables measuring 15 ft. long and 3/8" eye bolts at each corner.

This integrated suspension design reduces the amount of equipment-support hardware that must be sourced separately and helps create a cleaner, more consistent suspended HVAC installation.

Anti-Vibration Equipment Support

HVAC equipment can transfer compressor, blower, and motor vibration into its supporting structure. In suspended installations, that vibration can contribute to unwanted operational noise.

The RAD REH66 incorporates anti-vibration foam at the equipment support surfaces to help isolate the HVAC cabinet and reduce vibration transfer during normal equipment operation.

Secondary Condensate Drain Pan Support

The REH66 is designed to work with secondary HVAC condensate drain pans up to 34" wide.

Drain pan hangers are included with the REH66, allowing a compatible secondary condensate pan to be positioned beneath the supported HVAC equipment.

This creates an integrated equipment mounting and condensate-management installation where the HVAC equipment is supported by the primary hanger while the secondary drain pan is independently positioned beneath it.

The secondary condensate drain pan is sold separately unless specifically included as part of a bundle.

Pair with a 30" x 62" Secondary Drain Pan

For compatible installations, the REH66 can be paired with a large secondary condensate drain pan such as the RectorSeal Titan Flex 96240 30" x 62" Secondary Condensate Drain Pan.

The Titan Flex 96240 provides a corrosion-resistant polymer secondary drain pan beneath the suspended HVAC equipment, while the RAD REH66 provides the structural equipment support.

Together, these components can form the foundation of a more complete suspended air handler and condensate-management system.

Residential and Commercial HVAC Applications

RectorSeal specifies the RAD Equipment Hanger for both residential and commercial applications.

Common applications may include:

  • Horizontal air handler installations
  • Attic HVAC equipment
  • Suspended air handlers
  • Heat pump air handlers
  • Furnace and evaporator coil combinations
  • Residential HVAC installations
  • Light commercial HVAC installations
  • Equipment installed above finished living spaces
  • Installations requiring secondary condensate pan support

What's Included?

The RAD REH66 equipment hanger system includes the hanger and its associated mounting and suspension components as supplied by the manufacturer, including:

  • RAD REH66 adjustable equipment hanger
  • #3 Gripple suspension cables
  • 15 ft. suspension cable length
  • 3/8" eye bolt connection at each corner
  • Pre-installed equipment levels
  • Anti-vibration foam
  • Drain pan hangers

Sold Separately

  • Secondary condensate drain pan
  • HVAC air handler, furnace, coil, or other equipment
  • Condensate overflow sensors and switches
  • Condensate drain fittings and accessories

Frequently Asked Questions

What is the RAD REH66?

The RAD REH66 is a 66" universal HVAC equipment hanger manufactured by RectorSeal. It is designed to suspend compatible residential and commercial HVAC equipment weighing up to 400 lbs.

How much weight can the RAD REH66 support?

The REH66 has a maximum suspension weight rating of 400 lbs.

What size HVAC system can the REH66 support?

RectorSeal states that the equipment hanger can support up to a 5-ton air handler or furnace and coil kit weighing up to 400 lbs. Equipment weight must remain within the hanger's 400 lb maximum suspension rating.

Is the RAD REH66 adjustable?

Yes. The REH66 cross support adjusts from approximately 55" to 66" to accommodate different equipment dimensions and installation requirements.

Can the REH66 support an air handler?

Yes. The REH66 is specifically designed to support compatible HVAC equipment, including air handlers weighing within the manufacturer's 400 lb maximum suspension rating.

Can the RAD Equipment Hanger be used in an attic?

The REH66 is designed for suspended HVAC equipment applications and is well suited to many attic installations when attached to an appropriate supporting structure and installed according to manufacturer requirements.

Does the REH66 include a condensate drain pan?

No. The secondary condensate drain pan is sold separately. Drain pan hangers are included with the REH66.

What size condensate drain pan fits the REH66?

RectorSeal specifies that the RAD Equipment Hanger accommodates secondary drain pans up to 34" wide. Always verify both the drain pan and HVAC equipment dimensions before installation.

Does the REH66 include suspension cables?

Yes. The system includes #3 Gripple suspension cables measuring 15 ft. long with a 3/8" eye bolt at each corner.

Does the RAD REH66 have built-in levels?

Yes. Levels are pre-installed on each side to make leveling the hanger easier during installation.

Does the REH66 help reduce HVAC vibration?

The equipment support incorporates anti-vibration foam designed to help reduce vibration transfer and promote quieter equipment operation.

Can I use a Titan Flex 30" x 62" pan with the REH66?

The REH66 accommodates drain pans up to 34" wide, making the RectorSeal Titan Flex 96240 30" x 62" Secondary Condensate Drain Pan a potential pairing for appropriately sized installations. Always verify HVAC equipment, pan, and installation dimensions before ordering.

A Complete HVAC Equipment Support Solution

The RAD REH66 66" Universal HVAC Equipment Hanger combines an adjustable equipment support frame, integrated suspension hardware, anti-vibration protection, built-in leveling, and secondary drain pan support into one professional HVAC mounting solution.

For installations requiring both suspended equipment support and condensate overflow protection, pair the REH66 with an appropriately sized secondary drain pan and condensate overflow protection system to create a more complete HVAC equipment mounting and condensate-management solution.
