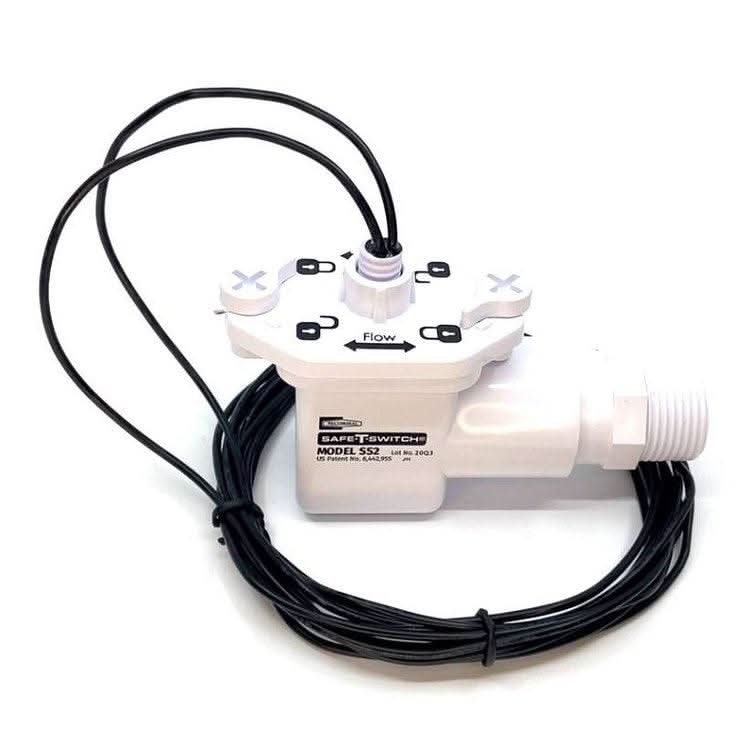

Rectorseal 97087 Safe-T-Switch SS2 Condensate Overflow Switch

Product Description

The Rectorseal Safe-T-Switch Model 97087 is a condensate overflow switch designed for use with primary drain pans. It automatically detects clogged A/C condensate drains and shuts off the system to prevent water damage. The switch is installed on the auxiliary outlet of the primary drain pan using an included three-quarter inch adapter. Float sensitivity can be adjusted easily without removing the cap. This switch is a vital component for HVAC systems to ensure proper drainage and prevent overflow.

• Condensate overflow switch

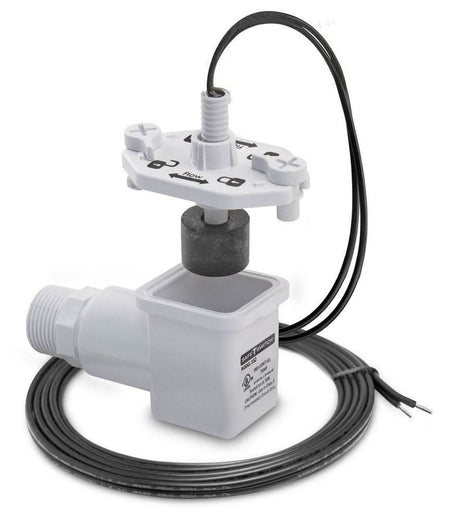

• Adjustable ratcheting float level
• Magnetic reed switch

Product Highlights

Detects and prevents water damage from clogged drains.

Product Information

Standard Information

• Brand: Rectorseal
• MPN: 97087

Technical Specifications

• Voltage Rating: 24VAC
• Ampere Rating: 1.25A
• Material: Plastic
• Dimensions: Length: 5.5 inches, Width: 2 inches, Height: 2.5 inches
• Cable Length: 6 feet
• Wire Size: 18 AWG
• Model No: SS2
• Application: For Primary Drain Pan Auxiliary Outlet
