If you manage a warehouse, manufacturing facility, gym, agricultural building, or distribution center, airflow is not optional. Poor air circulation leads to heat buildup, humidity issues, higher HVAC costs, and uncomfortable working conditions.
That’s where HVLS fans (High Volume Low Speed fans) come in.
In this guide, we’ll explain:
- What an HVLS fan is
- How industrial HVLS ceiling fans work
- What size HVLS fan you need
- Energy efficiency and operating costs
- Installation considerations
- How MRCOOL 16 ft and 24 ft HVLS fans compare in real-world applications

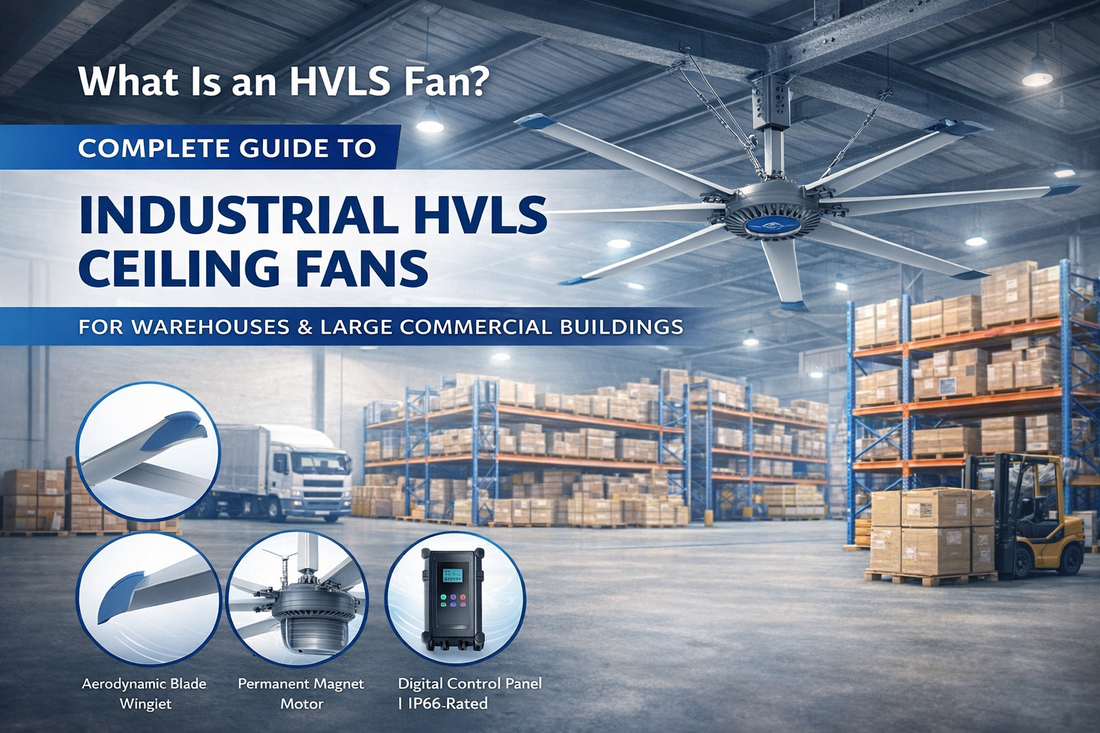

What Is an HVLS Fan?
An HVLS fan (High Volume Low Speed fan) is a large-diameter industrial ceiling fan designed to move massive volumes of air at low rotational speeds.
Unlike small high-speed industrial fans that create localized airflow, HVLS fans:
- Create a large column of moving air
- Improve overall building circulation
- Reduce heat stratification
- Increase occupant comfort
- Lower energy consumption
The MRCOOL® Industrial HVLS Fan is designed specifically for energy savings and improved airflow in large open environments
How Does an Industrial HVLS Fan Work?
HVLS ceiling fans operate at low RPM but use large blade spans to move high volumes of air.
For example:
- The 16 ft model rotates at 80 RPM
- The 24 ft model rotates at 60 RPM
Because of the large blade diameter:
- 16 ft fan produces 10,000 m³/min of airflow
- 24 ft fan produces 15,500 m³/min of airflow
Instead of creating high-velocity wind, the fan generates a slow-moving, uniform air column that spreads horizontally across the floor.
In Summer:
- Creates a wind-chill effect
- Reduces hot air pockets
- Improves comfort without over-relying on air conditioning
In Winter:
- Destratifies warm air trapped near the ceiling
- Pushes heat back down into the occupied zone
- Reduces heating costs
That’s why HVLS fans are widely used in industrial plants, logistics warehouses, gyms, and exhibition halls
What Size HVLS Fan Do I Need?
Choosing the correct diameter depends on your square footage and ceiling height.
MRCOOL 16 Ft HVLS Fan (MCFAN16PBGR)
- Diameter: 16 ft (5m)
- Air Volume: 10,000 m³/min
- Noise Level: 38 dB(A)
- Coverage Area: 1,640 sq ft (500 m²)
Ideal for:
- Smaller warehouses
- Auto shops
- Farm buildings
- Workshops
- Commercial garages
MRCOOL 24 Ft HVLS Fan (MCFAN24XBGR)
- Diameter: 24 ft (7.3m)
- Air Volume: 15,500 m³/min
- Noise Level: 38 dB(A)
- Coverage Area: 5,577 sq ft (1,700 m²)
Ideal for:
- Large warehouses
- Distribution centers
- Aircraft hangars
- Manufacturing facilities
- Gymnasiums
If you’re searching for:
“HVLS fan for 5000 sq ft building”
“24 ft warehouse ceiling fan”
“Large industrial airflow solution”
The 24 ft model is designed for that scale.
Energy Efficiency & Operating Cost
The MRCOOL Industrial HVLS Fan uses a Permanent Magnetic Synchronous Motor (PMSM)
This motor design provides:
- High efficiency
- Low noise (38 dB(A))
- Reduced maintenance
- Variable frequency speed control
Power consumption:
- 16 ft model: 0.75 kW
- 24 ft model: 1.5 kW
Compared to running multiple high-speed industrial fans or overusing HVAC systems, HVLS fans offer a cost-effective airflow solution for large commercial spaces.
Safety & Durability in Industrial Environments
Industrial ceiling fans must meet structural and safety requirements.
The MRCOOL HVLS system includes:
- Reinforced magnesium alloy blades
- Integrated motor bracket
- Anti-falling expansion sleeve
- Steel wire safety rope
- Electrical overload protection
The installation manual specifies that ceiling attachment must withstand four times the weight of the fan
This is not a decorative ceiling fan. It’s commercial-grade airflow infrastructure.
Installation Requirements for Industrial HVLS Fans
Both models operate on:
- 1 Phase 220–240V
- 50/60 Hz
Mounting options include:
- I-beam
- Square steel
- Concrete structure
The control system features:
- Push-button speed control
- Digital display
- Electrical protection
- IP66 rated enclosure
Professional installation is strongly recommended for commercial environments.
Where Are HVLS Fans Commonly Used?
Industrial HVLS ceiling fans are commonly installed in:
- Warehouses
- Distribution centers
- Manufacturing plants
- Agricultural buildings
- Exhibition halls
- Gyms and fitness centers
Any large open structure with high ceilings benefits from uniform air circulation.
How Do MRCOOL HVLS Fans Compare to Big Ass Fans®?
Many buyers researching industrial HVLS fans compare options to premium brands like Big Ass Fans®.
Both systems provide:
- Large-diameter blade designs
- High volume low speed airflow
- Energy-efficient motor technology
- Commercial warehouse applications
MRCOOL HVLS fans deliver:
- 16 ft and 24 ft diameter options
- Up to 5,577 sq ft coverage
- Permanent magnetic motor design
- Quiet 38 dB(A) operation
- Competitive commercial pricing
For facilities evaluating a cost-effective alternative for warehouse air circulation, MRCOOL provides comparable airflow performance focused on energy savings and industrial durability.
Final Thoughts: Is an HVLS Fan Worth It?
If you manage a large commercial or industrial space, an HVLS ceiling fan is not a luxury — it’s a long-term operational efficiency decision.
By improving airflow, reducing HVAC strain, and creating consistent comfort across large square footage, industrial HVLS fans:
- Improve worker productivity
- Lower heating and cooling costs
- Reduce hot and cold zones
- Enhance overall building performance
For facilities needing coverage between 1,600 and 5,500+ square feet, the MRCOOL 16 ft and 24 ft Industrial HVLS Fans provide a scalable airflow solution built for commercial environments.
