If you’re installing or upgrading a MRCOOL HVAC system, one detail matters more than most people realize: furnace cabinet size.
Get this wrong, and what should be a straightforward install can turn into cabinet mismatch issues, airflow problems, extra labor, and custom sheet metal fabrication. Get it right, and your system comes together with a cleaner, more professional fit.
This guide explains the difference between A, B, C, and D furnace cabinet sizes, how those widths relate to system applications, and which MRCOOL coil flange adapter matches each one.
What Is a Furnace Cabinet Size?
Furnace cabinet size refers to the physical width of the furnace cabinet, not the heating or cooling output by itself. In MRCOOL systems, cabinet width is one of the most important measurements to verify when pairing a furnace with a cased evaporator coil and the proper flange adapter.
For the current MRCOOL flange lineup, the cabinet sizes are:
- A Cabinet = 14.5 inches
- B Cabinet = 17.5 inches
- C Cabinet = 21 inches
- D Cabinet = 24.5 inches
These width designations matter because the flange must match the furnace cabinet correctly in order to create a proper transition between the evaporator coil and furnace.
Why Furnace Cabinet Size Matters
When people shop for a coil flange, they often focus only on tonnage. That matters, but cabinet width is the real key to proper fitment.
If the flange size is wrong, you can run into several install issues, including:
- Poor cabinet alignment
- Air leakage at the connection point
- Reduced airflow performance
- Messy-looking transitions
- Extra labor time during installation
- The need for custom sheet metal work
A properly sized flange helps create a cleaner, more secure, and more airtight connection between the furnace and cased evaporator coil.
What Is a Coil Flange for MRCOOL HVAC?
A coil flange is the connection piece used to join a cased evaporator coil to a furnace cabinet. It helps bridge the two components with a more precise transition, improving fitment and supporting cleaner airflow.
For MRCOOL systems, these flange adapters are designed to simplify installation and reduce the need for field-fabricated transitions. They are especially important when pairing new MRCOOL furnaces with matching evaporator coils in bundled or separately purchased system components.
Are MRCOOL Coil Flanges Universal?
No. MRCOOL coil flanges are designed specifically for MRCOOL furnaces. They are not universal adapters and are not intended for use with third-party furnace brands.
Using a MRCOOL flange with the correct MRCOOL equipment helps preserve intended cabinet alignment, fitment, and sealing performance.

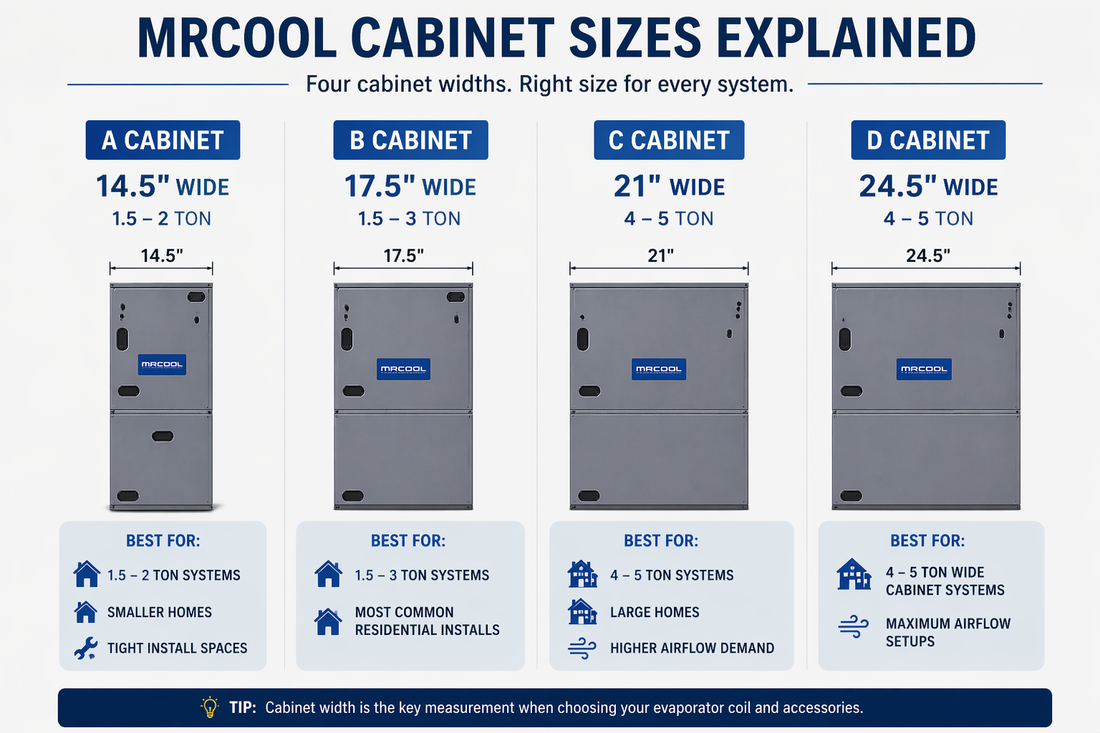

Understanding MRCOOL Cabinet Sizes
A Cabinet (14.5" Wide)
The A cabinet is the narrowest cabinet size in this lineup at 14.5 inches wide. It is commonly used for:
- 1.5 to 2 ton systems
- Smaller homes
- Tighter install spaces
If your MRCOOL furnace has an A-size cabinet, the recommended flange is:
MCMP1824A-F
This flange is designed for 1.5-ton to 2-ton evaporator coils and is the correct option for 14.5-inch cabinet applications.
B Cabinet (17.5" Wide)
The B cabinet measures 17.5 inches wide and is one of the most common residential cabinet sizes.
It is typically best for:
- 1.5 to 3 ton systems
- Many standard residential HVAC installs
If your furnace is a B cabinet, the recommended flange is:
MCMP1836B-F
This model is designed for 1.5-ton to 3-ton evaporator coils and provides the correct transition for 17.5-inch cabinet setups.
C Cabinet (21" Wide)
The C cabinet is 21 inches wide and is intended for larger-capacity systems that require more airflow.
It is commonly best for:
- 4 to 5 ton systems
- Larger homes
- Applications with higher airflow demand
If your MRCOOL furnace uses a C cabinet, the recommended flange is:
MCMP4860C-F
This flange fits 4-ton to 5-ton evaporator coils and is designed specifically for 21-inch cabinet applications.
D Cabinet (24.5" Wide)
The D cabinet is the widest option in this lineup at 24.5 inches wide.
It is best suited for:
- 4 to 5 ton wide cabinet systems
- Maximum airflow setups
- Larger equipment requiring an extra-wide fit
If your MRCOOL furnace is a D cabinet, the recommended flange is:
MCMP4860D-F
This flange is designed for 4-ton to 5-ton evaporator coils and is intended for 24.5-inch extra-wide cabinet systems.
MRCOOL Cabinet Size and Flange Adapter Chart
| Cabinet Size | Width | Typical System Range | Recommended Flange |
|---|---|---|---|
| A Cabinet | 14.5" | 1.5–2 Tons | MCMP1824A-F |
| B Cabinet | 17.5" | 1.5–3 Tons | MCMP1836B-F |
| C Cabinet | 21" | 4–5 Tons | MCMP4860C-F |
| D Cabinet | 24.5" | 4–5 Tons | MCMP4860D-F |
How Do I Know What Size Coil Flange I Need?
Before ordering a coil flange, verify these three things:
- Your furnace cabinet width
- Your evaporator coil tonnage
- Whether the flange is made for your equipment brand
For MRCOOL systems, the most important step is confirming the cabinet size first. Once you know whether your furnace is an A, B, C, or D cabinet, choosing the correct flange becomes much easier.
What Happens If You Use the Wrong Flange Size?
Using the wrong flange size can create problems both during installation and after the system is running.
Common issues include:
- Poor fit between the coil and furnace
- Air leaks that reduce efficiency
- Reduced airflow performance
- Extra labor for modifications
- A less professional-looking finished install
Even if the mismatch seems minor, cabinet width differences can create unnecessary complications. Matching the flange to the cabinet size helps prevent those issues from the start.
Does the Right Coil Flange Improve Airflow?
A properly sized coil flange helps support better system performance by creating a more consistent transition between the cased evaporator coil and furnace cabinet.
While the flange itself is not a blower component, correct sizing helps reduce air leakage and maintain a cleaner airflow path through the system. That means better fitment, fewer transition issues, and a more finished installation overall.
Do You Need Custom Sheet Metal If You Use the Correct Flange?
In many cases, using the correct MRCOOL flange helps eliminate the need for custom sheet metal fabrication at that connection point.
That can save install time, reduce labor, and provide a cleaner finished result. For installers and homeowners alike, that is one of the biggest practical benefits of using the correct flange adapter instead of trying to force a mismatch.
Is the Furnace or Coil Included With the Flange?
No. The flange is an installation accessory only.
The furnace and cased evaporator coil are separate components and must be purchased separately unless clearly included in a specific bundled package.
Who Should Buy a Coil Flange?
Coil flanges are ideal for:
- HVAC installers
- Contractors
- Homeowners replacing matched system components
- Anyone installing a compatible MRCOOL furnace and cased coil setup
If you are pairing a MRCOOL furnace with a compatible cased evaporator coil, the correct flange adapter can help make that install cleaner and easier.
Best Way to Make Sure You Order the Right MRCOOL Flange
Before you place your order, confirm the following:
- Your MRCOOL furnace cabinet width
- Your evaporator coil tonnage
- The exact flange model for your install
If those three details match, you are in good shape.
Final Thoughts on MRCOOL Cabinet Sizes
When it comes to choosing the right MRCOOL coil flange, the most important detail is not just tonnage. It is cabinet width.
Understanding the difference between A, B, C, and D cabinet sizes helps you avoid fitment problems, air leaks, wasted install time, and unnecessary fabrication work.
For a quick reference:
- A Cabinet (14.5") = MCMP1824A-F
- B Cabinet (17.5") = MCMP1836B-F
- C Cabinet (21") = MCMP4860C-F
- D Cabinet (24.5") = MCMP4860D-F
If you are building a MRCOOL matched system, checking cabinet size before ordering is one of the simplest ways to make sure everything fits correctly the first time.
Still Not Sure Which Flange Fits Your System?
If you are unsure which MRCOOL flange adapter matches your furnace and evaporator coil, verify your cabinet width and system tonnage before ordering. That small step can save a surprising amount of hassle later, which is rare in HVAC and even rarer on the internet.
