The Engineering Behind MRCOOL DIY Quick Connect Valves
To understand why MRCOOL DIY systems work, you have to understand what these fittings actually are.
They are not simple threaded couplings.
They are precision-engineered, self-sealing refrigeration service valves.
And yes — they are expensive components. For a reason.
What These Connectors Really Are
Each MRCOOL DIY pre-charged line set uses:
- A factory-sealed refrigerant line
- A spring-loaded internal valve core
- Dual O-ring compression seals
- Precision-machined mating surfaces
- Tight thread tolerances

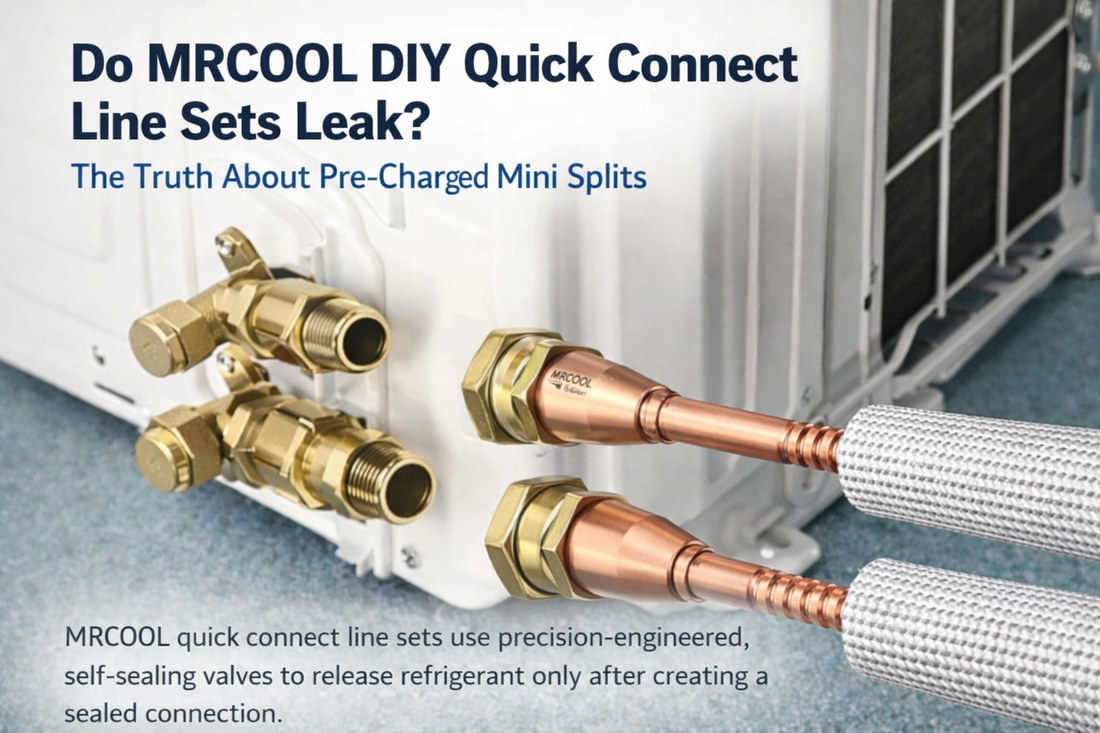

When you look at the connector, what you’re seeing is a mechanical sequence designed to control refrigerant release with zero field charging required.
These fittings are the backbone of the entire DIY platform.
What Happens When You Tighten the Connection
Here’s the sequence that occurs when properly installed:
- The threaded body begins to engage.
- The connection seats and compresses the O-ring seals.
- Ambient air is displaced out of the coupling cavity.
- Once fully seated and torqued, the internal valve core is mechanically depressed.
- The sealed refrigerant charge is released into the system.
- The connection remains mechanically locked and sealed under pressure.
The critical part:
The refrigerant is not released until the seal is formed.
That is by design.
This is what differentiates true pre-charged systems from improvised “DIY attempts” by other manufacturers.
Why Other DIY Attempts Failed
Several manufacturers over the years attempted “DIY-style” connections.
Many experienced:
- Poor thread tolerances
- Inconsistent valve core engagement
- Inadequate sealing compression
- Inferior O-ring materials
- Valve designs that allowed micro-leaks under vibration
Most of those systems quietly disappeared from the market.
MRCOOL owns the patent for its DIY quick connect technology and refined the valve design over multiple generations.
That does not mean leaks are impossible.
It means the engineering has been refined to make failures extremely rare when installed properly.
Mass-produced mechanical systems can always have occasional defects — but the design itself is not inherently flawed.
The Tolerances Are Extremely Tight — And That’s Intentional
One thing customers immediately notice:
The fitment is tight.
Very tight.
That’s not a defect.
That’s what prevents leaks.
Everything must be properly aligned before threading:
- The threads must engage cleanly.
- The surfaces must mate evenly.
- The torque must be correct.
Cross-threading or forcing the connection will damage the threads.
And damaged threads equal sealing failure.
This is the number one installation-related issue we see:
User error from rushing the process.
The Two Most Common Causes of Leaks
After helping tens of thousands of customers across the USA size and install MRCOOL DIY systems, we’ve seen patterns.
The majority of leaks come from one of two scenarios:
1. Cross-Threading or Improper Installation
If the connection is:
- Not aligned properly
- Forced into place
- Over-tightened
- Under-tightened
- Installed without a torque wrench
You compromise the seal.
These valves are designed for precision installation.
Not brute force.
2. Kinking or Pinching the Line Set
This is often overlooked.
Refrigerant line sets — DIY or traditional — are soft copper.
They can be damaged by:
- Uncoiling too quickly
- Bending too sharply
- Stepping on the line
- Pinching during routing
A kinked line restricts flow and can weaken the copper wall.
That has nothing to do with quick connect technology.
That’s handling.
DIY or professional installation — copper line sets must be treated carefully.
Refrigerant Lines Are Delicate — Period
It’s important to say this clearly:
All refrigerant lines are vulnerable to physical damage.
Traditional HVAC systems can leak due to:
- Poor flares
- Improper brazing
- Over-tightened fittings
- Vibration stress
DIY quick connect systems remove brazing and field charging variables — but they still require careful installation.
HVAC is mechanical.
Mechanical systems require attention to detail.
Why Quick Connect Technology Exists
MRCOOL designed this system to:
Eliminate field vacuum pumping
Eliminate refrigerant handling
Reduce installation variables
Allow homeowners to legally install a heat pump
Maintain factory-controlled refrigerant charge
It’s not about replacing professionals.
It’s about removing complexity.
When installed correctly, these valves perform exactly as engineered.
Real-World Experience Matters
Our business has worked directly with MRCOOL DIY pre-charged systems nationwide.
We have helped tens of thousands of customers:
- Properly size their systems
- Install their line sets
- Route lines correctly
- Avoid common installation mistakes
The overwhelming majority of successful installs come down to one thing:
Taking your time.
Align the threads.
Use a torque wrench.
Uncoil lines carefully.
Follow the manual.
That’s it.
MRCOOL and the Shift in Residential HVAC
MRCOOL has been a genuine gamechanger in the residential and light commercial HVAC space.
For decades, HVAC installation operated in a tightly controlled environment. It was professional, specialized, and largely limited to licensed technicians. That model made sense when systems required:
- Field charging refrigerant
- Vacuum pumps
- Brazing
- Custom copper fabrication
- EPA certification
But it also created a closed ecosystem.
MRCOOL changed that — not by eliminating professionals, but by redesigning the system architecture itself.
By engineering factory pre-charged systems with self-sealing quick connect valves, MRCOOL removed several technical barriers that historically required specialized tools and refrigerant handling.
That opened the gate for capable homeowners.
That doesn’t mean HVAC is trivial.
And it certainly doesn’t mean every situation should be DIY.
There are absolutely cases where a licensed HVAC professional is the right choice:
- Complex ducted retrofits
- Multi-branch line fabrication
- Commercial-grade load balancing
- Major electrical upgrades
- Large-scale light commercial installs
But in the mini split realm — especially single-zone and properly designed multi-zone applications — the mechanical complexity is often far lower than people assume.
At its core, a ductless mini split system is:
- A sealed refrigeration circuit
- A power connection
- A communication cable
- Proper mounting and routing
The real barrier was refrigerant handling and vacuum evacuation.
MRCOOL redesigned around that barrier.
That’s the difference.
DIY Isn’t for Everyone — And That’s Okay
DIY mini splits are not for:
- People uncomfortable using basic tools
- People unwilling to read instructions
- People who rush mechanical work
- People who ignore torque specifications
They are for:
- Homeowners confident in light mechanical projects
- People who take their time
- People willing to follow installation steps carefully
HVAC isn’t rocket science — but it is mechanical.
And mechanical systems reward patience and precision.
The Bottom Line
MRCOOL DIY quick connect fittings are not gimmicks.
They are precision, self-sealing refrigeration valves engineered to:
- Seal before releasing refrigerant
- Maintain pressure integrity
- Simplify installation
They are not immune to user error.
But neither are traditional flare connections.
The difference is engineering control and installation discipline.
When properly installed, leaks are rare.
When rushed or mishandled, problems can occur — just like any mechanical HVAC connection.
MRCOOL didn’t eliminate the need for knowledge.
It engineered a system that reduces variables and makes properly executed installation accessible to more people.
That’s not a gimmick.
That’s design evolution.
