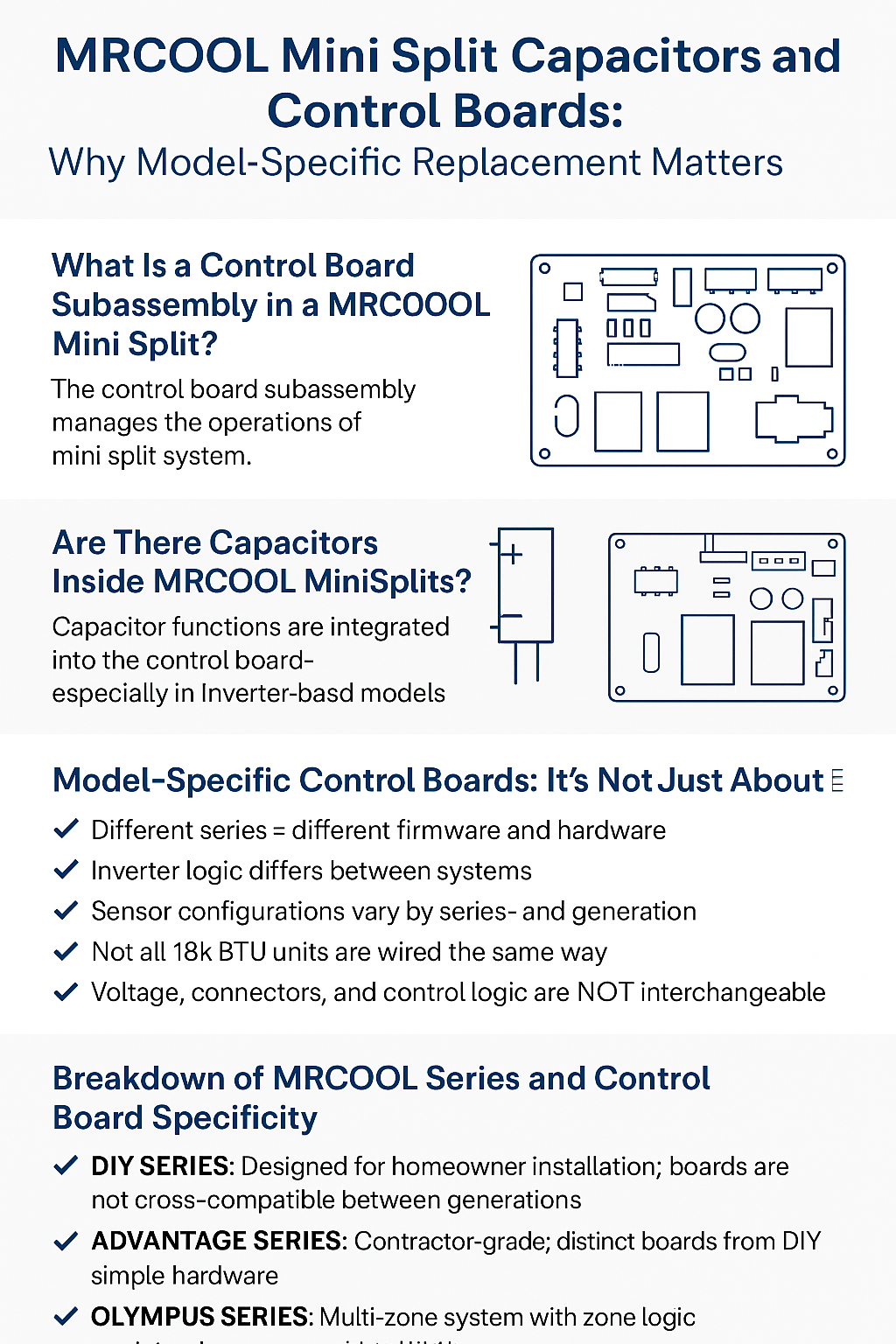

Infographic explaining MRCOOL mini split control board subassemblies and built-in capacitors, highlighting model-specific compatibility for DIY, Olympus, Advantage, EZPRO, and Energy Star series.

MRCOOL Mini Split Capacitors and Control Boards: Why Model-Specific Replacement Matters

Understanding MRCOOL Mini Split Capacitors and Control Board Subassemblies: What You Need to Know

When it comes to troubleshooting or repairing your MRCOOL mini split system, one of the most misunderstood components is the control board subassembly—often referred to as the "brain" of the system. Whether you’re a homeowner tackling DIY maintenance or a professional HVAC technician, knowing how this component works (and how it varies across models and series) is key to accurate diagnosis and proper replacement.

In this post, we’ll dive deep into the function of MRCOOL control boards, how capacitors are integrated, and why it’s critical to match control board replacements to the exact model, series, and generation—even if the BTU rating appears the same.

🧠 What Is a Control Board Subassembly in a MRCOOL Mini Split?

The control board subassembly in your MRCOOL mini split system is an electronic module responsible for managing and coordinating nearly every function of the system. It processes signals from the thermostat (or remote), sensors, and safety switches, and sends control signals to major components such as:

  • Compressor (inverter-driven in most models)

  • Fan motors (indoor and outdoor)

  • Reversing valve (for heat pump operation)

  • Expansion valves or stepper motors

  • Defrost cycle controls

  • Startup and shutdown sequences

This is a highly intelligent circuit board that constantly monitors data and ensures the system operates within safe and efficient parameters. It's a crucial component in both DIY systems and professionally installed MRCOOL systems like the Olympus or Advantage Series.

🔋 Are There Capacitors Inside MRCOOL Mini Splits?

Yes—but not in the way most HVAC techs are used to.

Unlike traditional HVAC systems that rely on external run capacitors or start capacitors for the compressor or fan motor, most MRCOOL mini split systems (especially inverter-based models) integrate the capacitor functionality directly into the control board subassembly.

Why is this important?

  • If a capacitor-related failure occurs, you can’t simply replace the capacitor.

  • The entire control board subassembly will usually need to be replaced.

  • DIYers and techs should never attempt to retrofit a capacitor onto these boards—it’s dangerous and will void the warranty.

🔄 Model-Specific Control Boards: It’s Not Just About BTUs

Here’s where many customers and even some techs go wrong: they assume that a 12,000 BTU condenser must use the same control board across all MRCOOL systems. That’s absolutely not true.

Control board subassemblies are model-specific, and here's why:

  1. Different series = different firmware and hardware

  2. Inverter logic differs between systems

  3. Sensor configurations vary by series and generation

  4. Not all 18k BTU units are wired the same way

  5. Voltage, connectors, and control logic are NOT interchangeable

Let’s look at the series breakdown.

🔍 Breakdown of MRCOOL Series and Control Board Specificity

✅ MRCOOL DIY Series (3rd, 4th, and 5th Gen)

  • These systems use pre-charged Quick Connect line sets and are intended for homeowner installation.

  • Control boards are highly specialized to handle DIY Quick Connect detection, error codes (like P4, HS, etc.), and Smart HVAC app integration.

  • Boards differ between generations, even at the same BTU size.

    • For example, a DIY-18-HP-C-230B and a DIY-18-HP-C-230C use different control boards, despite both being 18k units.

✅ MRCOOL Advantage Series

  • A value-driven, professionally installed system with standard flare connections.

  • Control boards are simpler than DIY but still model-specific.

  • Capacitor functions may be external or semi-integrated depending on the generation.

✅ MRCOOL Olympus Series (Multi-Zone & Single-Zone)

  • Olympus is a contractor-grade system with more complex multi-zone configurations.

  • Control boards must support zone logic, individual indoor unit control, and compressor ramping for multiple outputs.

  • Not interchangeable with DIY or Advantage Series boards, even if the BTU size is the same.

✅ EZPRO Series

  • Combines the simplicity of DIY with some professional-grade features.

  • Boards are engineered to work with EZ Snap Quick Connects, Smart HVAC integration, and simplified wiring.

  • These boards are not cross-compatible with DIY or Olympus systems.

✅ Energy Star Series

  • Systems designed to meet higher SEER and Energy Star certification, often with enhanced inverter logic and additional sensors.

  • Boards may include additional components or firmware to meet government efficiency requirements.

  • Again, even with the same tonnage, Energy Star boards are not universally compatible.

⚠️ Why You Must Match the Control Board to the Exact Model

Using the wrong board can lead to:

  • Immediate system failure or damage

  • Voided warranty

  • Incompatible sensor readings

  • Improper communication with indoor units

  • Dangerous electrical mismatches

Each board is assigned a specific part number, which should match your model's serial tag and manual. Even minor changes in connector style, firmware revision, or component layout can render a board unusable.

🔧 How to Identify the Correct Control Board for Your MRCOOL System

To ensure you’re ordering the correct control board:

  1. Find your unit’s full model number (e.g., DIY-24-HP-C-230C)

  2. Check your installation manual or parts breakdown

  3. Contact an authorized dealer (like MRCOOL DIY Direct) with your model info

  4. Never guess based on BTU size alone

🛑 What About Universal Compatibility?

There’s no such thing as a truly universal MRCOOL control board.

Even two boards that look physically identical can be wired differently internally or programmed with incompatible firmware. This is especially true across:

  • DIY vs Advantage vs Olympus

  • R-410A vs R-454B refrigerant models

  • Gen 3 vs Gen 4 vs Gen 5 systems

🧰 Final Thoughts: Know Before You Replace

If your MRCOOL mini split is displaying error codes, refusing to start, or behaving erratically, don’t automatically assume the issue is a failed capacitor. In most cases, especially with DIY and inverter-driven systems, it’s a control board failure, and the entire subassembly must be replaced.

When in doubt, consult with an expert or authorized MRCOOL dealer. At MRCOOL DIY Direct, we help customers daily to track down the exact replacement part for their model—no guesswork required.

📞 Need Help Finding the Right Control Board?

We’re MRCOOL experts, not just box movers. Contact us with your model number, and we’ll match you with the correct control board—fast.

✅ Accurate part lookup
✅ Fast shipping
✅ Expert support
✅ DIY-friendly guidance
