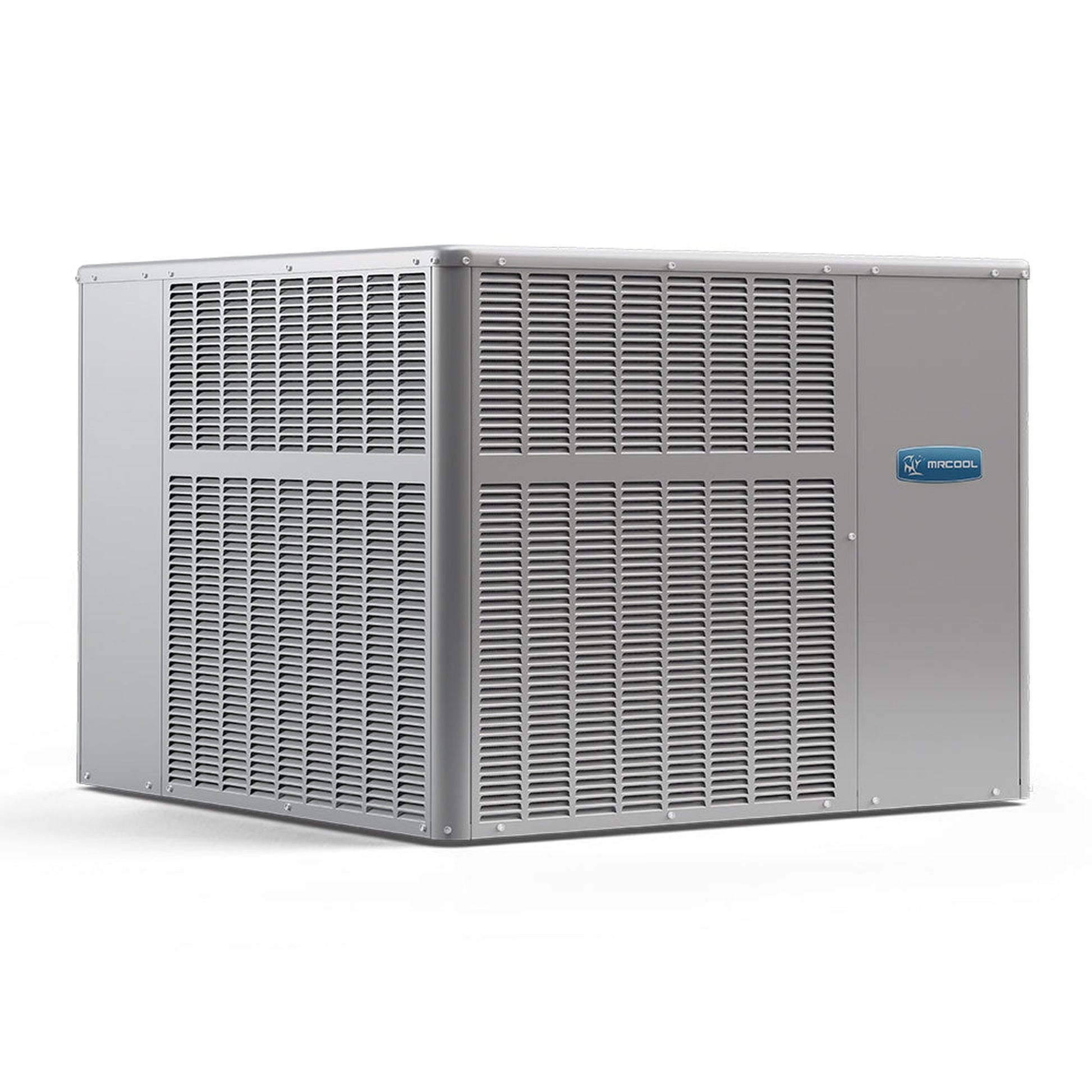

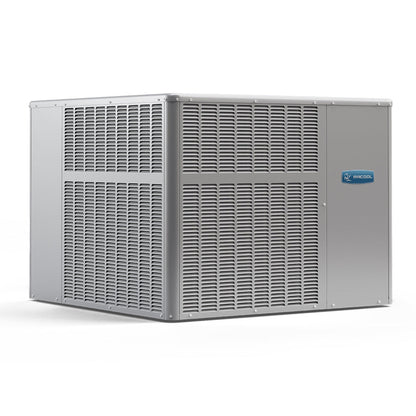

This is a brand new 2 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides 'cooling' (this is NOT a heat pump).
Key Features
-
Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
PRODUCT SPECIFICATIONS:
Product Dimensions |
46.8'W x 46.77'D x 36.82'H |
Product Weight |
308 lbs |
Unit Type |
Package AC
|
SEER |
14
|
EER |
11 |
CFM |
800
|
Tonnage |
5 |
Cooling Capacity |
22600
|
Voltage |
Requires a minimum of 208V-230V/60HZ/20A (please check your home meets this electrical requirement prior to purchase)
|
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
20
|
Min Circuit Ampacity |
14.4 |
Color |
Gray |
Rated Load |
8.6
|
Max Coverage Area |
1000
|
Refrigerant Type |
R-410A |
Refrigerant Volume |
72
|
Decibel Rating |
77
|
Min Ambient Heat |
0 |
Compressor Motor Type |
Single Stage
|
Condenser Fan Motor Type |
ECM |
Condenser Fan Motor HP |
1/6
|
Blower Motor Type |
ECM |
Blower Motor HP |
1/3
|
Blower Motor Speeds |
Multi-Speed |
Blower Motor RPM
|
430-820
|
Filter Type |
Replaceable |
Filter Size |
14 x 20
|
Metering Device |
TXV |
Auxiliary Heater |
Yes |
Auxiliary Heater Sizes |
5kw
|
Certifications |
ETL AHRI |
Warranty |
10-Year Parts Limited Warranty
|
Base Warranty |
5 year base limited parts warranty
|
