MRCOOL DIY Multi Zone 4th Gen 27K BTU Dual Zone Ductless Mini Split with Ceiling Cassettes (12K + 18K)
The MRCOOL DIY 4th Gen 27,000 BTU Dual Zone Mini Split System offers a perfect balance of energy efficiency and modern convenience. This system includes one 12,000 BTU ceiling cassette air handler, one 18,000 BTU ceiling cassette air handler, and a 27,000 BTU condenser. Designed for DIY installation, it eliminates the need for professional assistance, saving you time and money.
Key Features
1. Superior Energy Efficiency
-
Up to 22 SEER: Advanced efficiency for significant energy savings.
-
Gold Fin® Technology: Provides long-term corrosion resistance, ideal for humid or coastal environments.
-
Eco-Friendly Refrigerant: Utilizes R-410A refrigerant for environmentally conscious performance.
2. Innovative Ceiling Cassette Design
-
Low-Profile Installation: Recessd design fits between 16-inch joists, ideal for both retrofits and new builds.
-
Unobtrusive Comfort: Installs in the ceiling, leaving walls and floors clear.
3. Multi-Zone Performance
-
12K BTU Air Handler: Cools or heats up to 500 sq. ft..
-
18K BTU Air Handler: Cools or heats up to 750 sq. ft..
-
Total Flexibility: Mix and match air handler types (ceiling cassette and wall-mounted) in the same system.
4. DIY-Friendly Installation
-
Pre-Charged Quick Connect® Line Sets: Simplifies installation with no vacuuming required.
-
No-Vac® Coupler Compatibility: Allows line set extension to accommodate your setup needs.
-
Detailed Video Tutorials: Ensure easy, step-by-step guidance.
5. Smart Control Features
-
MRCOOL Smart HVAC App: Control the system remotely with your smartphone.
-
Voice Assistant Integration: Compatible with Amazon Alexa and Google Home for hands-free operation.
-
Built-In Diagnostics: Digital display alerts and troubleshooting codes keep you informed.
6. Comprehensive Warranty
-
Lifetime Compressor Warranty: Register for the MRCOOL Care Program for ultimate peace of mind.
-
Standard Coverage: Includes 7-year compressor and 5-year parts warranty.
Specifications
Condenser
-
Cooling/Heating Capacity: 27,000 BTU
-
Efficiency Ratings: SEER: 22 | EER: 12.5 | HSPF: 10.6/8.6
-
Operating Temperature Range:
- Cooling: 5°F ~ 122°F
- Heating: -13°F ~ 75.2°F
-
Voltage Requirements: 208-230V/60HZ/18-25A
-
Dimensions: 35.04"W x 13.46"D x 26.50"H
-
Noise Level: 59 dBA
-
Maximum Line Set Length: 98.42 ft.
-
Warranty: Limited Lifetime Compressor (with registration), 7-year compressor, 5-year parts
Ceiling Cassette Air Handlers
-
12K BTU Air Handler:
-
Coverage Area: Up to 500 sq. ft.
-
Modes: COOL, HEAT, AUTO, DRY, FAN-ONLY, SLEEP
-
Dimensions: 31.57"W x 7.44"D x 11.69"H
-
Warranty: 5-year parts
-
18K BTU Air Handler:
-
Coverage Area: Up to 750 sq. ft.
-
Modes: COOL, HEAT, AUTO, DRY, FAN-ONLY, SLEEP
-
Dimensions: 42.52"W x 8.90"D x 13.19"H
-
Warranty: 5-year parts

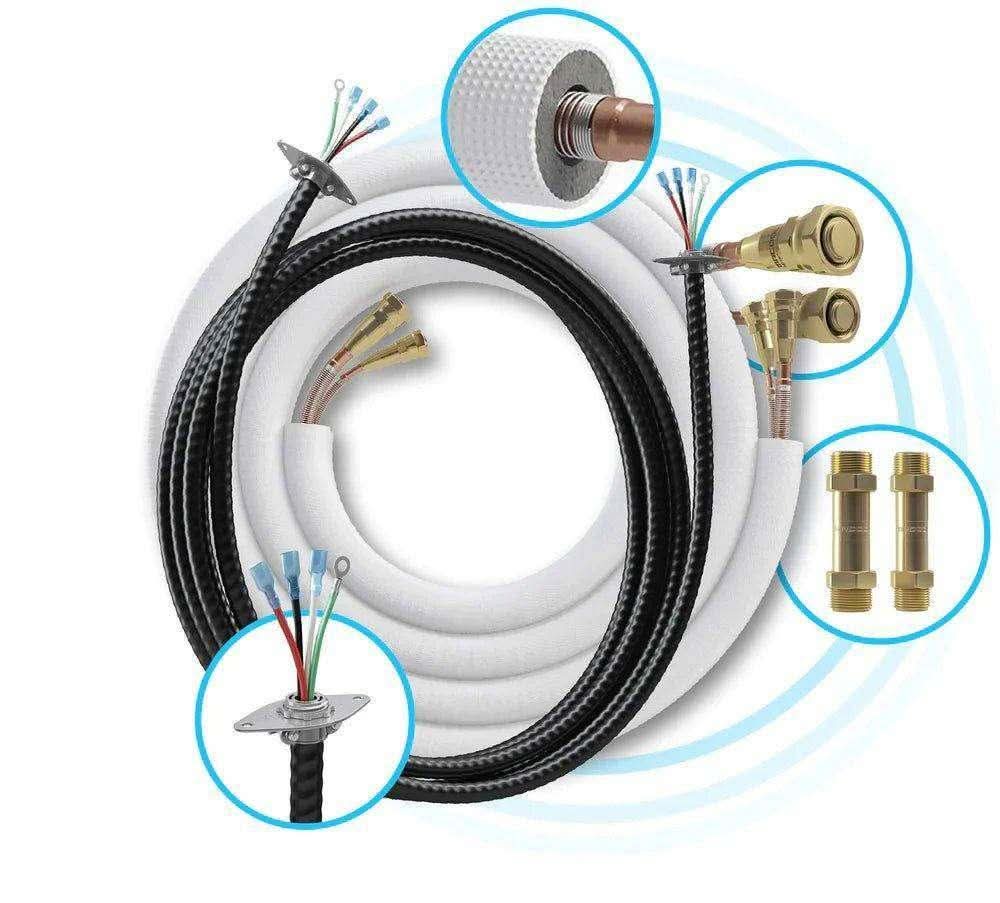

Pre-Charged Line Sets
-
Lengths Available: 16 ft., 25 ft., 35 ft., or 50 ft.
-
Refrigerant: Pre-charged with R-410A for quick and easy DIY installation.
Why Choose MRCOOL DIY Multi Zone 4th Gen 27K BTU?
-
Flexible Installation Options: Suitable for both new builds and retrofits.
-
Energy-Efficient Comfort: Lower utility bills without sacrificing performance.
-
DIY Savings: Install it yourself with easy-to-follow guides and videos.
-
Smart Technology: Stay connected and in control with advanced app and voice features.
-
Trusted Performance: Backed by industry-leading warranties and technical support.
Applications
-
Residential: Ideal for bedrooms, living rooms, or home offices.
-
Light Commercial: Perfect for small offices or retail spaces.
-
Renovations and New Construction: Designed to meet the needs of various projects.
Order Now
Experience the ease and efficiency of the MRCOOL DIY Multi Zone 4th Gen 27K BTU System (12K + 18K). Enjoy exceptional comfort, DIY convenience, and unmatched performance. Order today from MRCOOL DIY Direct!
